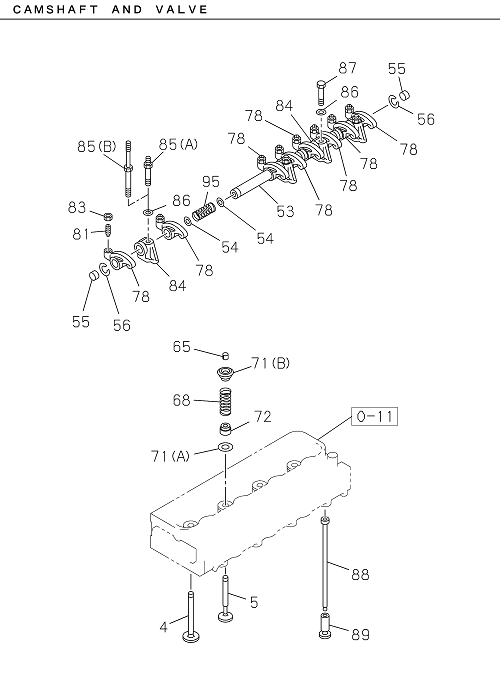

0-14 | CAMSHAFT AND VALVE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I9-05820 630-0 | BOLT | 1 | 2204- | TRAGA | (B) M6X30 HEX SOCKET | ||
| 11 | I8-94433 407-0 | BOLT THRUST PLATE TO C/BL | 1 | 2204- | TRAGA | M12X47 | ||

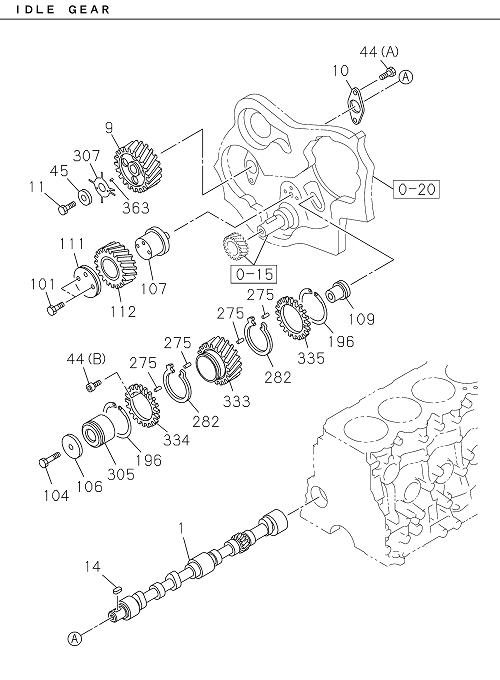

| 107 | I8-97943 224-0 | SHAFT IDLE GEAR | 1 | 2204- | TRAGA | |||
| 87 | I8-94433 302-A | BOLT ROCKER SHAFT | 1 | 2204- | TRAGA | M10X60 | ||
| 307 | I8-97542 980-A | ROTOR CAM ANGLE SENSOR | 1 | 2204- | TRAGA | |||
| 104 | I8-94129 384-1 | BOLT SHAFT IDLE | 1 | 2204- | TRAGA | M12X77 | ||
| 72 | I8-97120 307-0 | SEAL VLV GUIDE | 8 | 2204- | TRAGA | |||
| 5 | I8-97043 861-2 | VALVE EXH | 4 | 2204- | TRAGA | |||
| 85 | I8-94437 493-A | BOLT BRKT | 1 | 2204- | TRAGA | (B) M8X37 & M10X60 L=104 | ||
| 4 | I8-97131 729-2 | VALVE INL | 4 | 2204- | TRAGA | |||
| 54 | I8-94341 906-A | WASHER ROCKER SPR | 6 | 2204- | TRAGA | ID=19.1 OD=23 | ||
| 335 | I8-97245 231-1 | GEAR IDLE,RR | 1 | 2204- | TRAGA | Z=52 | ||
| 56 | I9-09180 019-A | RING SNAP,ROCKER ARM | 2 | 2204- | TRAGA | ID=17.5 | ||
| 84 | I8-94152 345-A | BRACKET ROCKER SHAFT,INTER | 4 | 2204- | TRAGA | |||
| 68 | I8-98276 958-A | SPRING VLV | 8 | 2204- | TRAGA | |||
| 10 | I8-94110 480-1 | PLATE THRUST | 1 | 2204- | TRAGA | |||
| 282 | I8-97245 337-0 | SPRING GEAR | 2 | 2204- | TRAGA | |||
| 44 | I0-28050 816-0 | BOLT | 2 | 2204- | TRAGA | (A) M8X16 FLANGE | ||
| 71 | I8-94133 731-2 | SEAT SPR | 8 | 2204- | TRAGA | (B) UPPER OD=32.8 | ||
| 55 | I9-12626 005-A | PLUG ROCKER SHAFT END | 2 | 2204- | TRAGA | |||
| 196 | I8-97245 684-1 | RING SNAP | 2 | 2204- | TRAGA | |||
| 112 | I8-97240 014-A | GEAR IDLE | 1 | 2204- | TRAGA | Z=43 | ||
| 106 | I5-12519 002-1 | WASHER IDLE GEAR SHAFT | 1 | 2204- | TRAGA | ID=13 OD=36 | ||
| 109 | I8-97943 225-0 | SHAFT IDLE GEAR | 1 | 2204- | TRAGA | |||
| 363 | I9-08150 306-0 | PIN | 2 | 2204- | TRAGA | |||
| 275 | I8-97245 683-0 | PIN IDLE GEAR | 4 | 2204- | TRAGA | OD=5 L=7.5 | ||
| 305 | I8-97240 019-1 | BEARING IDLE GEAR | 1 | 2204- | TRAGA | |||
| 14 | I9-08000 718-0 | KEY CM/SHF | 1 | 2204- | TRAGA | |||
| 71 | I5-12563 001-0 | SEAT SPR | 8 | 2204- | TRAGA | (A) LOWER OD=34 | ||
| 78 | I8-94152 344-A | ARM ROCKER | 8 | 2204- | TRAGA | |||
| 65 | I5-12565 004-0 | COLLAR SPLIT | 16 | 2204- | TRAGA | |||
| 45 | I5-12519 002-1 | WASHER GEAR CAM | 1 | 2204- | TRAGA | ID=13 OD=36 | ||
| 53 | I8-97036 197-A | SHAFT ROCKER ARM | 1 | 2204- | TRAGA | |||
| 88 | I8-97378 496-0 | ROD PUSH | 8 | 2204- | TRAGA | |||
| 9 | I8-97542 978-A | GEAR CM/SHF | 1 | 2204- | TRAGA | Z=60 | ||
| 83 | I0-91111 508-0 | NUT ADJ SCREW,LK | 8 | 2204- | TRAGA | M8 | ||
| 95 | I8-94341 905-A | SPRING ROCKER SHAFT | 3 | 2204- | TRAGA | |||
| 81 | I8-94152 283-A | SCREW ADJ,ROCKER ARM | 8 | 2204- | TRAGA | M8 L=30 | ||
| 85 | I8-94433 304-0 | BOLT BRKT | 2 | 2204- | TRAGA | (A) M8X15,M10X60 L=82 | ||
| 111 | I8-94171 289-0 | COLLAR THRUST,IDLE GEAR | 1 | 2204- | TRAGA | |||
| 333 | I8-97240 018-2 | GEAR IDLE,MAIN | 1 | 2204- | TRAGA | Z=52 | ||
| 334 | I8-97245 232-2 | GEAR IDLE,FRT | 1 | 2204- | TRAGA | Z=52 | ||
| 101 | I8-97223 999-0 | BOLT THRUST COLLAR | 2 | 2204- | TRAGA | M8X53 FLANGE | ||
| 86 | I9-09164 010-A | WASHER ROCKER ARM FIX | 4 | 2204- | TRAGA | ID=10.5 | ||
| 89 | I8-94438 305-1 | TAPPET VLV | 8 | 2204- | TRAGA | |||
| 1 | I8-94127 797-A | CAMSHAFT | 1 | 2204- | TRAGA |
