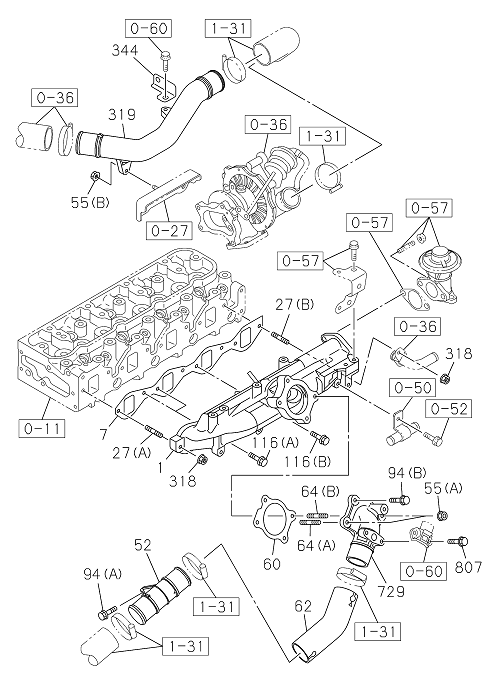

0-25 | INLET MANIFOLD
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 729 | I8-97524 443-A | DUCT INLET | 1 | 2204- | TRAGA | |||
| 807 | I0-28050 616-0 | SCREW SENSOR | 2 | 2204- | TRAGA | M6X16 FLANGE | ||
| 319 | I8-97524 445-A | DUCT INL,TURBOCHARGER | 1 | 2204- | TRAGA | |||
| 318 | I0-91180 208-0 | NUT INL MANIF | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 7 | I8-97301 838-1 | GASKET INL MANIF TO HD | 1 | 2204- | TRAGA | |||
| 64 | I8-98225 099-0 | STUD INL PIPE | 1 | 2204- | TRAGA | (B) M8X35 L=49 | ||
| 27 | I0-41010 825-0 | STUD INL MANIF | 1 | 2204- | TRAGA | (A) M8X25 L=37 | ||
| 64 | I0-40210 825-0 | STUD INL PIPE | 1 | 2204- | TRAGA | (A) M8X25 L=41 | ||
| 60 | I8-97529 303-0 | GASKET INL PIPE | 1 | 2204- | TRAGA | |||
| 1 | I8-97524 442-A | MANIFOLD INL | 1 | 2204- | TRAGA | |||
| 55 | I7-05108 010-A | NUT INL PIPE | 2 | 2204- | TRAGA | (A) M8 FLANGE | ||
| 94 | I0-28050 830-0 | BOLT | 2 | 2204- | TRAGA | (A) M8X30 FLANGE | ||
| 55 | I8-97161 607-0 | NUT INL PIPE | 1 | 2204- | TRAGA | (B) M8 FLANGE | ||
| 116 | I0-50540 830-0 | BOLT MANIF TO INL PIPE | 4 | 2204- | TRAGA | (B) M8X30 W/LK WASHER | ||
| 62 | I8-97524 444-A | HOSE CONNECTOR | 1 | 2204- | TRAGA | |||
| 344 | I8-97540 601-A | BRACKET INL PIPE | 1 | 2204- | TRAGA | |||
| 52 | I8-97524 531-A | PIPE INL | 1 | 2204- | TRAGA | |||
| 94 | I0-28050 835-0 | BOLT | 2 | 2204- | TRAGA | (B) M8X35 FLANGE | ||
| 27 | I9-09630 034-1 | STUD INL MANIF | 1 | 2204- | TRAGA | (B) M8X35 L=46 | ||
| 116 | I0-50540 825-0 | BOLT MANIF TO INL PIPE | 2 | 2204- | TRAGA | (A) M8X25 W/LK WASHER |
