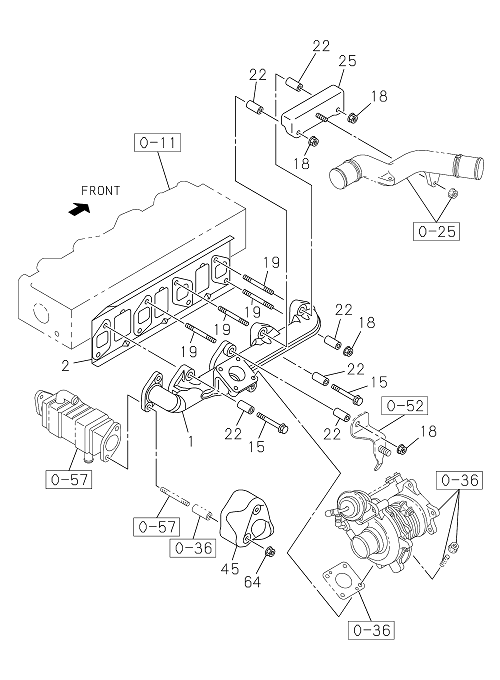

0-27 | EXHAUST MANIFOLD
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 015 | I8-98011 696-1 | BOLT; EXH MANIF | 4 | 2204- | TRAGA | M8X60 FLANGE | ||
| 022 | I8-97540 604-A | SPACER; EXH MANIF BRKT | 8 | 2204- | TRAGA | |||
| 018 | I8-97161 607-0 | NUT; EXH MANIF | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 045 | I8-97524 448-A | PROTECTOR; HEAT,MANIF,RR | 1 | 2204- | TRAGA | |||
| 064 | I8-97161 607-0 | NUT; HEAT PROTECTOR | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 001 | I8-97524 447-A | MANIFOLD; EXHAUST | 1 | 2204- | TRAGA | |||
| 025 | I8-97540 602-A | BRACKET; EXH MANIF | 1 | 2204- | TRAGA | |||
| 019 | I8-98260 937-0 | STUD; MANIF TO CYL HD | 4 | 2204- | TRAGA | M8X64 L=75 | ||
| 002 | I8-97350 317-2 | GASKET; EXH MANIF TO HD | 1 | 2204- | TRAGA |
