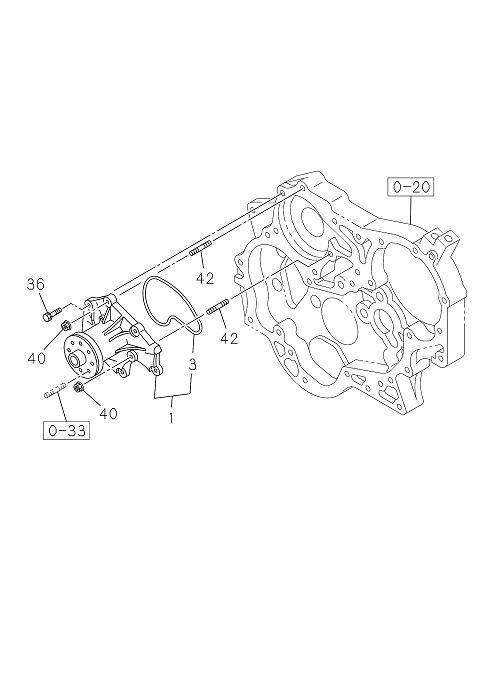

0-30 | WATER PUMP AND CORROSION RESISTOR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I8-94178 081-1 | GASKET; PUMP TO C/BL | 1 | 2204- | TRAGA | |||
| 001 | I6-97105 012-1 | PUMP ASM; WATER,W/GASKET | 1 | 2204- | TRAGA | (IADG) | ||
| 036 | I8-94150 045-1 | BOLT; WATER PUMP TO C/BL | 5 | 2204- | TRAGA | M8X55 W/LK WASHER | ||
| 001 | I8-97105 012-6 | PUMP ASM; WATER,W/GASKET | 1 | 2204- | TRAGA | |||
| 040 | I7-05108 010-A | NUT; WATER PUMP | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 042 | I0-41010 822-0 | STUD; WATER PUMP | 2 | 2204- | TRAGA | M8X22 L=34 |
