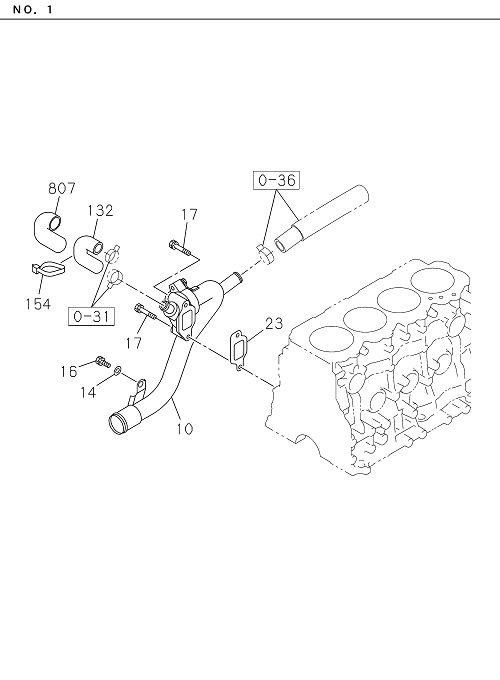

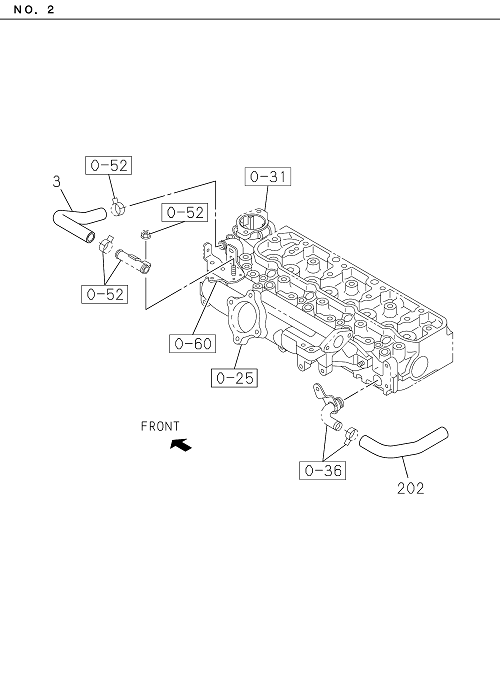

0-32 | WATER PIPING ENGINE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 202 | I8-97545 189-A | HOSE RUBBER,EGR COOLER | 1 | 2204- | TRAGA | |||
| 154 | I5-09707 054-0 | CLIP WATER HOSE | 2 | 2204- | TRAGA | L=170 | ||
| 17 | I0-50540 850-0 | BOLT SUCTION PIPE | 2 | 2204- | TRAGA | M8X50 W/LK WASHER | ||
| 807 | I8-98031 884-0 | INSULATOR HOSE | 1 | 2204- | TRAGA | |||
| 3 | I8-97529 293-A | HOSE WATER,OIL COOLER | 1 | 2204- | TRAGA | |||
| 132 | I8-94382 246-A | HOSE WATER PIPE | 1 | 2204- | TRAGA | |||
| 14 | I8-94174 537-0 | WASHER PL,INL PIPE TO BRKT | 1 | 2204- | TRAGA | ID=8 OD=18 T=3 | ||
| 16 | I0-50740 820-0 | BOLT INL PIPE | 1 | 2204- | TRAGA | M8X20 W/LK WASHER | ||
| 23 | I8-97943 089-0 | GASKET SUCTION PIPE TO BLOCK | 1 | 2204- | TRAGA | |||
| 10 | I8-97545 187-0 | PIPE SUCTION | 1 | 2204- | TRAGA |
