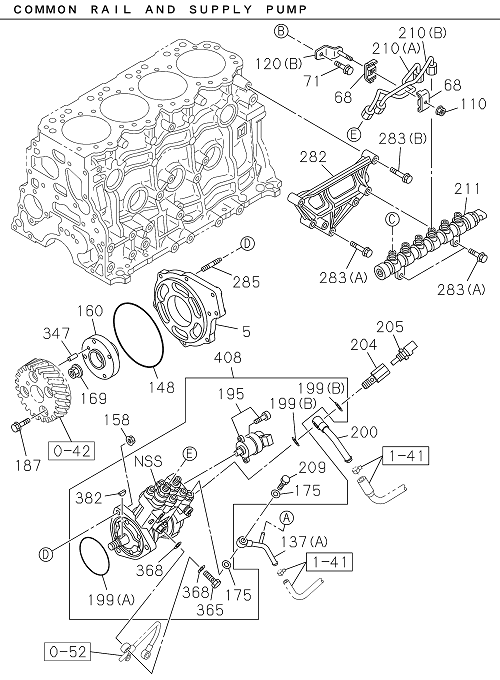

0-40 | FUEL INJECTION SYSTEM
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 195 | I8-97447 435-A | ACTUATOR; FICD | 1 | 2204- | TRAGA | |||
| 211 | I8-97445 060-A | RAIL ASM; COMMON | 1 | 2204- | TRAGA | |||
| 169 | I0-91180 214-0 | NUT; BRKT | 1 | 2204- | TRAGA | M14 FLANGE | ||
| 066 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 2204- | TRAGA | ID=7.1 | ||
| 137 | I8-97524 530-1 | PIPE ASM; LEAK OFF | 1 | 2204- | TRAGA | (B) | ||
| 283 | I8-98174 080-0 | BOLT; COMMON RAIL | 3 | 2204- | TRAGA | (A) M8X25 FLANGE | ||
| 205 | I8-97224 993-0 | SENSOR; FUEL TEMP | 1 | 2204- | TRAGA | |||
| 365 | I8-97447 428-A | BOLT; EYE,OIL INLET | 1 | 2204- | TRAGA | |||
| 283 | I8-98174 180-0 | BOLT; COMMON RAIL | 2 | 2204- | TRAGA | (B) M8X40 FLANGE | ||
| 285 | I8-98336 983-0 | STUD; BRKT | 3 | 2204- | TRAGA | M8X30 L=41 | ||
| 005 | I8-97524 457-A | BRACKET; INJ PUMP | 1 | 2204- | TRAGA | |||
| 160 | I8-97524 456-A | SPACER; INJ PUMP | 1 | 2204- | TRAGA | |||
| 347 | I8-98017 619-0 | PIN | 1 | 2204- | TRAGA | |||
| 199 | I8-97448 908-A | GASKET; EYE BOLT | 2 | 2204- | TRAGA | (B) | ||
| 200 | I8-97524 529-A | PIPE; FUEL FEED | 1 | 2204- | TRAGA | |||
| 175 | I8-97447 419-A | GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP | 2 | 2204- | TRAGA | |||
| 137 | I8-97524 527-A | PIPE ASM; LEAK OFF | 1 | 2204- | TRAGA | (A) | ||
| 187 | I0-28050 825-0 | BOLT; GEAR | 4 | 2204- | TRAGA | M8X25 FLANGE | ||
| 204 | I1-15419 716-1 | ADAPTER; FUEL RETURN | 1 | 2204- | TRAGA | M12 & M14 STRAIGHT | ||
| 209 | I8-97447 427-A | BOLT; EYE,FUEL RETURN | 1 | 2204- | TRAGA | |||
| 016 | I8-97696 669-A | PIPE; INJ NO.1 | 1 | 2204- | TRAGA | |||
| 031 | I8-97518 564-A | NOZZLE ASM; INJ | 4 | 2204- | TRAGA | |||
| 061 | I8-97524 508-A | BOLT; CLAMP NOZZLE HOLDER | 4 | 2204- | TRAGA | |||
| 050 | I8-97529 407-A | GASKET; NOZZLE HOLDER | 4 | 2204- | TRAGA | |||
| 030 | I8-98089 285-0 | HOSE; RUBBER,FUEL LEAK | 1 | 2204- | TRAGA | (A) | ||
| 029 | I8-97944 126-0 | CLIP; HOSE | 2 | 2204- | TRAGA | (B) ID=10.5 | ||
| 382 | I8-97447 417-A | KEY; DRIVE SHAFT | 1 | 2204- | TRAGA | |||
| 059 | I8-97524 507-A | CLAMP; NOZZLE HOLDER | 4 | 2204- | TRAGA | |||
| 127 | I0-28050 620-0 | BOLT; CLIP LEAK OFF PIPE | 1 | 2204- | TRAGA | M6X20 FLANGE | ||
| 120 | I8-97524 526-A | BRACKET; INJ PIPE | 1 | 2204- | TRAGA | (B) | ||
| 210 | I8-97524 524-A | PIPE; INJ,C/R | 1 | 2204- | TRAGA | (B) | ||
| 279 | I5-09707 053-0 | CLIP; FUEL HOSE | 1 | 2204- | TRAGA | ID=7 | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 2204- | TRAGA | M6 FLANGE | ||
| 148 | I8-97287 672-0 | RING | 1 | 2204- | TRAGA | |||
| 158 | I8-97161 607-0 | NUT; INJ PUMP | 3 | 2204- | TRAGA | M8 FLANGE | ||
| 071 | I0-28050 816-0 | BOLT; BRKT | 1 | 2204- | TRAGA | M8X16 FLANGE | ||
| 210 | I8-97524 521-A | PIPE; INJ,C/R | 1 | 2204- | TRAGA | (A) | ||
| 408 | I8-97445 058-A | PUMP ASM; FUEL,SUPPLY | 1 | 2204- | TRAGA | |||
| 018 | I8-97696 857-A | PIPE; INJ NO.3 | 1 | 2204- | TRAGA | |||
| 282 | I8-97524 505-B | BRACKET; COMMON RAIL | 1 | 2204- | TRAGA | |||
| 068 | I8-98039 293-0 | CLIP; INJ PIPE | 6 | 2204- | TRAGA | ID=11 & 11 L=19 | ||
| 019 | I8-97696 858-A | PIPE; INJ NO.4 | 1 | 2204- | TRAGA | |||
| 120 | I8-97524 525-A | BRACKET; INJ PIPE | 2 | 2204- | TRAGA | (A) | ||
| 368 | I8-97447 418-A | GASKET; EYE BOLT,OIL INLET | 2 | 2204- | TRAGA | |||
| 029 | I8-94208 596-0 | CLIP; HOSE | 1 | 2204- | TRAGA | (A) ID=7 | ||
| 017 | I8-97696 856-A | PIPE; INJ NO.2 | 1 | 2204- | TRAGA | |||
| 030 | I8-97524 528-A | HOSE; RUBBER,FUEL LEAK | 1 | 2204- | TRAGA | (B) | ||
| 199 | I8-97447 434-A | GASKET; EYE BOLT | 1 | 2204- | TRAGA | (A) |
