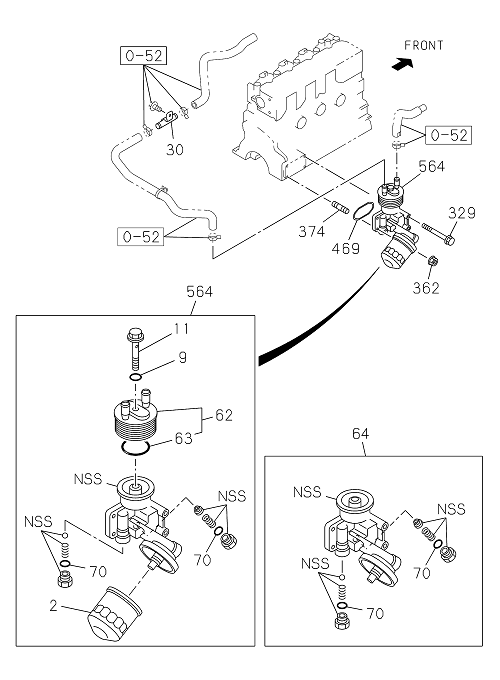

0-50 | OIL COOLER AND OIL FILTER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 564 | I8-97287 474-2 | COOLER ASM; OIL,W/O FILTER | 1 | 2204- | TRAGA | |||
| 2 | I6-97309 927-0 | ELEMENT OIL FILTER | 1 | 2204- | TRAGA | (IADG) | ||
| 362 | I7-05108 010-A | NUT; OIL FILTER | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 002 | I8-97309 927-A | ELEMENT; OIL FILTER | 1 | 2204- | TRAGA | (IADG) | ||
| 469 | I8-98087 965-0 | GASKET OIL COOLER TO C/BL | 1 | 2204- | TRAGA | |||
| 2 | I8-97309 927-0 | ELEMENT OIL FILTER | 1 | 2204- | TRAGA | |||
| 329 | I1-09044 075-1 | BOLT; OIL FILTER | 2 | 2204- | TRAGA | M8X95 FLANGE | ||
| 062 | I8-97319 556-1 | COOLER ASM; OIL | 1 | 2204- | TRAGA | |||
| 564 | I8-97287 474-2 | COOLER ASM OIL,W/O FILTER | 1 | 2204- | TRAGA | |||
| 009 | I8-97288 938-0 | GASKET; CENTER BOLT | 1 | 2204- | TRAGA | |||
| 002 | I8-97309 927-0 | ELEMENT; OIL FILTER | 1 | 2204- | TRAGA | |||
| 70 | I8-94125 113-0 | GASKET PLUG,OIL FILTER | 2 | 2204- | TRAGA | |||
| 469 | I8-98087 965-0 | GASKET; OIL COOLER TO C/BL | 1 | 2204- | TRAGA | |||
| 2 | I8-97309 927-A | ELEMENT OIL FILTER | 1 | 2204- | TRAGA | (IADG) | ||
| 30 | I8-97529 295-A | PIPE ASM OIL COOLER | 1 | 2204- | TRAGA | |||
| 064 | I8-97942 933-0 | BODY; OIL FILTER & OIL COOLER | 1 | 2204- | TRAGA | |||
| 11 | I8-98086 802-0 | BOLT CENTER | 1 | 2204- | TRAGA | |||
| 030 | I8-97529 295-A | PIPE ASM; OIL COOLER | 1 | 2204- | TRAGA | |||
| 329 | I1-09044 075-1 | BOLT OIL FILTER | 2 | 2204- | TRAGA | M8X95 FLANGE | ||
| 063 | I8-94450 917-0 | GASKET; COOLER TO BRKT | 1 | 2204- | TRAGA | |||
| 374 | I0-41010 825-0 | STUD; OIL FILTER | 2 | 2204- | TRAGA | M8X25 L=37 | ||
| 62 | I8-97319 556-1 | COOLER ASM OIL | 1 | 2204- | TRAGA | |||
| 011 | I8-98086 802-0 | BOLT; CENTER | 1 | 2204- | TRAGA | |||
| 362 | I7-05108 010-A | NUT OIL FILTER | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 374 | I0-41010 825-0 | STUD OIL FILTER | 2 | 2204- | TRAGA | M8X25 L=37 | ||
| 070 | I8-94125 113-0 | GASKET; PLUG,OIL FILTER | 2 | 2204- | TRAGA | |||
| 64 | I8-97942 933-0 | BODY OIL FILTER & OIL COOLER | 1 | 2204- | TRAGA | |||
| 63 | I8-94450 917-0 | GASKET COOLER TO BRKT | 1 | 2204- | TRAGA | |||
| 002 | I6-97309 927-0 | ELEMENT; OIL FILTER | 1 | 2204- | TRAGA | (IADG) | ||
| 9 | I8-97288 938-0 | GASKET CENTER BOLT | 1 | 2204- | TRAGA |
