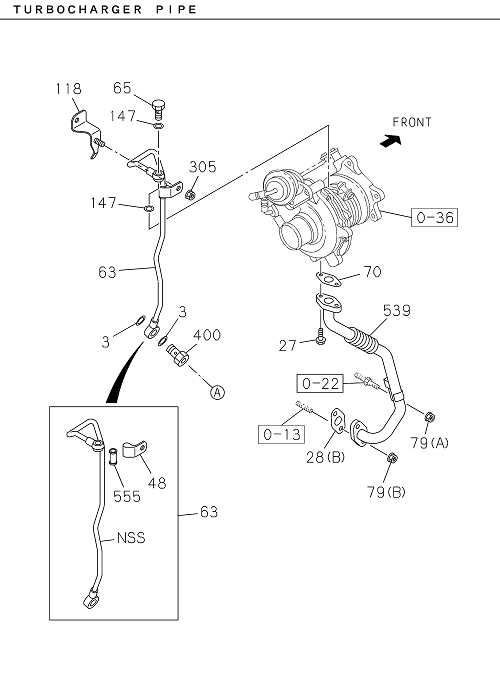

0-52 | OIL AND VACUUM PIPING ENGINE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 305 | I7-05108 010-A | NUT BRKT,OIL PIPE | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 27 | I0-58330 616-0 | BOLT OIL PIPE FIX | 2 | 2204- | TRAGA | M6X16 HEX SOCKET | ||
| 44 | I7-04508 025-A | BOLT CLIP,OIL PIPE | 1 | 2204- | TRAGA | M8X20 FLANGE | ||
| 400 | I8-94315 336-1 | NIPPLE VAC PUMP,OIL | 1 | 2204- | TRAGA | M14X25 | ||
| 309 | I8-97529 294-A | HOSE OIL COOLER RETURN | 1 | 2204- | TRAGA | (A) | ||
| 147 | I9-09571 410-0 | GASKET OIL PIPE TO TURBOCHARGER | 2 | 2204- | TRAGA | ID=10.2 OD=16.0 | ||
| 146 | I0-28050 816-0 | BOLT BRKT | 3 | 2204- | TRAGA | M8X16 FLANGE | ||
| 330 | I8-97524 425-B | HOSE VAC PUMP,RETURN | 1 | 2204- | TRAGA | |||
| 118 | I8-97696 797-0 | BRACKET CLIP,OIL PIPE | 1 | 2204- | TRAGA | |||
| 79 | I8-97581 233-0 | NUT OIL DRAIN PIPE | 2 | 2204- | TRAGA | (B) M8 FLANGE | ||
| 63 | I8-97696 803-A | PIPE OIL,TURBOCHARGER FEED | 1 | 2204- | TRAGA | |||
| 65 | I8-98037 824-0 | BOLT JOINT,OIL PIPE | 1 | 2204- | TRAGA | M10X23 EYE-BOLT | ||
| 311 | I0-28050 816-0 | BOLT PIPE FIX | 1 | 2204- | TRAGA | M8X16 FLANGE | ||
| 132 | I8-97524 424-A | PIPE ASM OIL,INJ PUMP FEED | 1 | 2204- | TRAGA | |||
| 26 | I8-97923 928-0 | PIPE OIL,PUMP TO C/BL | 1 | 2204- | TRAGA | |||
| 308 | I8-97529 292-A | HOSE OIL COOLER FEED | 1 | 2204- | TRAGA | (A) | ||
| 539 | I8-97524 427-1 | PIPE OIL,TURBOCHARGER DRAIN | 1 | 2204- | TRAGA | |||
| 312 | I0-91180 208-0 | NUT PIPE FIX | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 57 | I8-97249 279-0 | PIPE OIL,OIL JET | 1 | 2204- | TRAGA | |||
| 29 | I0-28050 810-0 | BOLT OIL PIPE,OIL JET | 1 | 2204- | TRAGA | (A) M8X10 FLANGE | ||
| 332 | I8-97942 810-0 | PIPE OIL,C/BL TO VAC PUMP | 1 | 2204- | TRAGA | |||
| 70 | I8-94362 672-1 | GASKET OIL PIPE,TURBOCHARGER | 1 | 2204- | TRAGA | |||
| 28 | I8-97045 326-1 | GASKET OIL PIPE | 1 | 2204- | TRAGA | (B) | ||
| 309 | I8-97555 641-A | HOSE OIL COOLER RETURN | 1 | 2204- | TRAGA | (B) | ||
| 308 | I8-97555 640-A | HOSE OIL COOLER FEED | 1 | 2204- | TRAGA | (B) | ||
| 48 | I8-97696 802-0 | CLIP OIL PIPE | 1 | 2204- | TRAGA | |||
| 47 | I9-09571 410-0 | GASKET OIL PIPE | 2 | 2204- | TRAGA | (B) ID=10.2 OD=16.0 | ||
| 79 | I7-05110 010-A | NUT OIL DRAIN PIPE | 1 | 2204- | TRAGA | (A) M10 FLANGE | ||
| 555 | I8-97696 801-0 | INSULATOR OIL PIPE | 1 | 2204- | TRAGA | |||
| 46 | I5-09675 018-1 | BOLT JOINT,OIL FEED PIPE,VAC PUMP | 1 | 2204- | TRAGA | M8X20 EYE-BOLT | ||
| 28 | I5-09623 002-0 | GASKET OIL PIPE | 1 | 2204- | TRAGA | (A) ID=11 | ||
| 157 | I8-97534 034-A | BRACKET OIL PIPE | 1 | 2204- | TRAGA | |||
| 29 | I0-50640 625-0 | BOLT OIL PIPE,OIL JET | 4 | 2204- | TRAGA | (B) M6X25 W/LK&PL WASHER | ||
| 3 | I9-09571 414-0 | GASKET EYE BOLT,OIL PIPE | 2 | 2204- | TRAGA | ID=14.2 OD=20 | ||
| 331 | I8-97108 102-0 | CLAMP VAC HOSE,PUMP RETURN | 2 | 2204- | TRAGA | |||
| 58 | I8-97311 976-1 | VALVE RELIEF,OIL JET,PISTON COOLING | 1 | 2204- | TRAGA | |||
| 310 | I8-94125 862-1 | CLIP WATER HOSE FIX | 8 | 2204- | TRAGA | ID=20.8 | ||
| 47 | I9-09571 408-0 | GASKET OIL PIPE | 2 | 2204- | TRAGA | (A) ID=8.2 OD=14.0 T=1.0 |
