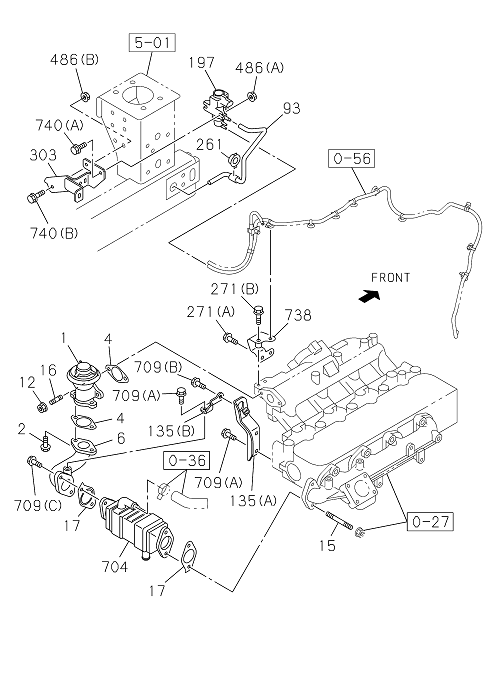

0-57 | EMISSION PIPING
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 12 | I0-91180 208-0 | NUT EGR VLV | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 709 | I0-28050 820-0 | BOLT EGR COOLER | 1 | 2204- | TRAGA | (B) M8X20 FLANGE | ||
| 197 | I8-98302 319-1 | VALVE VAC SWITCHING | 1 | 2204- | TRAGA | |||
| 709 | I8-97378 077-0 | BOLT EGR COOLER | 2 | 2204- | TRAGA | (C) M8X23 FLANGE | ||
| 738 | I8-97524 450-A | BRACKET SENSOR,VAC | 1 | 2204- | TRAGA | |||
| 740 | I0-28650 620-0 | BOLT VAC REG VALVE | 2 | 2204- | TRAGA | (A) M6X20 FLANGE | ||
| 709 | I0-28050 816-0 | BOLT EGR COOLER | 3 | 2204- | TRAGA | (A) M8X16 FLANGE | ||
| 135 | I8-97524 453-A | BRACKET EGR | 1 | 2204- | TRAGA | (B) | ||
| 303 | I8-98258 967-A | BRACKET VAC SW | 1 | 2204- | TRAGA | |||
| 15 | I8-98260 937-0 | STUD EGR PIPE | 2 | 2204- | TRAGA | M8X64 L=75 | ||
| 271 | I0-28050 830-0 | BOLT BRKT | 1 | 2204- | TRAGA | (B) M8X30 FLANGE | ||
| 17 | I8-97357 684-3 | GASKET EGR PIPE | 2 | 2204- | TRAGA | |||
| 261 | I8-94128 319-A | GROMMET | 1 | 2204- | TRAGA | |||
| 2 | I8-97378 077-0 | BOLT EGR VLV | 2 | 2204- | TRAGA | M8X23 FLANGE | ||
| 93 | I8-98288 841-A | HOSE ASM | 1 | 2204- | TRAGA | |||
| 271 | I0-28050 816-0 | BOLT BRKT | 1 | 2204- | TRAGA | (A) M8X16 FLANGE | ||
| 486 | I0-91180 106-0 | NUT BRKT | 2 | 2204- | TRAGA | (A) M6 FLANGE | ||
| 4 | I8-97942 749-0 | GASKET EGR VLV | 2 | 2204- | TRAGA | |||
| 740 | I0-28650 825-0 | BOLT VAC REG VALVE | 1 | 2204- | TRAGA | (B) M8X25 FLANGE | ||
| 6 | I8-97524 449-A | ADAPTER EGR GAS TEMP SENSOR | 1 | 2204- | TRAGA | |||
| 704 | I8-97524 451-A | COOLER ASM EGR | 1 | 2204- | TRAGA | |||
| 1 | I8-97349 435-1 | VALVE EGR | 1 | 2204- | TRAGA | |||
| 486 | I7-05108 010-A | NUT BRKT | 1 | 2204- | TRAGA | (B) M8 FLANGE | ||
| 16 | I8-97378 060-0 | STUD EGR VLV | 2 | 2204- | TRAGA | M8X20 L=31 | ||
| 135 | I8-97524 452-A | BRACKET EGR | 1 | 2204- | TRAGA | (A) |
