0-60 | ENGINE ELECTRICAL CONTROL PARTS
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

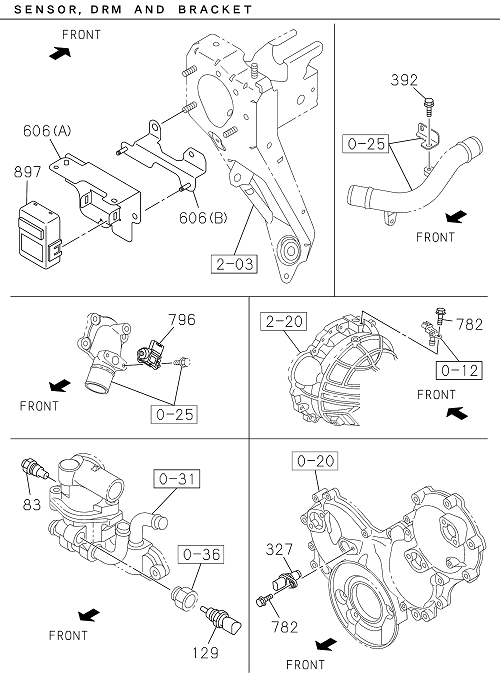

| 327 | I8-98183 621-0 | SENSOR; CAMSHAFT POSITION | 1 | 2204- | TRAGA | |||
| 083 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 2204- | TRAGA | YAZAKI | ||

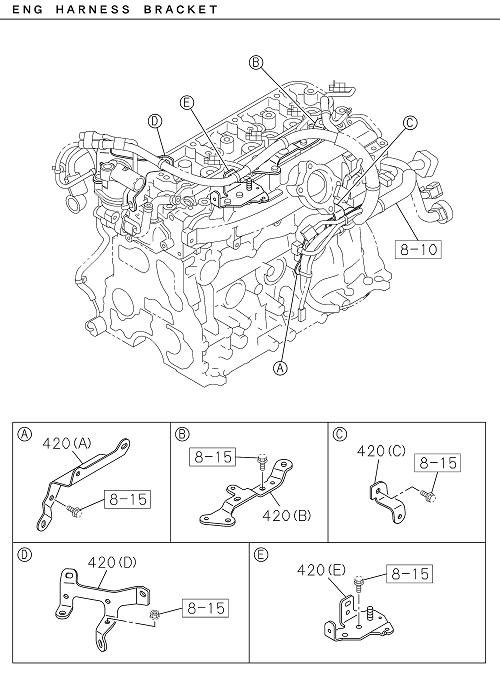

| 420 | I8-97540 607-A | BRACKET HARNESS | 1 | 2204- | TRAGA | (D) | ||
| 007 | I0-91180 112-0 | NUT; STARTER | 2 | 2204- | TRAGA | M12 FLANGE | ||
| 83 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 2204- | TRAGA | |||
| 606 | I8-97524 829-A | BRACKET CONT UNIT | 1 | 2204- | TRAGA | (B) | ||

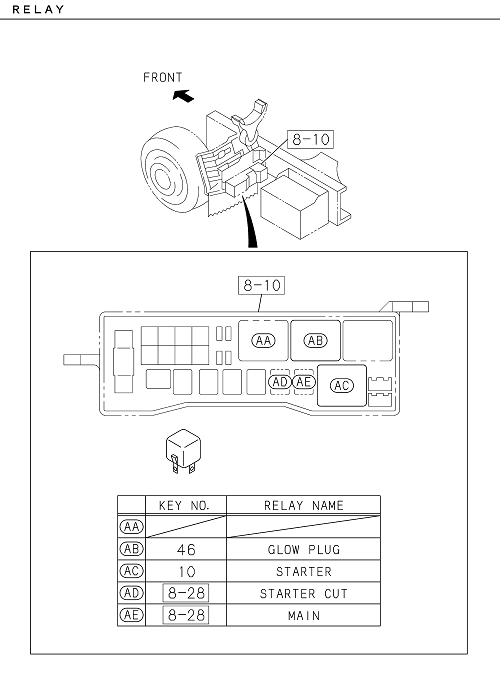

| 046 | I8-97173 951-0 | RELAY; GLOW PLUG | 1 | 2204- | TRAGA | 12V 80A | ||
| 024 | I0-50541 070-0 | BOLT; GEN BRKT | 2 | 2204- | TRAGA | (B) M10X70 W/LK WASHER | ||

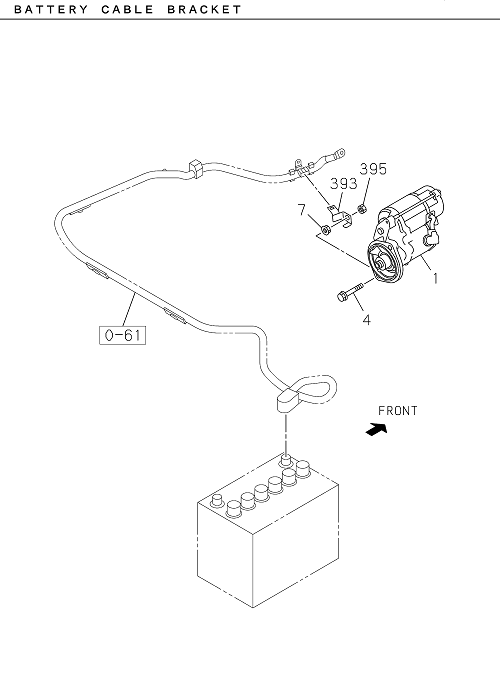

| 393 | I8-97262 964-0 | BRACKET; HARNESS TO BODY | 1 | 2204- | TRAGA | |||
| 420 | I8-97524 537-A | BRACKET HARNESS | 1 | 2204- | TRAGA | (C) | ||
| 129 | I8-98023 717-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2204- | TRAGA | NIPPON THERMOSTAT | ||
| 16 | I0-28056 013-0 | BOLT GEN | 1 | 2204- | TRAGA | M10X130 FLANGE | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2204- | TRAGA | M6X16 FLANGE | ||
| 420 | I8-97524 534-A | BRACKET HARNESS | 1 | 2204- | TRAGA | (A) | ||

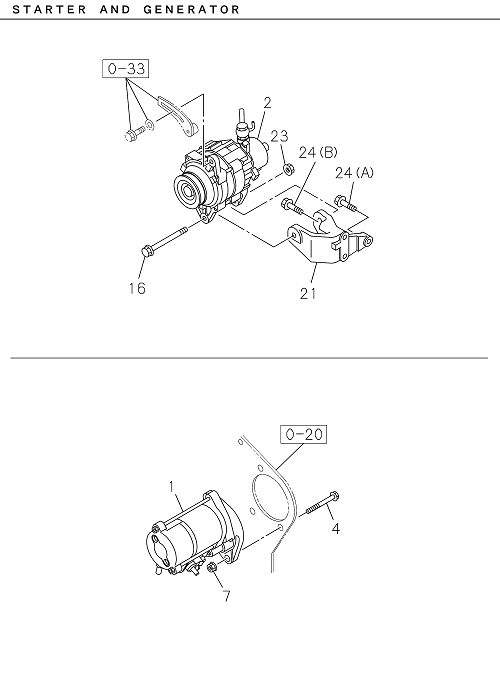

| 002 | I8-97542 686-0 | GENERATOR ASM | 1 | 2204- | TRAGA | 12V 70A | ||
| 393 | I8-97262 964-0 | BRACKET HARNESS TO BODY | 1 | 2204- | TRAGA | |||
| 24 | I0-50541 070-0 | BOLT GEN BRKT | 2 | 2204- | TRAGA | (B) M10X70 W/LK WASHER | ||
| 606 | I8-97666 467-A | BRACKET CONT UNIT | 1 | 2204- | TRAGA | (A) | ||
| 606 | I8-97666 467-A | BRACKET; CONT UNIT | 1 | 2204- | TRAGA | (A) | ||
| 392 | I0-28050 820-0 | BOLT; BRKT | 2 | 2204- | TRAGA | M8X20 FLANGE | ||
| 83 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 2204- | TRAGA | YAZAKI | ||
| 420 | I8-97540 607-A | BRACKET; HARNESS | 1 | 2204- | TRAGA | (D) | ||
| 392 | I0-28050 820-0 | BOLT BRKT | 2 | 2204- | TRAGA | M8X20 FLANGE | ||
| 016 | I0-28056 013-0 | BOLT; GEN | 1 | 2204- | TRAGA | M10X130 FLANGE | ||
| 796 | I8-98121 697-1 | SENSOR; MAP | 1 | 2204- | TRAGA | |||
| 4 | I0-28051 270-0 | BOLT STARTER | 2 | 2204- | TRAGA | M12X70 FLANGE | ||
| 1 | I8-97957 512-A | STARTER ASM | 1 | 2204- | TRAGA | 12V 2.0KW | ||
| 21 | I8-97912 659-0 | BRACKET GEN | 1 | 2204- | TRAGA | |||
| 327 | I8-98183 621-0 | SENSOR CAMSHAFT POSITION | 1 | 2204- | TRAGA | |||
| 420 | I8-97524 537-A | BRACKET; HARNESS | 1 | 2204- | TRAGA | (C) | ||
| 2 | I8-97542 686-0 | GENERATOR ASM | 1 | 2204- | TRAGA | 12V 70A | ||
| 606 | I8-97524 829-A | BRACKET; CONT UNIT | 1 | 2204- | TRAGA | (B) | ||
| 395 | I0-91111 512-0 | NUT; BRKT FIX | 1 | 2204- | TRAGA | M12 | ||
| 024 | I0-50541 035-0 | BOLT; GEN BRKT | 1 | 2204- | TRAGA | (A) M10X35 W/LK WASHER | ||
| 395 | I0-91111 512-0 | NUT BRKT FIX | 1 | 2204- | TRAGA | M12 | ||
| 24 | I0-50541 035-0 | BOLT GEN BRKT | 1 | 2204- | TRAGA | (A) M10X35 W/LK WASHER | ||
| 021 | I8-97912 659-0 | BRACKET; GEN | 1 | 2204- | TRAGA | |||
| 46 | I8-97173 951-0 | RELAY GLOW PLUG | 1 | 2204- | TRAGA | 12V 80A | ||
| 001 | I8-97957 512-A | STARTER ASM | 1 | 2204- | TRAGA | 12V 2.0KW | ||
| 897 | I8-97543 860-0 | DRM | 1 | 2204- | TRAGA | |||
| 083 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 2204- | TRAGA | |||
| 782 | I0-28050 616-0 | BOLT SENSOR | 1 | 2204- | TRAGA | M6X16 FLANGE | ||
| 23 | I7-05110 010-A | NUT GEN | 1 | 2204- | TRAGA | M10 FLANGE | ||
| 004 | I0-28051 270-0 | BOLT; STARTER | 2 | 2204- | TRAGA | M12X70 FLANGE | ||
| 796 | I8-98121 697-1 | SENSOR MAP | 1 | 2204- | TRAGA | |||
| 023 | I7-05110 010-A | NUT; GEN | 1 | 2204- | TRAGA | M10 FLANGE | ||
| 420 | I8-97524 536-A | BRACKET HARNESS | 1 | 2204- | TRAGA | (B) | ||
| 10 | I8-97173 951-0 | RELAY STARTER | 1 | 2204- | TRAGA | 12V 80A | ||
| 129 | I8-98023 717-0 | SENSOR GLOW PLUG,THERMO | 1 | 2204- | TRAGA | NIPPON THERMOSTAT | ||
| 420 | I8-97524 536-A | BRACKET; HARNESS | 1 | 2204- | TRAGA | (B) | ||
| 420 | I8-97540 608-A | BRACKET HARNESS | 1 | 2204- | TRAGA | (E) | ||
| 897 | I8-97543 860-0 | DRM | 1 | 2204- | TRAGA | |||
| 420 | I8-97524 534-A | BRACKET; HARNESS | 1 | 2204- | TRAGA | (A) | ||
| 7 | I0-91180 112-0 | NUT STARTER | 2 | 2204- | TRAGA | M12 FLANGE | ||
| 420 | I8-97540 608-A | BRACKET; HARNESS | 1 | 2204- | TRAGA | (E) | ||
| 010 | I8-97173 951-0 | RELAY; STARTER | 1 | 2204- | TRAGA | 12V 80A |
