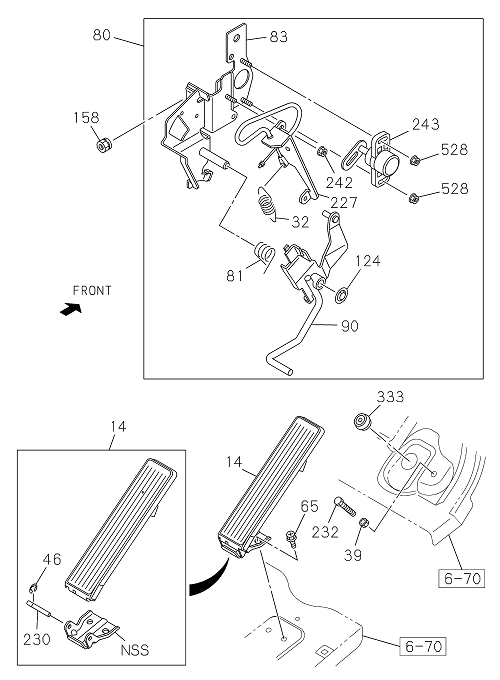

1-01 | ACCELERATOR PEDAL AND CONTROL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 124 | I8-97022 566-0 | NUT LEVER | 1 | 2204- | TRAGA | ID=9.9 PUSH NUT | ||
| 333 | I8-97224 683-0 | GROMMET HOLE,CABLE | 1 | 2204- | TRAGA | OD=24.5 T=7.5 | ||
| 243 | I8-98131 263-0 | SENSOR ACCEL | 1 | 2204- | TRAGA | |||
| 83 | I8-98032 263-2 | BRACKET CONT LINK | 1 | 2204- | TRAGA | |||
| 14 | I8-97853 061-A | PAD PEDAL,ACCEL | 1 | 2204- | TRAGA | |||
| 46 | I0-91805 504-0 | RING SNAP,ACCEL CONT PEDAL | 1 | 2204- | TRAGA | ID=4 | ||
| 39 | I0-91110 508-0 | NUT ACCEL PEDAL STOPPER | 1 | 2204- | TRAGA | M8 | ||
| 81 | I8-97853 205-1 | SPRING RETURN,ENG CONT LEVER | 1 | 2204- | TRAGA | |||
| 232 | I8-97378 461-0 | BOLT STOPPER,ACCEL PEDAL | 1 | 2204- | TRAGA | M8X45 | ||
| 32 | I8-97997 917-0 | SPRING RETURN,ACCEL PEDAL | 1 | 2204- | TRAGA | |||
| 158 | I8-94279 060-0 | NUT BRKT | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 90 | I8-97994 590-4 | LEVER RELAY,ENG CONT | 1 | 2204- | TRAGA | |||
| 227 | I8-97537 976-0 | CABLE ASM RETURN,ACCEL PEDAL | 1 | 2204- | TRAGA | |||
| 80 | I8-97666 422-0 | LINK ASM ENG CONT | 1 | 2204- | TRAGA | |||
| 230 | I8-97696 011-A | PIN JOINT,ACCEL PEDAL TO BRKT | 1 | 2204- | TRAGA | |||
| 65 | I8-94310 730-0 | BOLT | 2 | 2204- | TRAGA | M8X16 W/LK&PL WASHER | ||
| 242 | I8-98029 921-0 | NUT ACCEL PEDAL | 1 | 2204- | TRAGA | M6 W/DISHED WASHER | ||
| 528 | I8-94169 022-0 | NUT ACCEL SENSOR | 2 | 2204- | TRAGA | M5 |
