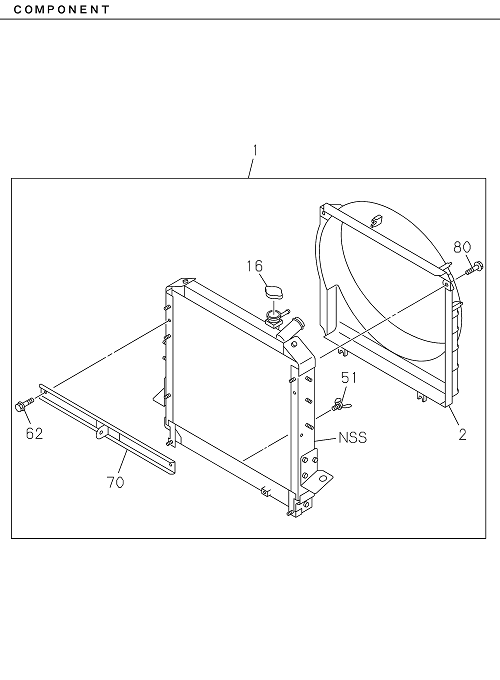

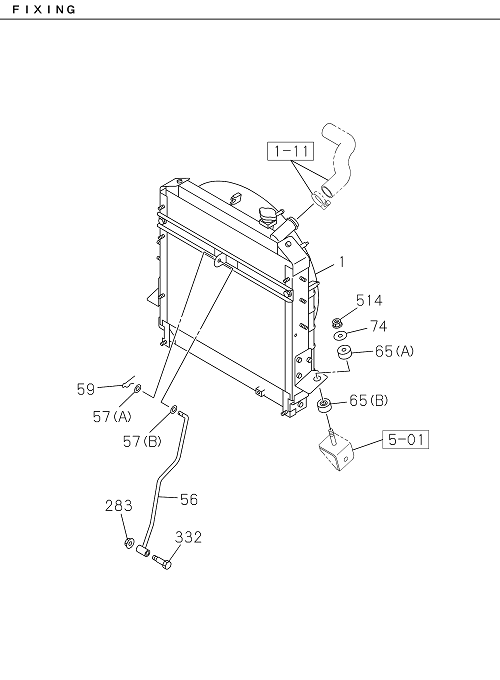

1-10 | RADIATOR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 57 | I8-97011 676-0 | WASHER PL,STAY | 1 | 2204- | TRAGA | (B) ID=12 | ||
| 56 | I8-98240 554-A | STAY RAD | 1 | 2204- | TRAGA | |||
| 51 | I8-98376 326-A | PLUG DRAIN | 1 | 2204- | TRAGA | |||
| 65 | I8-94249 346-A | INSULATOR RAD | 2 | 2204- | TRAGA | (A) | ||
| 57 | I0-91610 510-0 | WASHER PL,STAY | 1 | 2204- | TRAGA | (A) ID=10.5 | ||
| 59 | I8-97359 052-0 | PIN SNAP,STAY | 1 | 2204- | TRAGA | L=32.6 | ||
| 65 | I8-94249 347-A | INSULATOR RAD | 2 | 2204- | TRAGA | (B) | ||
| 70 | I8-98376 324-A | STAY RAD | 1 | 2204- | TRAGA | |||
| 332 | I8-94401 350-0 | BOLT BRKT,RAD STAY | 1 | 2204- | TRAGA | M8X45 | ||
| 1 | I8-97663 570-A | RADIATOR ASM | 1 | 2204- | TRAGA | |||
| 62 | I8-98376 400-A | BOLT STAY | 2 | 2204- | TRAGA | |||
| 514 | I7-05108 010-A | NUT RAD | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 16 | I8-98376 325-A | CAP RAD | 1 | 2204- | TRAGA | |||
| 2 | I8-97525 621-A | GUIDE FAN | 1 | 2204- | TRAGA | |||
| 74 | I8-97359 049-1 | WASHER PL,CUSHION RUBBER | 2 | 2204- | TRAGA | ID=8.5 OD=36 | ||
| 80 | I8-98376 400-A | BOLT FAN GUIDE | 2 | 2204- | TRAGA | |||
| 283 | I8-97581 233-0 | NUT BRKT | 1 | 2204- | TRAGA | M8 FLANGE |
