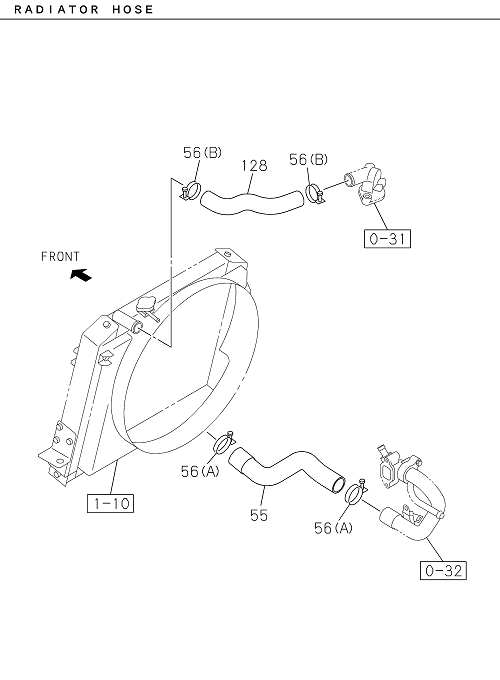

1-11 | RADIATOR HOSE AND SUB TANK
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 55 | I8-97517 686-A | HOSE WATER,RAD OUTLET | 1 | 2204- | TRAGA | |||
| 152 | I8-97217 799-0 | CAP ASM SURGE TANK | 1 | 2204- | TRAGA | |||
| 56 | I8-98133 956-0 | CLIP WATER HOSE,RAD | 2 | 2204- | TRAGA | (A) ID=48 | ||
| 23 | I8-98240 548-A | BRACKET RESERVE TANK | 1 | 2204- | TRAGA | |||
| 1 | I8-98312 690-0 | TANK SURGE,RAD | 1 | 2204- | TRAGA | |||
| 13 | I8-98029 256-0 | CLIP HOSE,SURGE TANK | 2 | 2204- | TRAGA | (C) ID=12 | ||
| 19 | I8-97794 991-0 | CLIP HOSE,SURGE TANK | 2 | 2204- | TRAGA | ID=12 | ||
| 33 | I0-28650 825-0 | BOLT BRKT | 1 | 2204- | TRAGA | M8X25 FLANGE | ||
| 68 | I7-05108 010-A | NUT BRKT | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 18 | I8-97665 584-A | HOSE RAD TO SURGE TANK | 1 | 2204- | TRAGA | |||
| 128 | I8-98240 543-A | HOSE WATER,RAD INL | 1 | 2204- | TRAGA | |||
| 8 | I1-09366 179-0 | HOSE VINYL | 1 | 2204- | TRAGA | L=500 | ||
| 34 | I1-09030 042-0 | BOLT RESERVE TANK | 4 | 2204- | TRAGA | M8X22 W/LK&PL WASHER | ||
| 13 | I1-09709 290-0 | CLIP HOSE,SURGE TANK | 2 | 2204- | TRAGA | (A) ID=13-18 L=14.5 | ||
| 56 | I8-98133 958-0 | CLIP WATER HOSE,RAD | 2 | 2204- | TRAGA | (B) ID=42 | ||
| 204 | I7-05108 010-A | NUT RESERVE TANK | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 13 | I8-94400 865-0 | CLIP HOSE,SURGE TANK | 2 | 2204- | TRAGA | (B) ID=12 & 16.5 | ||
| 128 | I6-98240 543-0 | HOSE WATER,RAD INL | 1 | 2204- | TRAGA | (IADG) |
