| 006 |
I0-36220 512-0 |
|
SCREW; TANK UNIT TO SUB FUEL TANK |
5 |
2204- |
|
TRAGA |
M5X12 W/LK WASHER |
| 014 |
I8-98259 662-A |
|
HOSE; BREATHER,OUTLET |
1 |
2204- |
|
TRAGA |
|

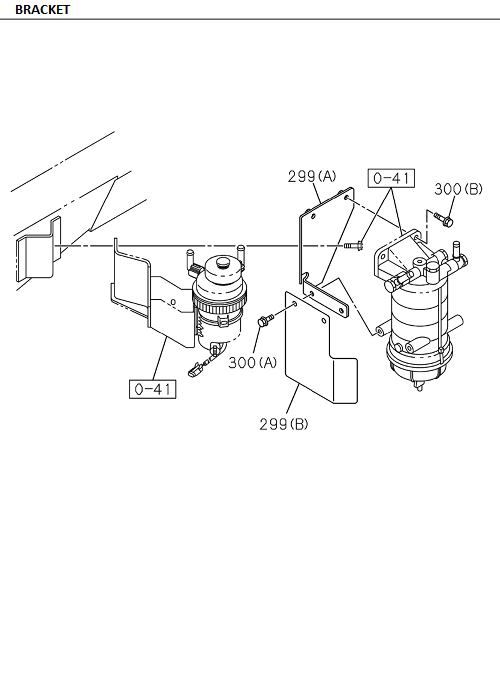

| 299 |
I7-55264 455-A |
|
BRACKET; FUEL FILTER |
1 |
2506- |
|
TRAGA |
(B) GUARD CHIPPING |
| 1 |

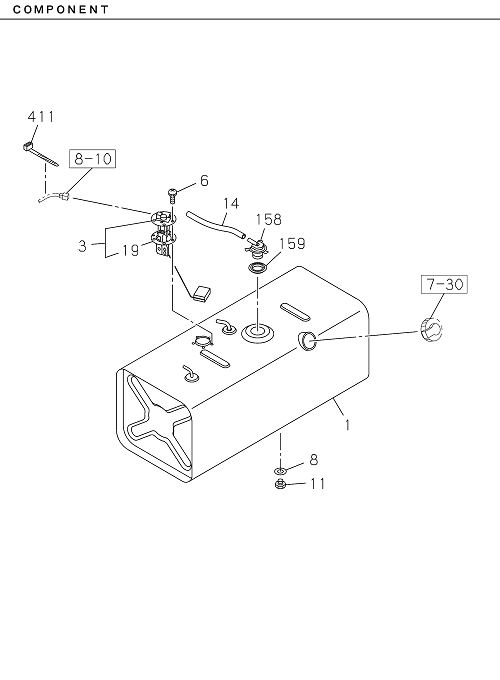

I8-98249 434-A |
|
TANK FUEL |
1 |
2204- |
|
TRAGA |
720X310X275 50L |
| 001 |
I8-98249 434-A |
|
TANK; FUEL |
1 |
2204- |
|
TRAGA |
720X310X275 50L |
| 299 |
I4-SPART 388-A |
|
BRACKET; FUEL FILTER |
1 |
2506- |
|
TRAGA |
(A) |
| 003 |
I8-98064 991-0 |
|
UNIT; FUEL TANK,SUB |
1 |
2204- |
|
TRAGA |
|
| 158 |
I8-97179 645-0 |
|
VALVE; ROLL OVER & FLOAT |
1 |
2204- |
|
TRAGA |
|
| 011 |
I8-97491 739-A |
|
PLUG; DRAIN,FUEL TANK |
1 |
2204- |
|
TRAGA |
M14X13.5 |
| 008 |
I8-97491 808-A |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
2204- |
|
TRAGA |
ID=14 OD=19.7 |
| 300 |
I0-28650 820-0 |
|
BOLT; BRKT TO BODY |
2 |
2506- |
|
TRAGA |
(A) M8X20 FLANGE |

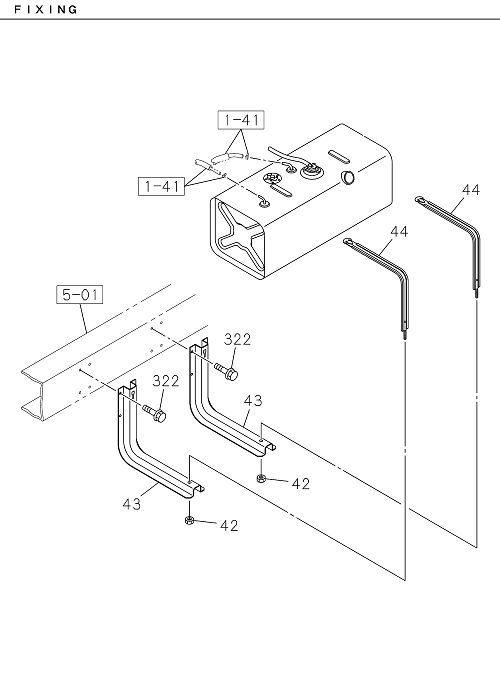

| 44 |
I8-98259 753-A |
|
BAND FUEL TANK |
2 |
2204- |
|
TRAGA |
|
| 042 |
I0-91110 508-0 |
|
NUT; SUPPORT BELT |
4 |
2204- |
|
TRAGA |
M8 |
| 19 |
I5-83148 001-0 |
|
GASKET FUEL TANK UNIT |
1 |
2204- |
|
TRAGA |
|
| 3 |
I8-98064 991-0 |
|
UNIT FUEL TANK,SUB |
1 |
2204- |
|
TRAGA |
|
| 411 |
I5-09707 031-1 |
|
CLIP FUEL TANK UNIT HARNESS |
1 |
2204- |
|
TRAGA |
L=140 |
| 43 |
I8-98259 752-A |
|
BRACKET FUEL TANK |
2 |
2204- |
|
TRAGA |
|
| 300 |
I0-28651 030-0 |
|
BOLT; BRKT TO BODY |
2 |
2506- |
|
TRAGA |
(B) M10X30 FLANGE |
| 044 |
I8-98259 753-A |
|
BAND; FUEL TANK |
2 |
2204- |
|
TRAGA |
|
| 158 |
I8-97179 645-0 |
|
VALVE ROLL OVER & FLOAT |
1 |
2204- |
|
TRAGA |
|
| 42 |
I0-91110 508-0 |
|
NUT SUPPORT BELT |
4 |
2204- |
|
TRAGA |
M8 |
| 159 |
I8-97326 488-0 |
|
SEAL ROLL OVER & FLOAT VALVE |
1 |
2204- |
|
TRAGA |
ID=28 OD=53 |
| 159 |
I8-97326 488-0 |
|
SEAL; ROLL OVER & FLOAT VALVE |
1 |
2204- |
|
TRAGA |
ID=28 OD=53 |
| 8 |
I8-97491 808-A |
|
GASKET DRAIN PLUG,FUEL TANK |
1 |
2204- |
|
TRAGA |
ID=14 OD=19.7 |
| 322 |
I0-28661 030-0 |
|
BOLT BRKT FIX |
8 |
2204- |
|
TRAGA |
M10X30 FLANGE |
| 14 |
I8-98259 662-A |
|
HOSE BREATHER,OUTLET |
1 |
2204- |
|
TRAGA |
|
| 411 |
I5-09707 031-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
2204- |
|
TRAGA |
L=140 |
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
2204- |
|
TRAGA |
|
| 043 |
I8-98259 752-A |
|
BRACKET; FUEL TANK |
2 |
2204- |
|
TRAGA |
|
| 322 |
I0-28661 030-0 |
|
BOLT; BRKT FIX |
8 |
2204- |
|
TRAGA |
M10X30 FLANGE |
| 11 |
I8-97491 739-A |
|
PLUG DRAIN,FUEL TANK |
1 |
2204- |
|
TRAGA |
M14X13.5 |
| 6 |
I0-36220 512-0 |
|
SCREW TANK UNIT TO SUB FUEL TANK |
5 |
2204- |
|
TRAGA |
M5X12 W/LK WASHER |
