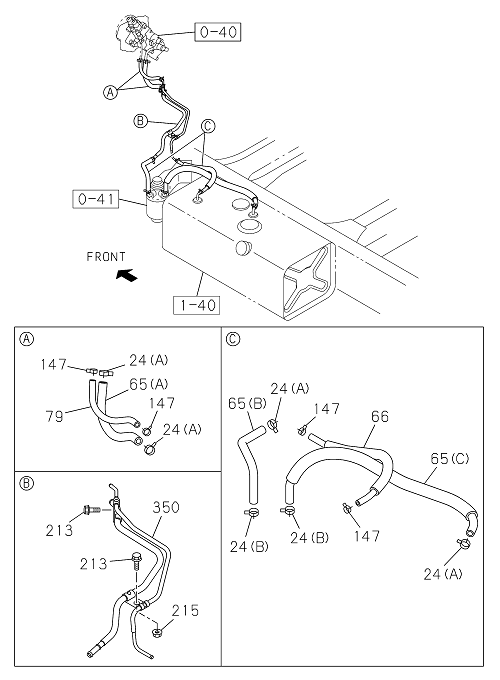

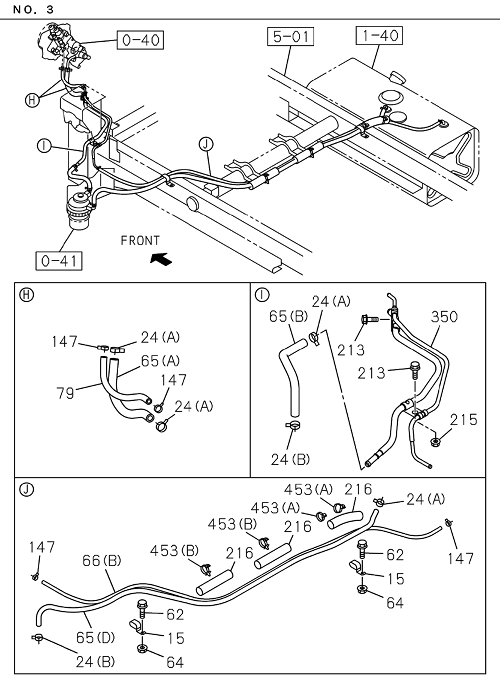

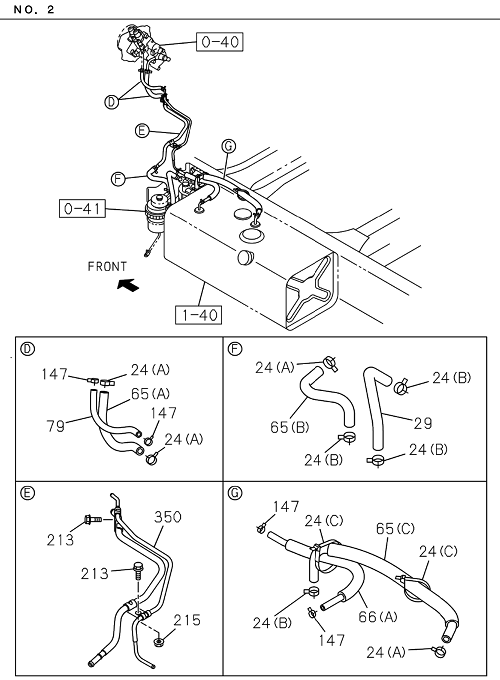

1-41 | FUEL PIPING CHASSIS
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 65 | I8-97548 041-A | HOSE FUEL,DELIVERY PIPE | 1 | 2204- | TRAGA | (A) | ||
| 66 | I8-98072 318-A | HOSE FUEL,RETURN PIPE | 1 | 2204- | TRAGA | |||
| 215 | I7-05108 010-A | NUT FUEL PIPE FIX | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 24 | I8-98150 356-0 | CLIP FUEL HOSE | 2 | 2204- | TRAGA | (B) ID=19 | ||
| 147 | I8-98150 358-0 | CLIP FUEL PIPE TO HOSE | 4 | 2204- | TRAGA | ID=12 | ||
| 24 | I8-98008 098-0 | CLIP FUEL HOSE | 4 | 2204- | TRAGA | (A) ID=16 | ||
| 65 | I8-97517 709-A | HOSE FUEL,DELIVERY PIPE | 1 | 2204- | TRAGA | (B) | ||
| 79 | I0-01855 300-0 | HOSE FUEL,PUMP TO PIPE,RETURN | 1 | 2204- | TRAGA | L=220 SERVICED BY L=3000 | ||
| 65 | I8-97517 710-A | HOSE FUEL,DELIVERY PIPE | 1 | 2204- | TRAGA | (C) | ||
| 350 | I8-97517 707-A | PIPE FUEL,DEL & RET | 1 | 2204- | TRAGA | |||
| 213 | I0-28650 825-0 | BOLT FUEL PIPE FIX | 2 | 2204- | TRAGA | M8X25 FLANGE |
