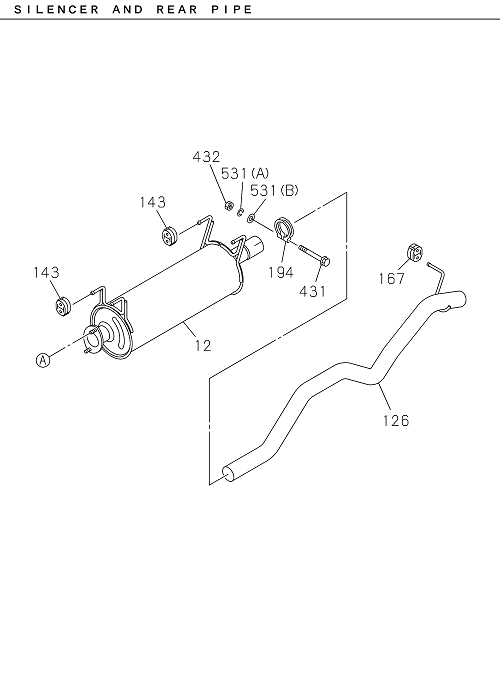

1-50 | EXHAUST PIPE AND SILENCER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-97096 192-1 | NUT EXH PIPE | 2 | 2204- | TRAGA | M10 FLANGE | ||
| 12 | I8-97518 111-A | SILENCER ASM EXH | 1 | 2204- | TRAGA | |||
| 5 | I8-97529 301-A | PROTECTOR HEAT | 1 | 2204- | TRAGA | |||
| 531 | I0-91614 508-0 | WASHER CLAMP | 1 | 2204- | TRAGA | (B) ID=8.4 OD=16 | ||
| 198 | I8-97529 300-A | BRACKET CONV MTG | 1 | 2204- | TRAGA | (D) | ||
| 541 | I8-97378 062-0 | STUD CONV TO PIPE | 4 | 2204- | TRAGA | M8X25 L=36 | ||
| 84 | I8-94328 352-1 | GASKET EXH PIPE | 1 | 2204- | TRAGA | ID=64.7 | ||
| 198 | I8-97524 512-A | BRACKET CONV MTG | 1 | 2204- | TRAGA | (B) | ||
| 143 | I8-97166 498-1 | RUBBER SUPPORT | 4 | 2204- | TRAGA | |||
| 198 | I8-97553 878-A | BRACKET CONV MTG | 1 | 2204- | TRAGA | (A) | ||
| 432 | I0-91110 508-0 | NUT CLAMP | 1 | 2204- | TRAGA | M8 | ||
| 167 | I8-97166 498-1 | HANGER EXH PIPE | 1 | 2204- | TRAGA | |||
| 329 | I0-91180 110-0 | NUT EXH PIPE TO PIPE | 2 | 2204- | TRAGA | M10 FLANGE | ||
| 1 | I8-97518 109-A | PIPE EXH | 1 | 2204- | TRAGA | |||
| 2 | I8-97381 456-0 | GASKET PIPE TO MANIF | 1 | 2204- | TRAGA | |||
| 531 | I0-91510 508-0 | WASHER CLAMP | 1 | 2204- | TRAGA | (A) ID=8.2 | ||
| 178 | I8-98268 402-0 | GASKET CONV TO MANIF | 1 | 2204- | TRAGA | |||
| 175 | I8-97665 585-A | CONVERTER CATALYST | 1 | 2204- | TRAGA | |||
| 211 | I8-97161 607-0 | NUT CONV | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 126 | I8-98292 906-A | PIPE EXH,RR | 1 | 2204- | TRAGA | |||
| 194 | I8-98292 905-A | CLAMP TAIL PIPE | 1 | 2204- | TRAGA | |||
| 198 | I8-97529 299-A | BRACKET CONV MTG | 1 | 2204- | TRAGA | (C) | ||
| 431 | I0-28050 870-0 | BOLT CLAMP | 1 | 2204- | TRAGA | M8X70 FLANGE |
