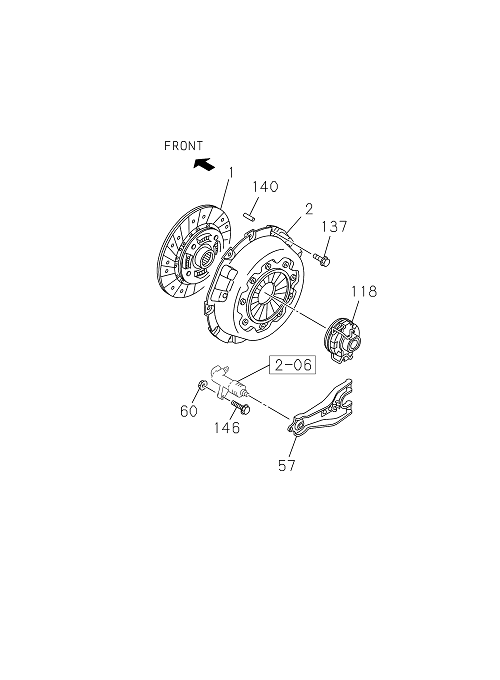

2-01 | CLUTCH
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 146 | I0-28051 290-0 | BOLT SLAVE CYL TO TRANS CASE | 2 | 2204- | TRAGA | M12X90 FLANGE | ||
| 1 | I8-97695 448-A | DISC CLUTCH | 1 | 2204- | TRAGA | |||
| 137 | I0-28050 816-0 | BOLT CLU COVER | 6 | 2204- | TRAGA | M8X16 FLANGE | ||
| 2 | I8-94435 011-A | PLATE ASM PRESSURE,CLU | 1 | 2204- | TRAGA | |||
| 1 | I6-97695 448-0 | DISC CLUTCH | 1 | 2204- | TRAGA | (IADG) | ||
| 140 | I9-09878 532-0 | PIN STRAIGHT | 3 | 2204- | TRAGA | OD=6 L=24 | ||
| 57 | I8-97365 654-0 | FORK SHIFT,CLU | 1 | 2204- | TRAGA | |||
| 118 | I6-97333 487-0 | BEARING CLU RELEASE | 1 | 2204- | TRAGA | (IADG) | ||
| 118 | I8-97333 487-0 | BEARING CLU RELEASE | 1 | 2204- | TRAGA | |||
| 60 | I0-91180 112-0 | NUT SLAVE CYL | 1 | 2204- | TRAGA | M12 FLANGE |
