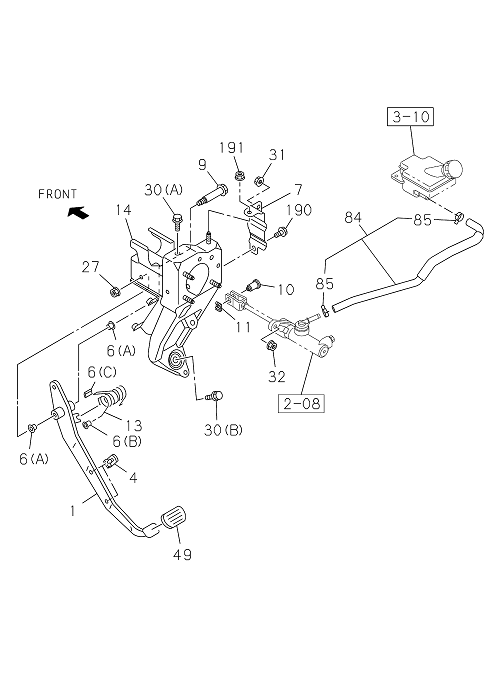

2-03 | CLUTCH PEDAL AND CONTROL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 030 | I0-28661 025-0 | BOLT; CLU MTG BRKT | 1 | 2204- | TRAGA | (A) M10X25 FLANGE | ||
| 6 | I8-97853 620-0 | BUSHING CLU PEDAL | 1 | 2204- | TRAGA | (C) | ||
| 004 | I8-97853 534-1 | STOPPER; CLU PEDAL | 2 | 2204- | TRAGA | |||
| 085 | I8-98168 080-0 | CLIP; HOSE TO M/CYL | 2 | 2204- | TRAGA | |||
| 10 | I8-97359 812-0 | PIN CLU PEDAL | 1 | 2204- | TRAGA | |||
| 049 | I8-97853 413-2 | RUBBER; PAD,CLU PEDAL | 1 | 2204- | TRAGA | |||
| 9 | I8-97866 667-0 | PIN CLU PEDAL | 1 | 2204- | TRAGA | |||
| 006 | I8-97853 619-0 | BUSHING; CLU PEDAL | 2 | 2204- | TRAGA | (B) | ||
| 49 | I8-97853 413-2 | RUBBER PAD,CLU PEDAL | 1 | 2204- | TRAGA | |||
| 010 | I8-97359 812-0 | PIN; CLU PEDAL | 1 | 2204- | TRAGA | |||
| 191 | I7-05108 010-A | NUT BRKT,BRAKE & CLU PEDAL FIX | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 27 | I8-94156 626-0 | NUT FULCRUM PIN | 1 | 2204- | TRAGA | M10 FLANGE | ||
| 013 | I8-97853 221-1 | SPRING; ASSIST,CLU PEDAL | 1 | 2204- | TRAGA | |||
| 030 | I8-97313 188-0 | BOLT; CLU MTG BRKT | 1 | 2204- | TRAGA | (B) M10X22 W/PL WASHER | ||
| 009 | I8-97866 667-0 | PIN; CLU PEDAL | 1 | 2204- | TRAGA | |||
| 191 | I7-05108 010-A | NUT; BRKT,BRAKE & CLU PEDAL FIX | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 084 | I8-98259 768-A | HOSE; RUBBER,CLU LINE | 1 | 2204- | TRAGA | |||
| 006 | I8-97853 620-0 | BUSHING; CLU PEDAL | 1 | 2204- | TRAGA | (C) | ||
| 027 | I8-94156 626-0 | NUT; FULCRUM PIN | 1 | 2204- | TRAGA | M10 FLANGE | ||
| 14 | I8-98259 107-0 | BRACKET ASM CLU PEDAL MTG | 1 | 2204- | TRAGA | |||
| 007 | I8-98259 093-A | BRACKET; CLU PEDAL | 1 | 2204- | TRAGA | |||
| 30 | I8-97313 188-0 | BOLT CLU MTG BRKT | 1 | 2204- | TRAGA | (B) M10X22 W/PL WASHER | ||
| 190 | I0-28450 816-0 | BOLT BRKT,BRAKE & CLU PEDAL FIX | 1 | 2204- | TRAGA | M8X16 FLANGE | ||
| 13 | I8-97853 221-1 | SPRING ASSIST,CLU PEDAL | 1 | 2204- | TRAGA | |||
| 1 | I8-97853 219-2 | PEDAL CLU | 1 | 2204- | TRAGA | |||
| 11 | I8-94279 912-0 | PIN SNAP,PUSH ROD TO PEDAL | 1 | 2204- | TRAGA | |||
| 84 | I8-98259 768-A | HOSE RUBBER,CLU LINE | 1 | 2204- | TRAGA | |||
| 32 | I8-94279 050-0 | NUT BRKT TO CLU M/CYL | 2 | 2204- | TRAGA | M8 W/LK WASHER | ||
| 006 | I8-94238 596-0 | BUSHING; CLU PEDAL | 2 | 2204- | TRAGA | (A) | ||
| 6 | I8-97853 619-0 | BUSHING CLU PEDAL | 2 | 2204- | TRAGA | (B) | ||
| 011 | I8-94279 912-0 | PIN; SNAP,PUSH ROD TO PEDAL | 1 | 2204- | TRAGA | |||
| 30 | I0-28661 025-0 | BOLT CLU MTG BRKT | 1 | 2204- | TRAGA | (A) M10X25 FLANGE | ||
| 7 | I8-98259 093-A | BRACKET CLU PEDAL | 1 | 2204- | TRAGA | |||
| 001 | I8-97853 219-2 | PEDAL; CLU | 1 | 2204- | TRAGA | |||
| 85 | I8-98168 080-0 | CLIP HOSE TO M/CYL | 2 | 2204- | TRAGA | |||
| 014 | I8-98259 107-0 | BRACKET ASM; CLU PEDAL MTG | 1 | 2204- | TRAGA | |||
| 031 | I8-94279 050-0 | NUT; MTG BRKT TO BODY | 2 | 2204- | TRAGA | M8 W/LK WASHER | ||
| 6 | I8-94238 596-0 | BUSHING CLU PEDAL | 2 | 2204- | TRAGA | (A) | ||
| 31 | I8-94279 050-0 | NUT MTG BRKT TO BODY | 2 | 2204- | TRAGA | M8 W/LK WASHER | ||
| 190 | I0-28450 816-0 | BOLT; BRKT,BRAKE & CLU PEDAL FIX | 1 | 2204- | TRAGA | M8X16 FLANGE | ||
| 4 | I8-97853 534-1 | STOPPER CLU PEDAL | 2 | 2204- | TRAGA | |||
| 032 | I8-94279 050-0 | NUT; BRKT TO CLU M/CYL | 2 | 2204- | TRAGA | M8 W/LK WASHER |
