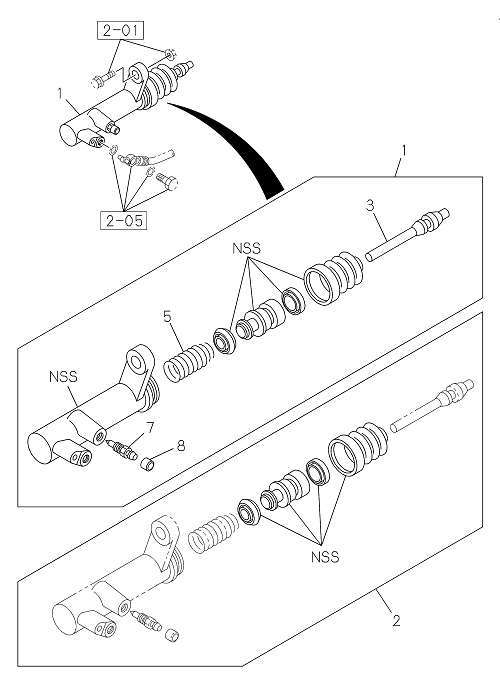

2-06 | CLUTCH SLAVE CYLINDER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I5-87832 405-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 2204- | TRAGA | |||
| 5 | I8-97496 291-0 | SPRING ASM PISTON,SLAVE CYL | 1 | 2204- | TRAGA | |||
| 008 | I8-97940 638-0 | CAP; BLEEDER,SLAVE CYL | 1 | 2204- | TRAGA | OD=10 | ||
| 003 | I8-97945 722-0 | ROD; PUSH,SLAVE CYL | 1 | 2204- | TRAGA | |||
| 001 | I8-98259 804-0 | CYLINDER; SLAVE,CLU | 1 | 2204- | TRAGA | |||
| 2 | I5-87832 405-0 | REPAIR KIT CLU SLAVE CYL | 1 | 2204- | TRAGA | |||
| 002 | I6-87832 405-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 2204- | TRAGA | (IADG) | ||
| 1 | I8-98259 804-0 | CYLINDER SLAVE,CLU | 1 | 2204- | TRAGA | |||
| 3 | I8-97945 722-0 | ROD PUSH,SLAVE CYL | 1 | 2204- | TRAGA | |||
| 2 | I6-87832 405-0 | REPAIR KIT CLU SLAVE CYL | 1 | 2204- | TRAGA | (IADG) | ||
| 1 | I6-98259 804-0 | CYLINDER SLAVE,CLU | 1 | 2204- | TRAGA | (IADG) | ||
| 005 | I8-97496 291-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 2204- | TRAGA | |||
| 007 | I8-98020 477-0 | SCREW; BLEEDER,SLAVE CYL | 1 | 2204- | TRAGA | M8X10 | ||
| 7 | I8-98020 477-0 | SCREW BLEEDER,SLAVE CYL | 1 | 2204- | TRAGA | M8X10 | ||
| 001 | I6-98259 804-0 | CYLINDER; SLAVE,CLU | 1 | 2204- | TRAGA | (IADG) | ||
| 8 | I8-97940 638-0 | CAP BLEEDER,SLAVE CYL | 1 | 2204- | TRAGA | OD=10 |
