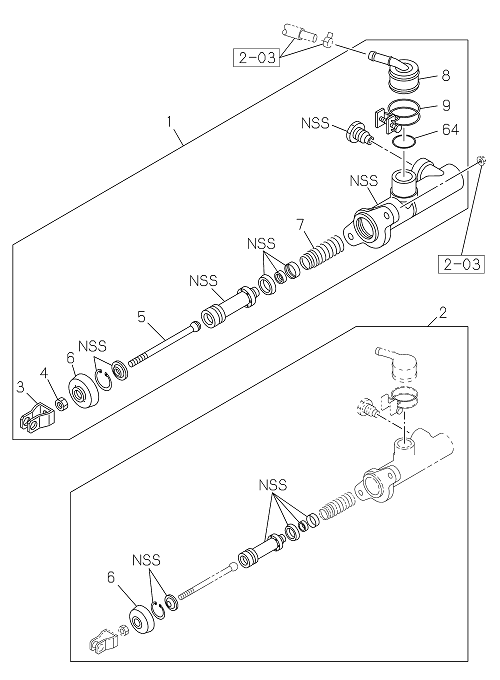

2-08 | CLUTCH MASTER CYLINDER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 008 | I8-97163 191-0 | CONNECTOR; PIPE,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 001 | I8-98117 639-2 | CYLINDER ASM; CLUTCH MASTER | 1 | 2204- | TRAGA | |||
| 004 | I0-91111 508-A | NUT; JAW JOINT | 1 | 2204- | TRAGA | M8 | ||
| 002 | I5-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2204- | TRAGA | |||
| 8 | I8-97163 191-0 | CONNECTOR PIPE,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 7 | I8-97167 780-0 | SPRING ASM CLU M/CYL | 1 | 2204- | TRAGA | |||
| 1 | I6-98117 639-0 | CYLINDER ASM CLUTCH MASTER | 1 | 2204- | TRAGA | (IADG) | ||
| 001 | I6-98117 639-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2204- | TRAGA | (IADG) | ||
| 6 | I8-94412 200-0 | BOOT CLU M/CYL | 1 | 2204- | TRAGA | |||
| 003 | I8-97167 770-0 | JOINT; JAW,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 1 | I8-98117 639-2 | CYLINDER ASM CLUTCH MASTER | 1 | 2204- | TRAGA | |||
| 002 | I6-87832 226-0 | REPAIR KIT; CLU M/CYL | 1 | 2204- | TRAGA | (IADG) | ||
| 007 | I8-97167 780-0 | SPRING ASM; CLU M/CYL | 1 | 2204- | TRAGA | |||
| 064 | I8-97167 767-0 | GASKET; CONNECTOR | 1 | 2204- | TRAGA | |||
| 9 | I8-97167 773-0 | CLAMP PIPE CONNECTOR,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 5 | I8-97167 768-0 | ROD PUSH,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 2 | I6-87832 226-0 | REPAIR KIT CLU M/CYL | 1 | 2204- | TRAGA | (IADG) | ||
| 4 | I0-91111 508-A | NUT JAW JOINT | 1 | 2204- | TRAGA | M8 | ||
| 2 | I5-87832 226-0 | REPAIR KIT CLU M/CYL | 1 | 2204- | TRAGA | |||
| 3 | I8-97167 770-0 | JOINT JAW,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 009 | I8-97167 773-0 | CLAMP; PIPE CONNECTOR,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 005 | I8-97167 768-0 | ROD; PUSH,CLU M/CYL | 1 | 2204- | TRAGA | |||
| 64 | I8-97167 767-0 | GASKET CONNECTOR | 1 | 2204- | TRAGA | |||
| 006 | I8-94412 200-0 | BOOT; CLU M/CYL | 1 | 2204- | TRAGA |
