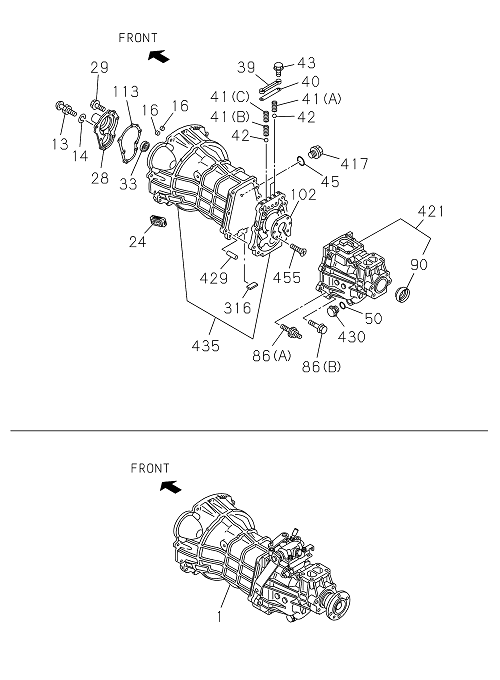

2-20 | MANUAL TANSMISSION ASM AND CASE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 41 | I8-97214 402-0 | SPRING DETENT BALL | 1 | 2204- | TRAGA | (B) L=27.6 | ||
| 39 | I8-98035 571-0 | PLATE DETENT SPR | 1 | 2204- | TRAGA | |||
| 40 | I8-97083 600-1 | GASKET DETENT SPR PLATE | 1 | 2204- | TRAGA | |||
| 102 | I8-97138 673-0 | RETAINER BRG UPR,MAINSHAFT | 1 | 2204- | TRAGA | |||
| 24 | I8-94156 700-0 | COVER CHECK HOLE,DUST | 1 | 2204- | TRAGA | |||
| 33 | I8-97947 839-0 | SEAL OIL,FRT COVER,T/M | 1 | 2204- | TRAGA | |||
| 42 | I8-94435 335-0 | BALL DETENT,GEAR SHIFT | 3 | 2204- | TRAGA | |||
| 429 | I5-09740 018-1 | PIN STRAIGHT | 2 | 2204- | TRAGA | OD=10 L=40 | ||
| 24 | I6-94156 700-0 | COVER CHECK HOLE,DUST | 1 | 2204- | TRAGA | (IADG) | ||
| 421 | I8-97978 017-1 | COVER RR,TRANS | 1 | 2204- | TRAGA | |||
| 45 | I8-97115 712-0 | GASKET FILLER PLUG | 1 | 2204- | TRAGA | ID=17 | ||
| 316 | I8-94249 524-2 | MAGNET TRANS CASE | 1 | 2204- | TRAGA | |||
| 13 | I8-97072 827-0 | SUPPORT SHIFT FORK | 1 | 2204- | TRAGA | L=47.5 | ||
| 430 | I8-97365 374-0 | PLUG OIL DRAIN | 1 | 2204- | TRAGA | M20X12 W/MAGNET | ||
| 29 | I8-97365 376-0 | BOLT FRT COVER | 6 | 2204- | TRAGA | M8X22 FLANGE | ||
| 16 | I8-97358 601-0 | PLUG SHIFT ROD | 2 | 2204- | TRAGA | OD=14 | ||
| 417 | I8-97365 373-0 | PLUG OIL FILLER,TRANS | 1 | 2204- | TRAGA | |||
| 1 | I8-97536 925-0 | TRANSMISSION ASM MANUAL | 1 | 2204- | TRAGA | |||
| 50 | I8-97115 712-0 | GASKET DRAIN PLUG | 1 | 2204- | TRAGA | ID=17 | ||
| 28 | I8-97381 406-0 | COVER FRT,TRANS CASE | 1 | 2204- | TRAGA | |||
| 43 | I8-97365 376-0 | BOLT PLATE TO PLATE | 2 | 2204- | TRAGA | M8X22 FLANGE | ||
| 41 | I8-94320 193-0 | SPRING DETENT BALL | 2 | 2204- | TRAGA | (A) L=26.8 | ||
| 41 | I8-97214 403-0 | SPRING DETENT BALL | 1 | 2204- | TRAGA | (C) L=26.6 | ||
| 14 | I0-91510 512-0 | WASHER LK,SUPPORT | 1 | 2204- | TRAGA | ID=12.2 | ||
| 455 | I8-98050 437-0 | SCREW BRG RET | 4 | 2204- | TRAGA | M8X22 | ||
| 435 | I8-97527 949-0 | CASE TRANS | 1 | 2204- | TRAGA | |||
| 86 | I8-98035 672-0 | BOLT RR COVER | 5 | 2204- | TRAGA | (B) M10X55 FLANGE | ||
| 113 | I8-97083 589-0 | GASKET FRT COVER TO TRANS CASE | 1 | 2204- | TRAGA | |||
| 86 | I8-97305 468-0 | BOLT RR COVER | 3 | 2204- | TRAGA | (A) M10X18 M10X55 L=86.8 | ||
| 90 | I8-97046 707-2 | SEAL OIL,RR COVER | 1 | 2204- | TRAGA |
