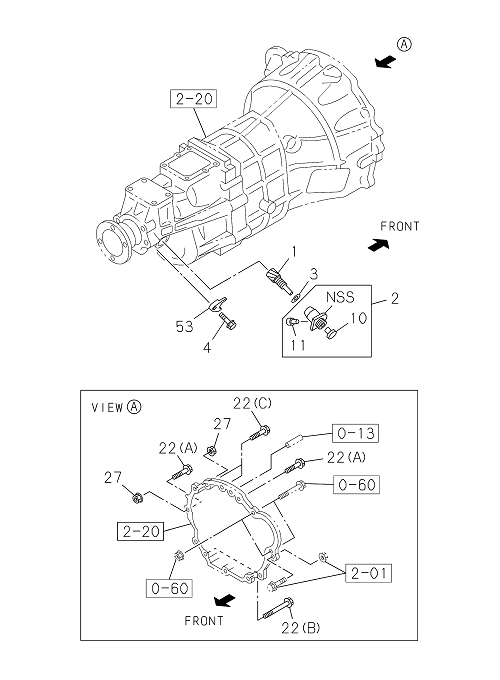

2-25 | SPEEDOMETER DRIVEN GEAR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 53 | I8-98035 572-0 | PLATE LOCK,DRIVEN GEAR | 1 | 2204- | TRAGA | |||
| 10 | I8-97131 328-1 | SEAL OIL,DRIVE GEAR | 1 | 2204- | TRAGA | |||
| 11 | I8-94446 571-1 | FILTER BUSHING,SPEEDOMETER DRIVEN GEAR | 1 | 2204- | TRAGA | |||
| 22 | I0-28051 240-0 | BOLT TRANS CASE TO ENG | 1 | 2204- | TRAGA | (C) M12X40 FLANGE | ||
| 3 | I9-09921 100-0 | GASKET BUSHING | 1 | 2204- | TRAGA | ID=21.7 OD=28.7 | ||
| 22 | I0-28051 040-0 | BOLT TRANS CASE TO ENG | 4 | 2204- | TRAGA | (A) M10X40 FLANGE | ||
| 4 | I0-28050 820-0 | BOLT RET,DRIVEN GEAR | 1 | 2204- | TRAGA | M8X20 FLANGE | ||
| 1 | I8-97038 412-2 | GEAR DRIVEN,SPD | 1 | 2204- | TRAGA | Z=15 | ||
| 2 | I8-97021 133-4 | BUSHING DRIVEN GEAR, SPEEDOMETER | 1 | 2204- | TRAGA | |||
| 22 | I0-28051 060-0 | BOLT TRANS CASE TO ENG | 2 | 2204- | TRAGA | (B) M10X60 FLANGE | ||
| 27 | I0-91180 110-0 | NUT CLU HSG TO TRANS | 2 | 2204- | TRAGA | M10 FLANGE |
