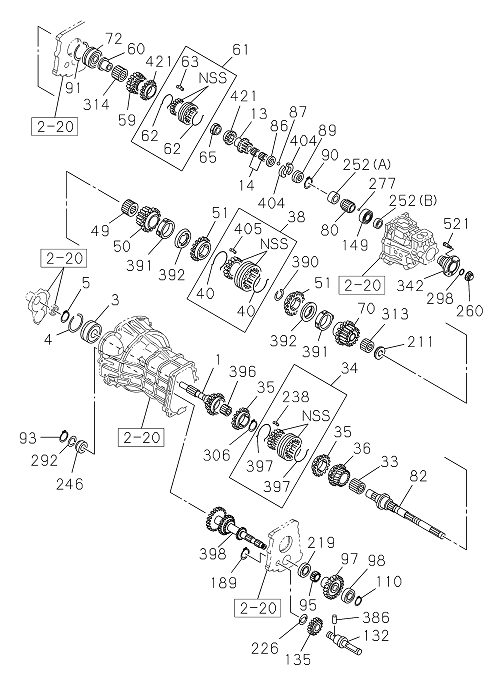

2-26 | MANUAL TANSMISSION GEAR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 93 | I9-09180 025-0 | RING SNAP,COUNTER FRT BRG | 1 | 2204- | TRAGA | ID=23.2 | ||
| 390 | I8-94422 089-1 | RING SNAP,CLU HUB | 1 | 2204- | TRAGA | T=1.85 YELLOW | ||
| 40 | I8-94448 045-0 | SPRING INSERT,LOW & 2ND | 2 | 2204- | TRAGA | |||
| 390 | I8-94422 090-2 | RING SNAP,CLU HUB | 1 | 2204- | TRAGA | T=1.90 BLUE | ||
| 13 | I8-98210 227-0 | GEAR 5TH,MAINSHAFT | 1 | 2204- | TRAGA | Z=22 | ||
| 51 | I8-98115 804-0 | RING BLOCK,LOW & 2ND | 2 | 2204- | TRAGA | Z=36 | ||
| 404 | I8-94421 892-0 | PLATE THRUST | 4 | 2204- | TRAGA | |||
| 1 | I8-98210 240-0 | SHAFT TOP GEAR,TRANS | 1 | 2204- | TRAGA | Z=25 | ||
| 306 | I8-97129 615-0 | RING SNAP,MAINSHAFT | 1 | 2204- | TRAGA | T=1.90 BLUE | ||
| 86 | I8-94422 112-2 | WASHER THRUST,5TH | 1 | 2204- | TRAGA | T=8.10 GREEN | ||
| 386 | I9-08150 640-0 | PIN REV SHAFT | 1 | 2204- | TRAGA | OD=6 L=40 | ||
| 342 | I8-94377 558-2 | FLANGE OUTPUT | 1 | 2204- | TRAGA | |||
| 89 | I8-94422 395-0 | RING RET,THRUST RING | 1 | 2204- | TRAGA | ID=31.8 | ||
| 34 | I8-97188 798-0 | SYNCHRONIZER 4TH & 3RD | 1 | 2204- | TRAGA | |||
| 33 | I8-94161 990-2 | BEARING NEEDLE,3RD GEAR | 1 | 2204- | TRAGA | |||
| 211 | I8-94148 935-0 | BEARING THRUST NEEDLE,1ST GEAR | 1 | 2204- | TRAGA | |||
| 3 | I8-97943 879-0 | BEARING TOP GEAR SHAFT | 1 | 2204- | TRAGA | |||
| 246 | I8-97029 600-4 | BEARING ROLLER,COUNTER SHAFT FRT | 1 | 2204- | TRAGA | |||
| 82 | I8-98258 863-1 | SHAFT MAIN,TRANS | 1 | 2204- | TRAGA | Z=28-34-26-27 | ||
| 189 | I8-94422 101-0 | RING SNAP,REV,GEAR | 1 | 2204- | TRAGA | T=1.30 YELLOW | ||
| 405 | I8-94363 062-1 | INSERT SYN,LOW & 2ND | 3 | 2204- | TRAGA | |||
| 397 | I8-94422 075-0 | SPRING INSERT,4TH & 3RD | 2 | 2204- | TRAGA | |||
| 260 | I8-94385 985-1 | NUT MAINSHAFT END | 1 | 2204- | TRAGA | M24 | ||
| 61 | I8-97188 800-0 | SYNCHRONIZER REV & 5TH | 1 | 2204- | TRAGA | |||
| 521 | I8-97062 766-0 | BOLT | 4 | 2204- | TRAGA | |||
| 226 | I8-94223 069-1 | WASHER THRUST,REV GEAR, COUNTER | 1 | 2204- | TRAGA | ID=30.0 | ||
| 65 | I8-94422 071-1 | NUT MAINSHAFT | 1 | 2204- | TRAGA | M34 | ||
| 298 | I9-09561 326-0 | GASKET MAINSHAFT | 1 | 2204- | TRAGA | |||
| 110 | I8-94422 104-0 | RING SNAP,COUNTER BRG | 1 | 2204- | TRAGA | T=1.20 YELLOW | ||
| 306 | I8-97129 617-0 | RING SNAP,MAINSHAFT | 1 | 2204- | TRAGA | T=1.80 WHITE | ||
| 189 | I8-94422 102-0 | RING SNAP,REV,GEAR | 1 | 2204- | TRAGA | T=1.40 BLUE | ||
| 306 | I8-97129 616-0 | RING SNAP,MAINSHAFT | 1 | 2204- | TRAGA | T=1.85 YELLOW | ||
| 63 | I8-98189 965-0 | INSERT SYN,REV & 5TH | 3 | 2204- | TRAGA | |||
| 38 | I8-94363 059-1 | SYNCHRONIZER LOW & 2ND | 1 | 2204- | TRAGA | |||
| 396 | I8-98172 355-0 | BEARING NEEDLE,MAINSHAFT | 1 | 2204- | TRAGA | |||
| 90 | I9-09180 032-0 | RING SNAP,THRUST RING | 1 | 2204- | TRAGA | ID=29.6 | ||
| 80 | I8-97038 411-1 | GEAR SPD DRIVE | 1 | 2204- | TRAGA | Z=4 | ||
| 252 | I8-98258 864-1 | SPACER | 1 | 2204- | TRAGA | (A) | ||
| 35 | I8-94151 510-3 | RING BLOCK,4TH & 3RD | 2 | 2204- | TRAGA | Z=45 | ||
| 98 | I8-97018 535-1 | BEARING BALL,COUNTER END | 1 | 2204- | TRAGA | |||
| 86 | I8-94422 110-2 | WASHER THRUST,5TH | 1 | 2204- | TRAGA | T=7.90 WHITE | ||
| 95 | I8-94377 433-0 | GEAR REV,COUNTER | 1 | 2204- | TRAGA | Z=19 | ||
| 391 | I8-94363 056-0 | RING INSIDE,SYN | 2 | 2204- | TRAGA | OD=95.8 | ||
| 110 | I8-94422 108-0 | RING SNAP,COUNTER BRG | 1 | 2204- | TRAGA | T=1.60 BROWN | ||
| 4 | I8-94422 083-0 | RING SNAP,BRG TO TOP GEAR SHAFT | 1 | 2204- | TRAGA | |||
| 252 | I8-98258 865-1 | SPACER | 1 | 2204- | TRAGA | (B) | ||
| 59 | I8-98210 228-0 | GEAR REV MAINSHAFT | 1 | 2204- | TRAGA | Z=41 | ||
| 36 | I8-98210 249-0 | GEAR 3RD,MAINSHAFT | 1 | 2204- | TRAGA | Z=31 | ||
| 132 | I8-98245 493-0 | SHAFT REV | 1 | 2204- | TRAGA | |||
| 421 | I8-97071 688-0 | RING BLOCK,REV & 5TH | 2 | 2204- | TRAGA | Z=36 | ||
| 49 | I9-00096 625-0 | BEARING NEEDLE,2ND GEAR | 1 | 2204- | TRAGA | |||
| 110 | I8-94422 106-0 | RING SNAP,COUNTER BRG | 1 | 2204- | TRAGA | T=1.40 PINK | ||
| 98 | I8-97018 535-A | BEARING BALL,COUNTER END | 1 | 2204- | TRAGA | (IADG) | ||
| 135 | I8-98233 606-0 | GEAR REV IDLER | 1 | 2204- | TRAGA | Z=33 | ||
| 149 | I8-94173 863-A | BEARING NEEDLE,MAINSHAFT,RR | 1 | 2204- | TRAGA | |||
| 110 | I8-94422 103-0 | RING SNAP,COUNTER BRG | 1 | 2204- | TRAGA | T=1.10 WHITE | ||
| 60 | I8-97031 079-0 | COLLAR REV MAIN | 1 | 2204- | TRAGA | |||
| 314 | I8-94422 064-0 | BEARING NEEDLE,REV GEAR | 1 | 2204- | TRAGA | |||
| 86 | I8-94422 113-2 | WASHER THRUST,5TH | 1 | 2204- | TRAGA | T=8.20 BLUE | ||
| 97 | I8-94377 434-0 | GEAR 5TH,COUNTER | 1 | 2204- | TRAGA | Z=50 | ||
| 62 | I8-98189 962-0 | SPRING INSERT,REV & 5TH | 2 | 2204- | TRAGA | |||
| 392 | I8-98115 793-0 | RING OUTSIDE,SYN | 2 | 2204- | TRAGA | OD=90.0 | ||
| 292 | I8-94422 081-0 | RING SNAP,BRG OUTER | 1 | 2204- | TRAGA | |||
| 238 | I8-94448 202-2 | INSERT | 3 | 2204- | TRAGA | |||
| 35 | I6-94151 510-0 | RING BLOCK,4TH & 3RD | 2 | 2204- | TRAGA | (IADG) Z=45 | ||
| 390 | I8-94422 088-2 | RING SNAP,CLU HUB | 1 | 2204- | TRAGA | T=1.80 WHITE | ||
| 398 | I8-97209 758-1 | GEAR COUNTER | 1 | 2204- | TRAGA | Z=46-32-25-19 | ||
| 149 | I6-94173 863-0 | BEARING NEEDLE,MAINSHAFT,RR | 1 | 2204- | TRAGA | (IADG) | ||
| 50 | I8-97301 183-1 | GEAR 2ND,MAINSHAFT | 1 | 2204- | TRAGA | Z=34 | ||
| 110 | I8-94422 107-0 | RING SNAP,COUNTER BRG | 1 | 2204- | TRAGA | T=1.50 GREEN | ||
| 313 | I8-94161 990-2 | BEARING NEEDLE,LOW GEAR | 1 | 2204- | TRAGA | |||
| 87 | I8-94201 356-0 | BALL THRUST WASHER | 1 | 2204- | TRAGA | |||
| 110 | I8-94422 105-0 | RING SNAP,COUNTER BRG | 1 | 2204- | TRAGA | T=1.30 BLUE | ||
| 189 | I8-94422 100-0 | RING SNAP,REV,GEAR | 1 | 2204- | TRAGA | T=1.20 WHITE | ||
| 277 | I8-94201 356-0 | BALL SPD DRIVE GEAR | 1 | 2204- | TRAGA | |||
| 70 | I8-97301 182-1 | GEAR 1ST,MAINSHAFT | 1 | 2204- | TRAGA | Z=45 | ||
| 14 | I8-98172 356-0 | BEARING NEEDLE,5TH | 1 | 2204- | TRAGA | |||
| 86 | I8-94422 111-2 | WASHER THRUST,5TH | 1 | 2204- | TRAGA | T=8.00 YELLOW | ||
| 5 | I8-97254 316-0 | RING SNAP,BRG TO TOP GEAR SHAFT | 1 | 2204- | TRAGA | ID=37.4 | ||
| 72 | I8-97943 878-0 | BEARING BALL,MAINSHAFT | 1 | 2204- | TRAGA | |||
| 91 | I8-94322 411-0 | RING SNAP,CENTER BRG, MAINSHAFT | 1 | 2204- | TRAGA | ID=76.2 | ||
| 219 | I8-94436 929-0 | BEARING BALL,CLUSTER,RR | 1 | 2204- | TRAGA |
