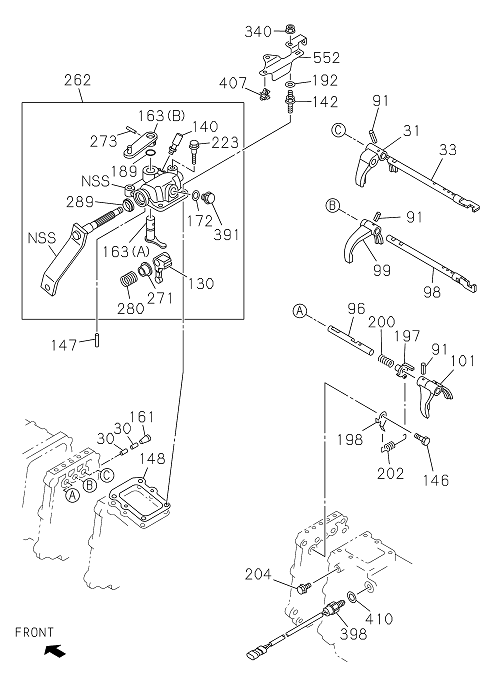

2-30 | GEAR SHIFTER AND QUADRANT BOX
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 96 | I8-97232 886-0 | ROD SHIFT,5TH | 1 | 2204- | TRAGA | |||
| 189 | I9-09720 511-0 | GASKET SELECT LEVER,CONT BOX | 1 | 2204- | TRAGA | |||
| 146 | I7-04508 025-A | BOLT REV INHIBITOR | 1 | 2204- | TRAGA | M8X20 FLANGE | ||
| 101 | I8-97109 504-2 | ARM SHIFT,REV & 5TH | 1 | 2204- | TRAGA | |||
| 273 | I1-09748 032-0 | PIN SPR,STOPPER | 1 | 2204- | TRAGA | L=25 OD=5 | ||
| 98 | I8-94421 914-5 | ROD SHIFT,TOP & 3RD | 1 | 2204- | TRAGA | |||
| 161 | I8-94239 543-1 | PLUG INTER LK HOLE | 1 | 2204- | TRAGA | |||
| 197 | I8-94448 201-2 | INHIBITOR REV SHIFT | 1 | 2204- | TRAGA | |||
| 410 | I9-09571 414-0 | GASKET REV SW | 1 | 2204- | TRAGA | ID=14.2 OD=20 | ||
| 130 | I8-98489 444-0 | LEVER SHIFT,INTERNAL | 1 | 2204- | TRAGA | |||
| 223 | I8-97541 228-0 | SCREW SET,QUAD BOX | 1 | 2204- | TRAGA | |||
| 262 | I8-98298 786-3 | BOX ASM SHIFT CONT | 1 | 2204- | TRAGA | |||
| 407 | I8-94232 618-0 | CLIP SWITCH HARNESS | 1 | 2204- | TRAGA | L=112 | ||
| 202 | I8-98300 835-1 | SPRING REV INHIBITOR,EXT | 1 | 2204- | TRAGA | |||
| 552 | I8-98300 834-0 | BRACKET | 1 | 2204- | TRAGA | |||
| 200 | I8-94448 805-1 | SPRING REV INHIBITOR,COMP | 1 | 2204- | TRAGA | |||
| 289 | I8-97037 396-0 | SEAL OIL,CONT SHAFT,QUAD BOX | 1 | 2204- | TRAGA | |||
| 204 | I8-98035 673-0 | STOPPER REV INHIBITOR | 1 | 2204- | TRAGA | |||
| 271 | I8-94257 234-1 | BUSHING QUAD BOX | 1 | 2204- | TRAGA | |||
| 398 | I8-98300 836-2 | SWITCH REV LAMP | 1 | 2204- | TRAGA | |||
| 163 | I8-98298 788-0 | LEVER SELECT,INTERNAL | 1 | 2204- | TRAGA | (A) 880X649X549 280L | ||
| 142 | I8-97365 378-0 | BOLT QUAD BOX | 4 | 2204- | TRAGA | M8X15,M8X25 L=49 | ||
| 99 | I8-94421 911-3 | ARM SHIFT,4TH & 3RD | 1 | 2204- | TRAGA | |||
| 163 | I8-98304 578-1 | LEVER SELECT,INTERNAL | 1 | 2204- | TRAGA | (B) | ||
| 30 | I5-33534 002-1 | PIN INTER LK | 2 | 2204- | TRAGA | OD=5.5 L=10 | ||
| 91 | I8-94171 541-0 | PIN SPR,SHIFT ARM | 3 | 2204- | TRAGA | D=4.2 L=25 | ||
| 391 | I8-98035 674-0 | PLUG SW HOLE | 1 | 2204- | TRAGA | M14X11 | ||
| 192 | I0-91614 608-0 | WASHER PL | 2 | 2204- | TRAGA | ID=8.4 OD=18 | ||
| 198 | I8-94448 199-0 | BRACKET REV INHIBITOR | 1 | 2204- | TRAGA | |||
| 172 | I9-09571 414-0 | GASKET NEUTRAL SW | 1 | 2204- | TRAGA | ID=14.2 OD=20 | ||
| 280 | I8-98300 833-1 | SPRING COIL TENSION | 1 | 2204- | TRAGA | |||
| 340 | I7-05108 010-A | NUT BRKT | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 33 | I8-94421 915-4 | ROD SHIFT,LOW & 2ND | 1 | 2204- | TRAGA | |||
| 31 | I8-94421 912-3 | ARM SHIFT,LOW & 2ND | 1 | 2204- | TRAGA | |||
| 140 | I8-98189 454-0 | BREATHER AIR,TRANS | 1 | 2204- | TRAGA | |||
| 148 | I8-97083 599-0 | GASKET QUAD BOX | 1 | 2204- | TRAGA | |||
| 147 | I9-08160 612-0 | PIN KNOCK | 2 | 2204- | TRAGA | OD=6 L=12 |
