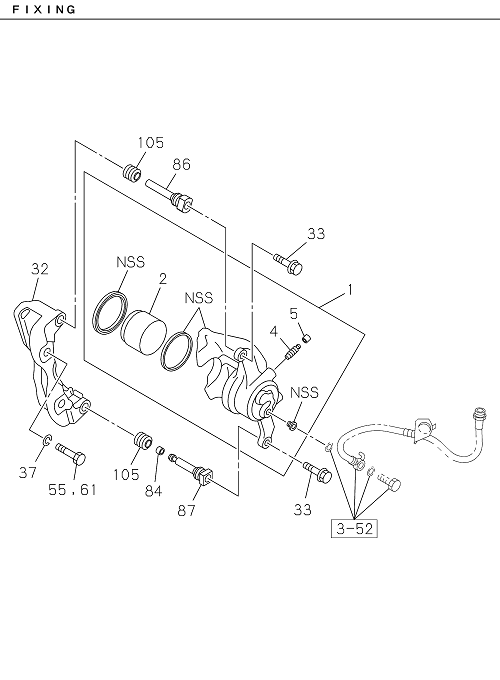

3-02 | FRONT DISC BRAKE CALIPER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 017 | I6-98283 244-1 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 2204- | TRAGA | (IADG) | ||
| 55 | I8-98037 731-0 | BOLT SUPPORT BRKT TO DISC BRK | 2 | 2204- | L | TRAGA | ||
| 17 | I6-98283 244-1 | PAD KIT CALIPER,DISC BRK,FRT | 1 | 2204- | TRAGA | (IADG) | ||
| 2 | I8-98486 837-A | PISTON CALIPER,DISC BRK,FRT | 4 | 2204- | TRAGA | |||
| 087 | I8-98489 325-A | PIN; LOCK | 2 | 2204- | TRAGA | |||
| 33 | I8-98078 192-A | BOLT SUPPORT BRKT TO DISC BRK | 4 | 2204- | TRAGA | |||
| 055 | I8-98037 731-0 | BOLT; SUPPORT BRKT TO DISC BRK | 2 | 2204- | L | TRAGA | ||
| 5 | I8-98050 479-0 | CAP BLEEDER,DISC BRK,FRT | 2 | 2204- | TRAGA | |||
| 1 | I8-98486 825-A | CALIPER FRT DISC BRK | 1 | 2204- | R | TRAGA | ||
| 002 | I8-98486 837-A | PISTON; CALIPER,DISC BRK,FRT | 4 | 2204- | TRAGA | |||
| 033 | I8-98078 192-A | BOLT; SUPPORT BRKT TO DISC BRK | 4 | 2204- | TRAGA | |||

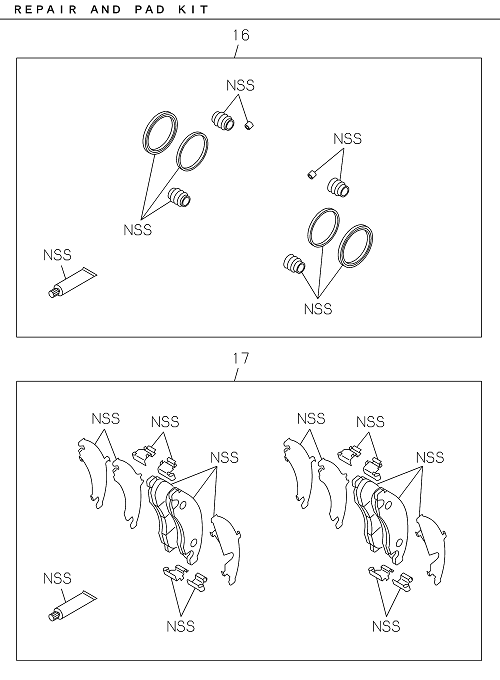

| 16 | I8-97486 836-A | REPAIR KIT CALIPER,DISC BRK,FRT | 1 | 2204- | TRAGA | |||
| 105 | I8-98078 193-A | BOOT CALIPER | 4 | 2204- | TRAGA | |||
| 84 | I8-97487 324-A | BUSHING LOCK PIN | 2 | 2204- | TRAGA | |||
| 1 | I8-98486 826-A | CALIPER FRT DISC BRK | 1 | 2204- | L | TRAGA | ||
| 105 | I8-98078 193-A | BOOT; CALIPER | 4 | 2204- | TRAGA | |||
| 004 | I8-98050 476-0 | SCREW; BLEEDER,DISC BRK,FRT | 2 | 2204- | TRAGA | |||
| 4 | I8-98050 476-0 | SCREW BLEEDER,DISC BRK,FRT | 2 | 2204- | TRAGA | |||
| 001 | I8-98486 825-A | CALIPER; FRT DISC BRK | 1 | 2204- | R | TRAGA | ||
| 61 | I8-98037 731-0 | BOLT SUPPORT BRKT TO KNUCKLE | 2 | 2204- | R | TRAGA | ||
| 084 | I8-97487 324-A | BUSHING; LOCK PIN | 2 | 2204- | TRAGA | |||
| 005 | I8-98050 479-0 | CAP; BLEEDER,DISC BRK,FRT | 2 | 2204- | TRAGA | |||
| 37 | I0-91510 814-0 | WASHER LK | 4 | 2204- | TRAGA | ID=14.2 | ||
| 17 | I8-98283 244-A | PAD KIT CALIPER,DISC BRK,FRT | 1 | 2204- | TRAGA | |||
| 061 | I8-98037 731-0 | BOLT; SUPPORT BRKT TO KNUCKLE | 2 | 2204- | R | TRAGA | ||
| 016 | I8-97486 836-A | REPAIR KIT; CALIPER,DISC BRK,FRT | 1 | 2204- | TRAGA | |||
| 037 | I0-91510 814-0 | WASHER; LK | 4 | 2204- | TRAGA | ID=14.2 | ||
| 87 | I8-98489 325-A | PIN LOCK | 2 | 2204- | TRAGA | |||
| 32 | I8-97486 762-A | SUPPORT FRT DISC BRK | 2 | 2204- | TRAGA | |||
| 001 | I8-98486 826-A | CALIPER; FRT DISC BRK | 1 | 2204- | L | TRAGA | ||
| 086 | I8-98489 326-A | PIN; GUIDE | 2 | 2204- | TRAGA | |||
| 032 | I8-97486 762-A | SUPPORT; FRT DISC BRK | 2 | 2204- | TRAGA | |||
| 86 | I8-98489 326-A | PIN GUIDE | 2 | 2204- | TRAGA | |||
| 017 | I8-98283 244-A | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 2204- | TRAGA |
