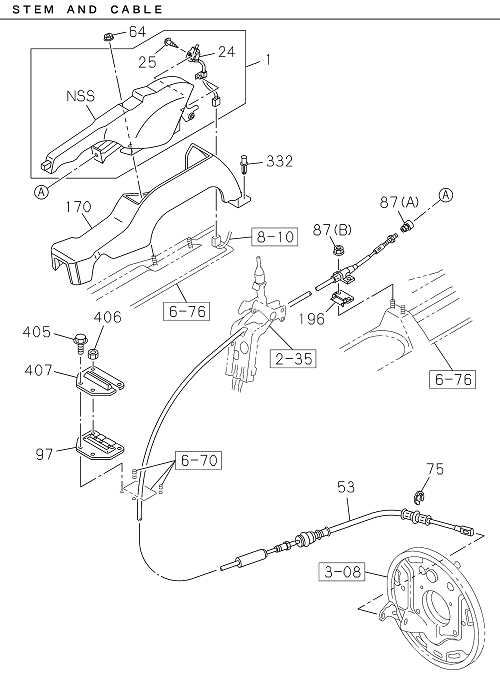

3-11 | PARKING BRAKE CONTROL
TRAGA
TRAGA E4

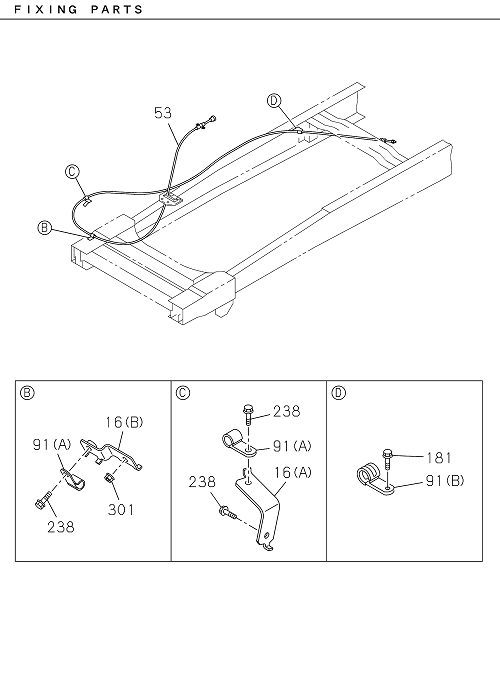

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | I8-98268 116-A | BRACKET PARKING BRK | 1 | 2204- | TRAGA | (A) | ||
| 301 | I7-05108 010-A | NUT BRKT,BRK & CLU PEDAL | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 75 | I0-91805 512-0 | RING SNAP,HAND BRK CABLE | 1 | 2204- | TRAGA | ID=12 | ||
| 25 | I8-98152 463-0 | SCREW SW,PARKING BRK | 1 | 2204- | TRAGA | |||
| 405 | I0-28450 620-0 | BOLT GROMMET | 2 | 2204- | TRAGA | M6X20 FLANGE | ||
| 91 | I0-95235 255-0 | CLIP PARKING BRK CABLE | 2 | 2204- | TRAGA | (A) ID=13 L=28 | ||
| 64 | I0-91380 008-0 | NUT PARKING BRK | 2 | 2204- | TRAGA | M8 LOCK NUT FLANGE | ||
| 53 | I8-98240 661-A | CABLE PARK BRK,FRT LWR | 1 | 2204- | TRAGA | |||
| 1 | I8-97466 820-0 | STEM ASM PARKING BRK | 1 | 2204- | TRAGA | GRAY | ||
| 238 | I0-28650 825-0 | BOLT CLIP TO BRKT | 3 | 2204- | TRAGA | M8X25 FLANGE | ||
| 97 | I8-97061 403-A | GROMMET PARKING BRK CABLE | 1 | 2204- | TRAGA | |||
| 87 | I8-98034 313-1 | NUT | 1 | 2204- | TRAGA | (A) M6 | ||
| 407 | I8-97048 319-1 | RETAINER GROMMET | 1 | 2204- | TRAGA | |||
| 196 | I8-98034 201-0 | SPACER CABLE TO LEVER | 1 | 2204- | TRAGA | |||
| 87 | I7-05108 010-A | NUT | 2 | 2204- | TRAGA | (B) M8 FLANGE | ||
| 406 | I0-91180 106-0 | NUT GROMMET | 2 | 2204- | TRAGA | M6 FLANGE | ||
| 170 | I8-97468 512-2 | COVER PARKING BRK LEVER | 1 | 2204- | TRAGA | GRAY | ||
| 24 | I8-98238 611-0 | SWITCH ASM PARK BRK | 1 | 2204- | TRAGA | |||
| 181 | I0-28650 825-0 | BOLT BRKT | 1 | 2204- | TRAGA | M8X25 FLANGE | ||
| 91 | I1-09701 012-0 | CLIP PARKING BRK CABLE | 1 | 2204- | TRAGA | (B) ID=14.5 L=20 | ||
| 16 | I8-98289 323-A | BRACKET PARKING BRK | 1 | 2204- | TRAGA | (B) | ||
| 332 | I8-97466 764-0 | CLIP COVER | 1 | 2204- | TRAGA | GRAY |
