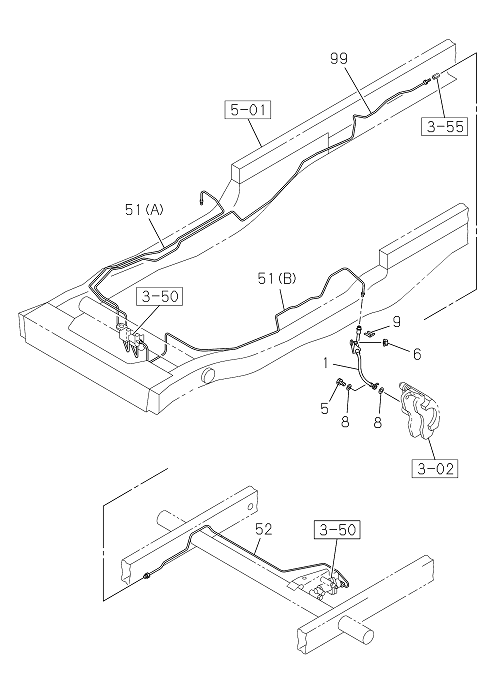

3-52 | BRAKE PIPING; OIL, FRONT
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 051 | I8-98238 736-A | PIPE; BRK | 1 | 2204- | TRAGA | (A) | ||
| 052 | I8-98238 739-A | PIPE; BRK | 1 | 2204- | TRAGA | |||
| 1 | I8-98286 093-0 | HOSE FLEX,FRT BRK | 1 | 2204- | L | TRAGA | ||
| 051 | I8-98238 737-A | PIPE; BRK | 1 | 2204- | TRAGA | (B) | ||
| 99 | I8-98238 738-A | PIPE ASM 4/5/6 WAY | 1 | 2204- | TRAGA | |||
| 006 | I7-05108 010-A | NUT; FLEX HOSE,FRT BRK | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 51 | I8-98238 737-A | PIPE BRK | 1 | 2204- | TRAGA | (B) | ||
| 001 | I8-98286 093-0 | HOSE; FLEX,FRT BRK | 1 | 2204- | L | TRAGA | ||
| 52 | I8-98238 739-A | PIPE BRK | 1 | 2204- | TRAGA | |||
| 008 | I9-09571 410-0 | GASKET; FLEX HOSE,FRT BRK | 4 | 2204- | TRAGA | ID=10.2 OD=16.0 | ||
| 51 | I8-98238 736-A | PIPE BRK | 1 | 2204- | TRAGA | (A) | ||
| 1 | I8-98286 092-0 | HOSE FLEX,FRT BRK | 1 | 2204- | R | TRAGA | ||
| 001 | I8-98286 092-0 | HOSE; FLEX,FRT BRK | 1 | 2204- | R | TRAGA | ||
| 8 | I9-09571 410-0 | GASKET FLEX HOSE,FRT BRK | 4 | 2204- | TRAGA | ID=10.2 OD=16.0 | ||
| 6 | I7-05108 010-A | NUT FLEX HOSE,FRT BRK | 2 | 2204- | TRAGA | M8 FLANGE | ||
| 009 | I8-97360 054-0 | CLIP; FLEX HOSE,FRT BRK | 2 | 2204- | TRAGA | |||
| 5 | I8-98014 005-0 | BOLT EYE,FLEX HOSE,FRT BRK | 2 | 2204- | TRAGA | M10X22 EYE-BOLT | ||
| 005 | I8-98014 005-0 | BOLT; EYE,FLEX HOSE,FRT BRK | 2 | 2204- | TRAGA | M10X22 EYE-BOLT | ||
| 099 | I8-98238 738-A | PIPE ASM; 4/5/6 WAY | 1 | 2204- | TRAGA | |||
| 9 | I8-97360 054-0 | CLIP FLEX HOSE,FRT BRK | 2 | 2204- | TRAGA |
