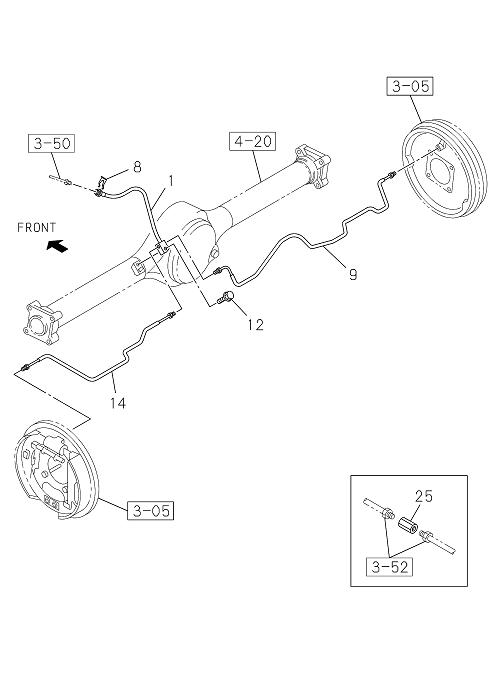

3-55 | BRAKE PIPING OIL, REAR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 12 | I0-28650 830-0 | BOLT FLEX HOSE TO RR AXLE | 1 | 2204- | TRAGA | M8X30 FLANGE | ||
| 9 | I8-98236 776-A | PIPE BRK,RR AXLE | 1 | 2204- | TRAGA | |||
| 1 | I8-98259 164-0 | HOSE FLEX,RR BRK | 1 | 2204- | TRAGA | |||
| 8 | I8-97360 054-0 | CLIP RR BRK | 1 | 2204- | TRAGA | |||
| 25 | I0-92107 005-0 | CONNECTOR | 1 | 2204- | TRAGA | M10X2 STRAIGHT | ||
| 14 | I8-98236 775-A | PIPE BRK,FLEX HOSE TO WHEEL CYL | 1 | 2204- | TRAGA |
