3-58 | FIXING PARTS OIL PIPING
TRAGA
TRAGA E4

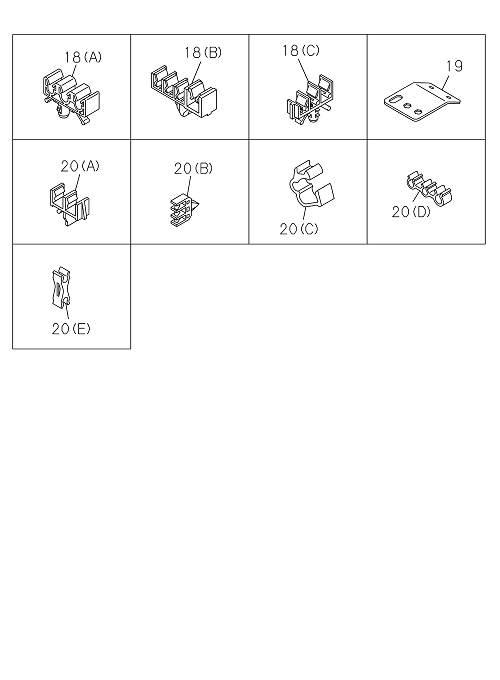

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I8-94107 732-1 | CLIP BRK PIPE | 1 | 2204- | TRAGA | (C) ID=6.35 & 4.76X2 | ||
| 20 | I8-94146 043-0 | CLIP BRK PIPE | 1 | 2204- | TRAGA | (D) ID=6.4 & 4.8X2 | ||
| 18 | I8-97168 819-0 | CLIP BRK PIPE | 3 | 2204- | TRAGA | (B) ID=10 & 4.76X3 | ||
| 19 | I8-98240 317-A | BRACKET OIL PIPE | 1 | 2204- | TRAGA | |||
| 20 | I8-94241 454-0 | CLIP BRK PIPE | 1 | 2204- | TRAGA | (E) ID=4.6X2 | ||
| 20 | I8-94250 923-2 | CLIP BRK PIPE | 1 | 2204- | TRAGA | (B) ID=6.35 & 4.76X2 | ||
| 20 | I8-94113 470-0 | CLIP BRK PIPE | 1 | 2204- | TRAGA | (A) ID=4.8X2 | ||
| 18 | I8-97216 721-1 | CLIP BRK PIPE | 4 | 2204- | TRAGA | (A) ID=4.76X3 | ||
| 18 | I8-97064 484-1 | CLIP BRK PIPE | 3 | 2204- | TRAGA | (C) ID=10 & 6.4 & 4.8 |
