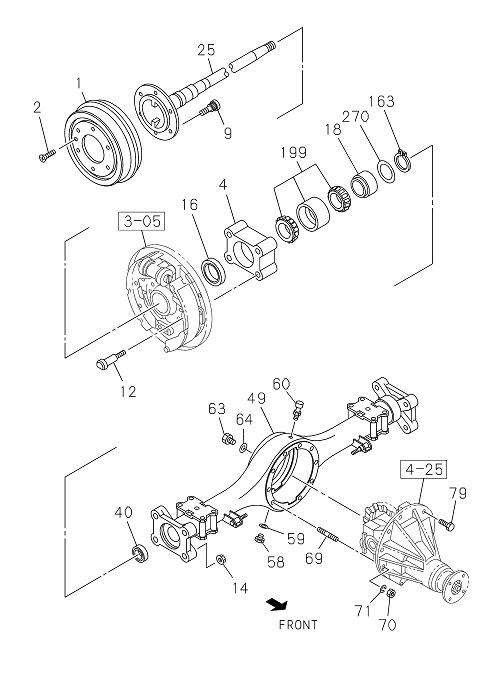

4-20 | REAR AXLE CASE AND SHAFT
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 79 | I8-98022 412-0 | BOLT COVER TO CASE | 2 | 2204- | TRAGA | M8X90 W/LK WASHER | ||
| 69 | I8-97364 104-0 | STUD AXLE CASE | 2 | 2204- | TRAGA | M8X25 L=36 | ||
| 60 | I8-98006 960-0 | BREATHER RR AXLE CASE | 1 | 2204- | TRAGA | L=29 | ||
| 63 | I8-97307 060-0 | PLUG OIL FILLER,AXLE CASE | 1 | 2204- | TRAGA | M16X12.5 | ||
| 18 | I8-97239 868-0 | RETAINER RR AXLE | 2 | 2204- | TRAGA | |||
| 70 | I5-09400 020-0 | NUT CARRIER | 2 | 2204- | TRAGA | M8 | ||
| 79 | I8-98022 411-0 | BOLT COVER TO CASE | 2 | 2204- | TRAGA | M8X30 W/LK WASHER | ||
| 9 | I8-98317 099-0 | PIN WHEEL,RR AXLE | 12 | 2204- | TRAGA | |||
| 16 | I6-97216 792-0 | SEAL OIL,RR HUB,OUTER | 2 | 2204- | TRAGA | (IADG) | ||
| 59 | I8-94462 734-0 | GASKET DRAIN PLUG | 1 | 2204- | TRAGA | ID=20 OD=30 | ||
| 40 | I8-97323 297-0 | SEAL OIL,REAR AXLE | 2 | 2204- | TRAGA | |||
| 2 | I0-36410 616-0 | BOLT BRK DRUM | 2 | 2204- | TRAGA | M6X16 CK-HEAD | ||
| 25 | I6-97239 864-0 | SHAFT AXLE,RR | 2 | 2204- | TRAGA | (IADG) | ||
| 199 | I8-97216 797-2 | BEARING RR AXLE | 2 | 2204- | TRAGA | |||
| 58 | I8-97307 059-1 | PLUG DRAIN,AXLE CASE | 1 | 2204- | TRAGA | M20X17 | ||
| 14 | I0-91180 212-0 | NUT BRG HOLDER TO CASE | 8 | 2204- | TRAGA | M12 FLANGE | ||
| 64 | I9-09571 416-0 | GASKET OIL FILLER,AXLE CASE | 1 | 2204- | TRAGA | ID=16.2 OD=24 | ||
| 40 | I6-97323 297-0 | SEAL OIL,REAR AXLE | 2 | 2204- | TRAGA | (IADG) | ||
| 270 | I9-41519 109-0 | SHIM RETAINER | AR | 2204- | TRAGA | T=0.24 | ||
| 49 | I8-98259 496-0 | CASE RR AXLE | 1 | 2204- | TRAGA | |||
| 163 | I9-09180 042-0 | RING SNAP,AXLE SHAFT | AR | 2204- | TRAGA | ID=38.5 T=1.75 | ||
| 25 | I8-97239 864-1 | SHAFT AXLE,RR | 2 | 2204- | TRAGA | |||
| 12 | I8-98038 350-0 | BOLT BRG HOLDER TO CASE | 8 | 2204- | TRAGA | |||
| 1 | I8-97360 505-0 | DRUM BRK,RR | 2 | 2204- | TRAGA | |||
| 4 | I8-97562 779-0 | HOLDER BRG,AXLE SHAFT | 2 | 2204- | TRAGA | |||
| 79 | I8-98022 410-0 | BOLT COVER TO CASE | 4 | 2204- | TRAGA | M8X25 W/LK WASHER | ||
| 16 | I8-97216 792-0 | SEAL OIL,RR HUB,OUTER | 2 | 2204- | TRAGA | |||
| 199 | I8-97216 797-A | BEARING RR AXLE | 2 | 2204- | TRAGA | (IADG) | ||
| 163 | I9-09952 253-0 | RING SNAP,AXLE SHAFT | AR | 2204- | TRAGA | ID=38.5 T=2.00 | ||
| 71 | I0-91510 808-0 | WASHER LK,FINAL DRIVE SETTING | 2 | 2204- | TRAGA | ID=8.2 |
