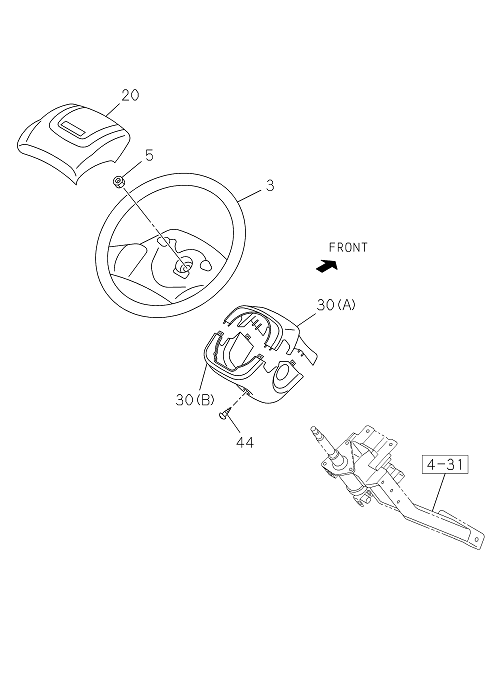

4-30 | STEERING WHEEL AND COWL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I0-91111 514-0 | NUT STRG WHEEL TO SHAFT | 1 | 2204- | TRAGA | M14 | ||
| 005 | I0-91111 514-0 | NUT; STRG WHEEL TO SHAFT | 1 | 2204- | TRAGA | M14 | ||
| 20 | I8-97466 769-1 | SHROUD PAD,STRG WHEEL | 1 | 2204- | TRAGA | GRAY | ||
| 030 | I8-97466 870-A | COWL; STEERING | 1 | 2204- | TRAGA | (A) GRAY | ||
| 44 | I0-38050 512-0 | SCREW STRG COWL | 3 | 2204- | TRAGA | M5X12 | ||
| 030 | I8-97466 871-A | COWL; STEERING | 1 | 2204- | TRAGA | (B) GRAY | ||
| 30 | I8-97466 870-A | COWL STEERING | 1 | 2204- | TRAGA | (A) GRAY | ||
| 044 | I0-38050 512-0 | SCREW; STRG COWL | 3 | 2204- | TRAGA | M5X12 | ||
| 020 | I8-97466 769-1 | SHROUD; PAD,STRG WHEEL | 1 | 2204- | TRAGA | GRAY | ||
| 003 | I8-97466 824-2 | WHEEL; STRG | 1 | 2204- | TRAGA | GRAY | ||
| 30 | I8-97466 871-A | COWL STEERING | 1 | 2204- | TRAGA | (B) GRAY | ||
| 3 | I8-97466 824-2 | WHEEL STRG | 1 | 2204- | TRAGA | GRAY |
