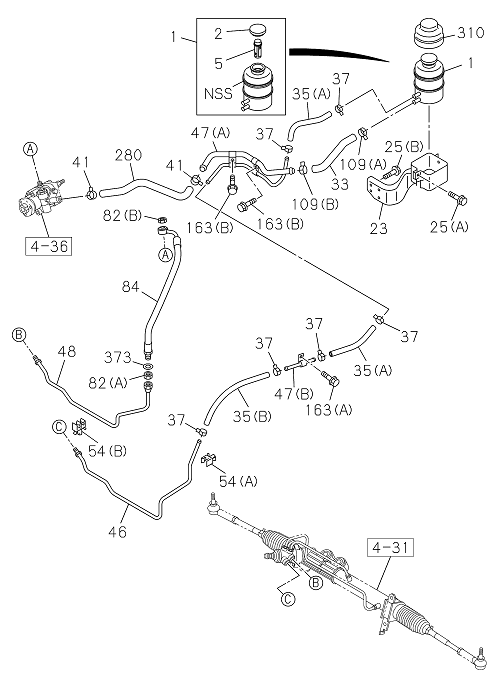

4-35 | POWER STEERING CONTROL CHASSIS SIDE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 33 | I0-09814 300-0 | HOSE RUBBER,POWER STRG | 1 | 2204- | TRAGA | L=180 SERVICED BY L=300 | ||
| 163 | I0-28650 620-0 | BOLT OIL PIPE | 1 | 2204- | TRAGA | (A) M6X20 FLANGE | ||
| 47 | I8-98127 815-A | PIPE RETURN | 1 | 2204- | TRAGA | (B) | ||
| 25 | I0-28450 620-0 | BOLT OIL TANK BRKT | 1 | 2204- | TRAGA | (A) M6X20 FLANGE | ||
| 35 | I0-19809 300-0 | HOSE RETURN,P/S TANK | 2 | 2204- | TRAGA | (A) L=200 SERVICED BY L=3000 | ||
| 54 | I8-97018 546-0 | CLIP OIL PIPE | 1 | 2204- | TRAGA | (B) ID=10X2 H=37.5 | ||
| 25 | I0-28650 825-0 | BOLT OIL TANK BRKT | 4 | 2204- | TRAGA | (B) M8X25 FLANGE | ||
| 1 | I8-97107 987-0 | TANK ASM OIL,P/S | 1 | 2204- | TRAGA | |||
| 84 | I8-97517 711-0 | HOSE FLEX,P/S | 1 | 2204- | TRAGA | |||
| 54 | I8-94462 219-0 | CLIP OIL PIPE | 1 | 2204- | TRAGA | (A) ID=10 H=40 | ||
| 47 | I8-97557 914-A | PIPE RETURN | 1 | 2204- | TRAGA | (A) | ||
| 46 | I8-98238 778-A | PIPE OIL,P/S UNIT TO OIL TANK | 1 | 2204- | TRAGA | |||
| 41 | I8-98150 355-0 | CLIP HOSE,P/S | 2 | 2204- | TRAGA | ID=21 | ||
| 163 | I0-28650 825-0 | BOLT OIL PIPE | 2 | 2204- | TRAGA | (B) M8X25 FLANGE | ||
| 23 | I8-97695 365-A | BRACKET OIL TANK,P/S | 1 | 2204- | TRAGA | |||
| 37 | I8-98008 098-0 | CLIP HOSE,P/S | 4 | 2204- | TRAGA | ID=16 | ||
| 310 | I8-97103 394-0 | COVER OIL TANK | 1 | 2204- | TRAGA | |||
| 109 | I8-97359 141-0 | CLIP RUBBER HOSE | 1 | 2204- | TRAGA | (A) ID=22 | ||
| 373 | I0-91541 216-0 | WASHER HOSE,P/S | 1 | 2204- | TRAGA | ID=16.5 TOOTH LK INT | ||
| 82 | I8-94370 339-0 | NUT FLEX HOSE,P/S | 1 | 2204- | TRAGA | (A) M16 | ||
| 5 | I8-97094 732-0 | STRAINER OIL TANK,P/S | 1 | 2204- | TRAGA | |||
| 35 | I0-19809 300-0 | HOSE RETURN,P/S TANK | 1 | 2204- | TRAGA | (B) L=270 SERVICED BY L=3000 | ||
| 280 | I0-09814 400-A | HOSE P/S OIL PUMP,INL | 1 | 2204- | TRAGA | L=400 | ||
| 109 | I8-98150 355-0 | CLIP RUBBER HOSE | 1 | 2204- | TRAGA | (B) ID=21 | ||
| 2 | I8-94146 153-2 | CAP OIL TANK,P/S | 1 | 2204- | TRAGA | |||
| 48 | I8-97559 566-A | PIPE OIL,FLEX HOSE TO STRG UNIT | 1 | 2204- | TRAGA | |||
| 82 | I8-97028 390-1 | NUT FLEX HOSE,P/S | 1 | 2204- | TRAGA | (B) M12 SELF LOCK | ||
| 37 | I8-98008 098-0 | CLIP HOSE,P/S | 2 | 2204- | TRAGA | ID=16 |
