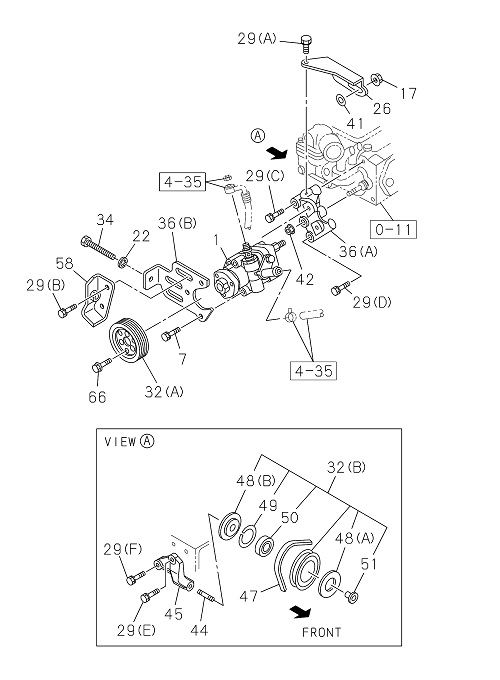

4-36 | POWER STEERING CONTROL; ENGINE SIDE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 048 | I9-13369 603-0 | COVER; IDLER | 1 | 2204- | TRAGA | (A) | ||
| 029 | I0-50541 035-0 | BOLT; BRKT,POWER STRG | 1 | 2204- | TRAGA | (E) M10X35 W/LK WASHER | ||
| 026 | I8-97562 168-A | BRACKET; P/S PUMP,RR | 1 | 2204- | TRAGA | |||
| 17 | I0-91180 208-0 | NUT POWER STRG PUMP | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 29 | I0-50541 028-0 | BOLT BRKT,POWER STRG | 2 | 2204- | TRAGA | (B) M10X28 W/LK WASHER | ||
| 050 | I8-94251 052-A | BEARING; IDLER | 1 | 2204- | TRAGA | |||
| 1 | I8-97946 697-0 | PUMP ASM OIL,P/S | 1 | 2204- | TRAGA | |||
| 047 | I5-13671 111-A | BELT; P/S PUMP | 1 | 2204- | TRAGA | L=1399 | ||
| 58 | I8-97941 329-0 | SLIDER BELT ADJ,P/S OIL PUMP | 1 | 2204- | TRAGA | |||
| 32 | I8-97942 187-0 | PULLEY IDLER,P/S | 1 | 2204- | TRAGA | (A) | ||
| 001 | I8-97946 697-0 | PUMP ASM; OIL,P/S | 1 | 2204- | TRAGA | |||
| 051 | I8-97092 813-0 | NUT; IDLER | 1 | 2204- | TRAGA | |||
| 44 | I0-44011 025-0 | STUD IDLER PULLEY | 1 | 2204- | TRAGA | M10X25 L=40 | ||
| 26 | I8-97562 168-A | BRACKET P/S PUMP,RR | 1 | 2204- | TRAGA | |||
| 29 | I0-50540 860-0 | BOLT BRKT,POWER STRG | 1 | 2204- | TRAGA | (D) M8X60 W/LK WASHER | ||
| 29 | I0-50541 060-0 | BOLT BRKT,POWER STRG | 1 | 2204- | TRAGA | (C) M10X60 W/LK WASHER | ||
| 034 | I0-20851 070-0 | BOLT; ADJ PLATE | 1 | 2204- | TRAGA | M10X70 | ||
| 45 | I8-94449 652-0 | BRACKET IDLE PULLEY,P/S | 1 | 2204- | TRAGA | |||
| 66 | I0-28050 812-A | BOLT PULLEY | 3 | 2204- | TRAGA | M8X12 FLANGE | ||
| 48 | I8-97092 819-0 | COVER IDLER | 1 | 2204- | TRAGA | (B) | ||
| 29 | I0-50540 830-0 | BOLT BRKT,POWER STRG | 1 | 2204- | TRAGA | (F) M8X30 W/LK WASHER | ||
| 007 | I8-97033 053-1 | BOLT; OIL PUMP,P/S | 3 | 2204- | TRAGA | M10X20 W/LK WASHER | ||
| 22 | I0-91510 510-0 | WASHER LK,OIL PUMP,P/S | 1 | 2204- | TRAGA | ID=10.2 | ||
| 29 | I0-50540 818-0 | BOLT BRKT,POWER STRG | 1 | 2204- | TRAGA | (A) M8X18 W/LK WASHER | ||
| 50 | I8-94251 052-A | BEARING IDLER | 1 | 2204- | TRAGA | |||
| 34 | I0-20851 070-0 | BOLT ADJ PLATE | 1 | 2204- | TRAGA | M10X70 | ||
| 47 | I5-13671 111-A | BELT P/S PUMP | 1 | 2204- | TRAGA | L=1399 | ||
| 044 | I0-44011 025-0 | STUD; IDLER PULLEY | 1 | 2204- | TRAGA | M10X25 L=40 | ||
| 029 | I0-50540 818-0 | BOLT; BRKT,POWER STRG | 1 | 2204- | TRAGA | (A) M8X18 W/LK WASHER | ||
| 32 | I8-97112 740-1 | PULLEY IDLER,P/S | 1 | 2204- | TRAGA | (B) | ||
| 032 | I8-97942 187-0 | PULLEY; IDLER,P/S | 1 | 2204- | TRAGA | (A) | ||
| 017 | I0-91180 208-0 | NUT; POWER STRG PUMP | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 029 | I0-50540 830-0 | BOLT; BRKT,POWER STRG | 1 | 2204- | TRAGA | (F) M8X30 W/LK WASHER | ||
| 042 | I0-91180 208-0 | NUT; ADJ PLATE | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 48 | I9-13369 603-0 | COVER IDLER | 1 | 2204- | TRAGA | (A) | ||
| 045 | I8-94449 652-0 | BRACKET; IDLE PULLEY,P/S | 1 | 2204- | TRAGA | |||
| 058 | I8-97941 329-0 | SLIDER; BELT ADJ,P/S OIL PUMP | 1 | 2204- | TRAGA | |||
| 41 | I9-09851 649-0 | WASHER PL,BRKT | 1 | 2204- | TRAGA | ID=8.5 OD=22 T=4 | ||
| 022 | I0-91510 510-0 | WASHER; LK,OIL PUMP,P/S | 1 | 2204- | TRAGA | ID=10.2 | ||
| 032 | I8-97112 740-1 | PULLEY; IDLER,P/S | 1 | 2204- | TRAGA | (B) | ||
| 036 | I8-94478 880-A | BRACKET; PLATE,P/S PUMP | 1 | 2204- | TRAGA | (A) | ||
| 36 | I8-94478 880-A | BRACKET PLATE,P/S PUMP | 1 | 2204- | TRAGA | (A) | ||
| 049 | I8-94175 036-0 | RING; SNAP,IDLER | 1 | 2204- | TRAGA | |||
| 29 | I0-50541 035-0 | BOLT BRKT,POWER STRG | 1 | 2204- | TRAGA | (E) M10X35 W/LK WASHER | ||
| 029 | I0-50541 060-0 | BOLT; BRKT,POWER STRG | 1 | 2204- | TRAGA | (C) M10X60 W/LK WASHER | ||
| 029 | I0-50540 860-0 | BOLT; BRKT,POWER STRG | 1 | 2204- | TRAGA | (D) M8X60 W/LK WASHER | ||
| 036 | I8-97562 167-A | BRACKET; PLATE,P/S PUMP | 1 | 2204- | TRAGA | (B) | ||
| 51 | I8-97092 813-0 | NUT IDLER | 1 | 2204- | TRAGA | |||
| 066 | I0-28050 812-A | BOLT; PULLEY | 3 | 2204- | TRAGA | M8X12 FLANGE | ||
| 029 | I0-50541 028-0 | BOLT; BRKT,POWER STRG | 2 | 2204- | TRAGA | (B) M10X28 W/LK WASHER | ||
| 42 | I0-91180 208-0 | NUT ADJ PLATE | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 49 | I8-94175 036-0 | RING SNAP,IDLER | 1 | 2204- | TRAGA | |||
| 36 | I8-97562 167-A | BRACKET PLATE,P/S PUMP | 1 | 2204- | TRAGA | (B) | ||
| 041 | I9-09851 649-0 | WASHER; PL,BRKT | 1 | 2204- | TRAGA | ID=8.5 OD=22 T=4 | ||
| 7 | I8-97033 053-1 | BOLT OIL PUMP,P/S | 3 | 2204- | TRAGA | M10X20 W/LK WASHER | ||
| 048 | I8-97092 819-0 | COVER; IDLER | 1 | 2204- | TRAGA | (B) |
