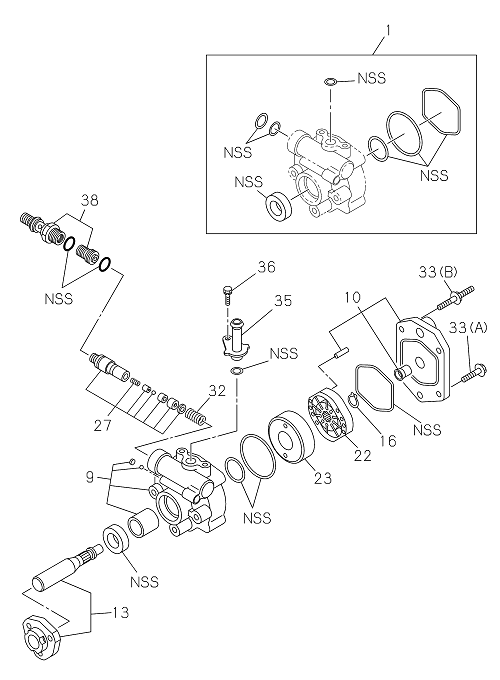

4-42 | POWER STEERING OIL PUMP
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 033 | I8-98028 773-0 | BOLT; COVER | 3 | 2204- | TRAGA | (A) | ||
| 35 | I8-98033 923-0 | PIPE HOSE CONN,OIL PUMP | 1 | 2204- | TRAGA | |||
| 9 | I8-97946 693-0 | BODY ASM FRT,OIL PUMP | 1 | 2204- | TRAGA | |||
| 036 | I8-98028 783-0 | BOLT; CONN,PIPE | 1 | 2204- | TRAGA | |||
| 001 | I8-97184 735-0 | REPAIR KIT; OIL PUMP | 1 | 2204- | TRAGA | |||
| 009 | I8-97946 693-0 | BODY ASM; FRT,OIL PUMP | 1 | 2204- | TRAGA | |||
| 1 | I8-97184 735-0 | REPAIR KIT OIL PUMP | 1 | 2204- | TRAGA | |||
| 013 | I8-97306 614-0 | SHAFT KIT; RET | 1 | 2204- | TRAGA | |||
| 038 | I8-97184 732-0 | CONNECTOR; OIL PUMP | 1 | 2204- | TRAGA | |||
| 33 | I8-98034 093-0 | BOLT COVER | 1 | 2204- | TRAGA | (B) | ||
| 13 | I8-97306 614-0 | SHAFT KIT RET | 1 | 2204- | TRAGA | |||
| 33 | I8-98028 773-0 | BOLT COVER | 3 | 2204- | TRAGA | (A) | ||
| 033 | I8-98034 093-0 | BOLT; COVER | 1 | 2204- | TRAGA | (B) | ||
| 10 | I8-97946 689-0 | BODY ASM RR,OIL PUMP | 1 | 2204- | TRAGA | |||
| 035 | I8-98033 923-0 | PIPE; HOSE CONN,OIL PUMP | 1 | 2204- | TRAGA | |||
| 23 | I8-97184 728-0 | PLATE SIDE,OIL PUMP | 1 | 2204- | TRAGA | |||
| 027 | I8-97184 731-0 | VALVE ASM; OIL PUMP | 1 | 2204- | TRAGA | |||
| 38 | I8-97184 732-0 | CONNECTOR OIL PUMP | 1 | 2204- | TRAGA | |||
| 27 | I8-97184 731-0 | VALVE ASM OIL PUMP | 1 | 2204- | TRAGA | |||
| 010 | I8-97946 689-0 | BODY ASM; RR,OIL PUMP | 1 | 2204- | TRAGA | |||
| 16 | I8-94437 984-0 | RING RET,OIL PUMP | 1 | 2204- | TRAGA | |||
| 22 | I8-97946 615-0 | CARTRIDGE ASM OIL PUMP | 1 | 2204- | TRAGA | |||
| 023 | I8-97184 728-0 | PLATE; SIDE,OIL PUMP | 1 | 2204- | TRAGA | |||
| 36 | I8-98028 783-0 | BOLT CONN,PIPE | 1 | 2204- | TRAGA | |||
| 022 | I8-97946 615-0 | CARTRIDGE ASM; OIL PUMP | 1 | 2204- | TRAGA | |||
| 32 | I8-97184 766-0 | SPRING OIL PUMP | 1 | 2204- | TRAGA | |||
| 032 | I8-97184 766-0 | SPRING; OIL PUMP | 1 | 2204- | TRAGA | |||
| 016 | I8-94437 984-0 | RING; RET,OIL PUMP | 1 | 2204- | TRAGA |
