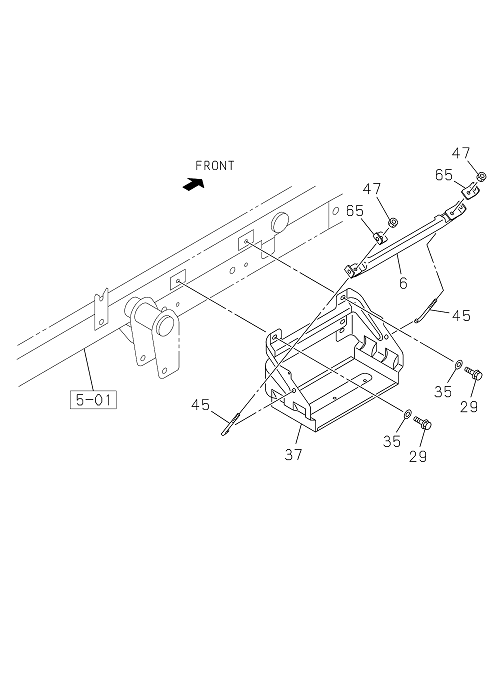

5-20 | BATTERY CARRIER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I8-97695 718-A | BRACKET BATTERY | 1 | 2204- | TRAGA | |||
| 65 | I1-53618 040-0 | PLATE LOCK,BATTERY BRKT | 2 | 2204- | TRAGA | |||
| 47 | I0-91110 508-0 | NUT BRKT | 2 | 2204- | TRAGA | M8 | ||
| 35 | I0-91610 610-0 | WASHER PL,BATTERY CARRIER | 4 | 2204- | TRAGA | ID=10.5 OD=22 T=1.6 | ||
| 6 | I8-97678 242-A | BRACKET BATTERY CARRIER | 1 | 2204- | TRAGA | |||
| 29 | I0-28661 030-0 | BOLT BRKT TO FRAME | 4 | 2204- | TRAGA | M10X30 FLANGE | ||
| 45 | I9-53616 615-A | ROD TENSION,BATTERY | 2 | 2309- | TRAGA | |||
| 45 | I7-42410 210-A | ROD TENSION,BATTERY | 2 | 2204-2308 | TRAGA |
