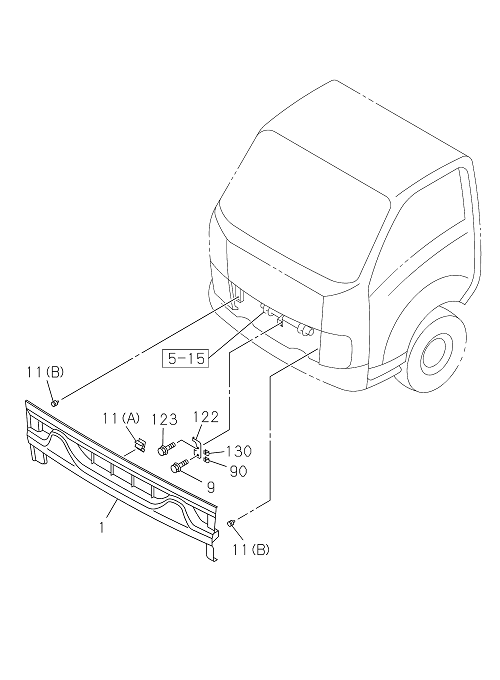

6-03 | RADIATOR GRILLE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 122 | I8-98258 643-A | BRACKET AIR GUIDE | 1 | 2204- | TRAGA | |||
| 130 | I8-98014 760-0 | NUT BRKT | 1 | 2204- | TRAGA | |||
| 9 | I8-98059 504-0 | SCREW RAD GRILLE | 1 | 2204- | TRAGA | M6X20 W/PL WASHER | ||
| 11 | I8-97102 415-0 | CLIP RAD GRILLE | 3 | 2204- | TRAGA | (A) WHITE | ||
| 123 | I8-98059 504-0 | BOLT BRKT AIR GUIDE | 1 | 2204- | TRAGA | M6X20 W/PL WASHER | ||
| 11 | I8-97581 651-2 | CLIP RAD GRILLE | 4 | 2204- | TRAGA | (B) | ||
| 90 | I8-98014 760-0 | NUT RAD GRILLE | 1 | 2204- | TRAGA | |||
| 1 | I8-98269 542-A | GRILLE RAD | 1 | 2204- | TRAGA |
