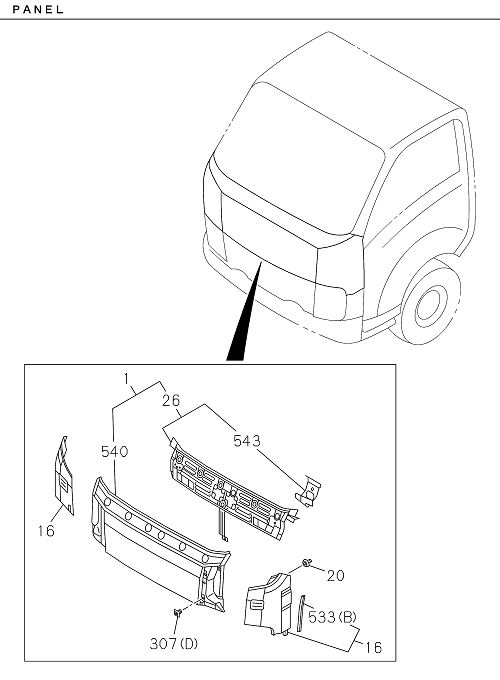

6-05 | FRONT PANEL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

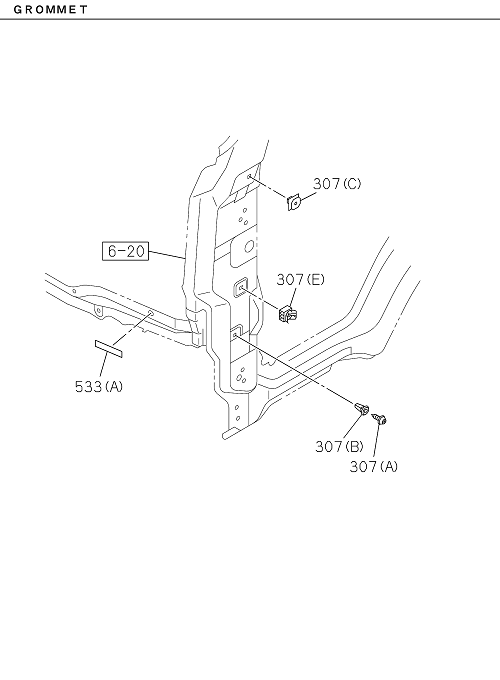

| 307 | I8-97410 738-0 | GROMMET FRT PANEL | 2 | 2204- | TRAGA | (C) | ||
| 543 | I8-98259 002-A | CLOSING FRT MTG RAIL | 1 | 2204- | TRAGA | |||
| 307 | I8-94441 539-0 | GROMMET FRT PANEL | 2 | 2204- | TRAGA | (B) D=7.9X7.9 L=20 M5 | ||
| 16 | I5-87412 327-A | PANEL FRONT,SIDE | 1 | 2204- | TRAGA | |||
| 26 | I8-98258 994-A | PANEL REINF,FRT PANEL CENTER, INNER | 1 | 2204- | TRAGA | |||
| 1 | I8-98258 755-A | PANEL ASM FRT | 1 | 2204- | TRAGA | |||
| 307 | I0-72380 516-0 | GROMMET FRT PANEL | 2 | 2204- | TRAGA | (A) M5X16 TAPPING HEXALOBULAR | ||
| 20 | I1-09983 161-0 | CLIP FRT PANEL SIDE | 6 | 2204- | TRAGA | D4.2X13 | ||
| 533 | I8-98195 666-0 | SEAL FRT PANEL | 2 | 2204- | TRAGA | (A) | ||
| 307 | I8-97583 397-0 | GROMMET FRT PANEL | 6 | 2204- | TRAGA | (D) | ||
| 533 | I8-97499 778-A | SEAL FRT PANEL | 2 | 2204- | TRAGA | (B) | ||
| 16 | I5-87412 326-A | PANEL FRONT,SIDE | 1 | 2204- | TRAGA | |||
| 540 | I8-98258 992-A | PANEL FRONT,OUTER | 1 | 2204- | TRAGA | |||
| 307 | I8-98021 300-1 | GROMMET FRT PANEL | 2 | 2204- | TRAGA | (E) |
