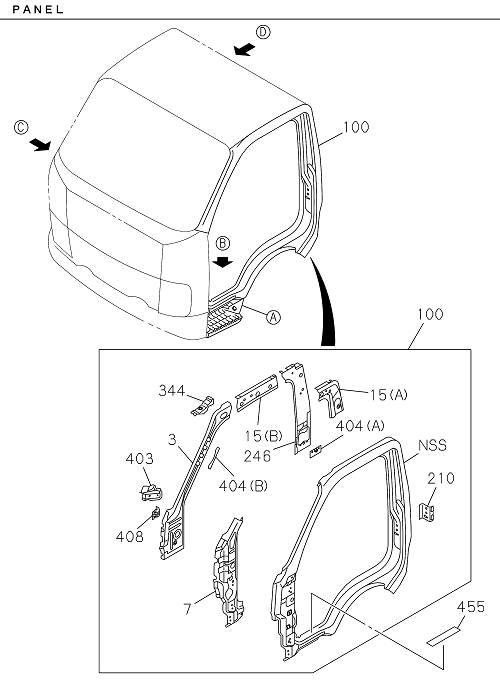

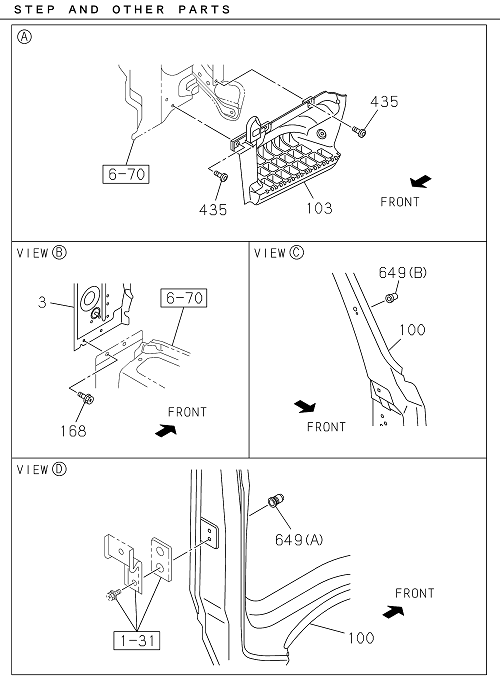

6-20 | SIDE PANEL AND STEP
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 246 | I8-98268 405-A | PANEL; RR PILLAR,INNER | 1 | 2204- | L | TRAGA | ||
| 007 | I8-98259 447-A | REINFORCEMENT; HINGE | 1 | 2204- | R | TRAGA | ||
| 7 | I8-98259 448-A | REINFORCEMENT HINGE | 1 | 2204- | L | TRAGA | ||
| 100 | I8-98258 039-A | PANEL ASM BODY SIDE | 1 | 2204- | R | TRAGA | ||
| 15 | I8-98259 491-A | PANEL CANT RAIL SIDE | 1 | 2204- | L | TRAGA | (B) | |
| 103 | I8-98242 608-1 | PLATE STEP | 1 | 2204- | L | TRAGA | ||
| 15 | I8-98259 479-A | PANEL CANT RAIL SIDE | 1 | 2204- | R | TRAGA | (A) | |
| 435 | I8-98004 345-0 | BOLT; RR STEP | 10 | 2204- | TRAGA | M8X18 | ||
| 404 | I8-98285 651-A | BRACKET | 2 | 2204- | TRAGA | (B) | ||
| 408 | I8-98259 474-A | GUSSET PILLAR | 1 | 2204- | R | TRAGA | ||
| 455 | I8-98027 816-0 | PROTECTOR STEP | 2 | 2204- | TRAGA | |||
| 103 | I6-97997 853-0 | PLATE; STEP | 1 | 2204- | R | TRAGA | (IADG) | |
| 103 | I8-98242 608-1 | PLATE; STEP | 1 | 2204- | L | TRAGA | ||
| 015 | I8-98259 479-A | PANEL; CANT RAIL SIDE | 1 | 2204- | R | TRAGA | (A) | |
| 103 | I8-97997 853-1 | PLATE STEP | 1 | 2204- | R | TRAGA | ||
| 103 | I6-97997 853-0 | PLATE STEP | 1 | 2204- | R | TRAGA | (IADG) | |
| 649 | I8-98021 404-0 | NUT; POP | 2 | 2204- | R | TRAGA | (A) M8 POP NUT | |
| 408 | I8-98259 476-A | GUSSET PILLAR | 1 | 2204- | L | TRAGA | ||
| 103 | I8-97997 853-1 | PLATE; STEP | 1 | 2204- | R | TRAGA | ||
| 344 | I8-98259 469-A | EXTENSION ASM FRT PILLAR | 1 | 2204- | R | TRAGA | ||
| 403 | I8-98259 473-A | BRACKET; REINFORCEMENT,FRT PANEL | 1 | 2204- | L | TRAGA | ||
| 649 | I8-98021 404-0 | NUT POP | 2 | 2204- | R | TRAGA | (A) M8 POP NUT | |
| 403 | I8-98259 473-A | BRACKET REINFORCEMENT,FRT PANEL | 1 | 2204- | L | TRAGA | ||
| 246 | I8-98268 404-A | PANEL; RR PILLAR,INNER | 1 | 2204- | R | TRAGA | ||
| 344 | I8-98259 470-A | EXTENSION ASM FRT PILLAR | 1 | 2204- | L | TRAGA | ||
| 435 | I8-98004 345-0 | BOLT RR STEP | 10 | 2204- | TRAGA | M8X18 | ||
| 168 | I8-94139 963-0 | BOLT BODY SIDE PANEL | 8 | 2204- | TRAGA | M6X16 W/LK&PL WASHER | ||
| 344 | I8-98259 470-A | EXTENSION ASM; FRT PILLAR | 1 | 2204- | L | TRAGA | ||
| 408 | I8-98259 474-A | GUSSET; PILLAR | 1 | 2204- | R | TRAGA | ||
| 404 | I8-97890 317-1 | BRACKET | 2 | 2204- | TRAGA | (A) | ||
| 100 | I8-98258 039-A | PANEL ASM; BODY SIDE | 1 | 2204- | R | TRAGA | ||
| 403 | I8-98259 472-A | BRACKET; REINFORCEMENT,FRT PANEL | 1 | 2204- | R | TRAGA | ||
| 408 | I8-98259 476-A | GUSSET; PILLAR | 1 | 2204- | L | TRAGA | ||
| 404 | I8-97890 317-1 | BRACKET | 2 | 2204- | TRAGA | (A) | ||
| 3 | I8-98268 216-A | PANEL CLOSING,FRT PILLAR | 1 | 2204- | L | TRAGA | ||
| 100 | I8-98258 038-A | PANEL ASM BODY SIDE | 1 | 2204- | L | TRAGA | ||
| 210 | I8-98259 493-A | PANEL; DOOR STRIKER REINF | 1 | 2204- | L | TRAGA | ||
| 649 | I8-98082 929-0 | NUT POP | 2 | 2204- | R | TRAGA | (B) M5 POP NUT | |
| 3 | I8-98268 215-A | PANEL CLOSING,FRT PILLAR | 1 | 2204- | R | TRAGA | ||
| 210 | I8-98259 493-A | PANEL DOOR STRIKER REINF | 1 | 2204- | L | TRAGA | ||
| 003 | I8-98268 216-A | PANEL; CLOSING,FRT PILLAR | 1 | 2204- | L | TRAGA | ||
| 404 | I8-98285 651-A | BRACKET | 2 | 2204- | TRAGA | (B) | ||
| 015 | I8-98259 480-A | PANEL; CANT RAIL SIDE | 1 | 2204- | L | TRAGA | (A) | |
| 403 | I8-98259 472-A | BRACKET REINFORCEMENT,FRT PANEL | 1 | 2204- | R | TRAGA | ||
| 015 | I8-98259 490-A | PANEL; CANT RAIL SIDE | 1 | 2204- | R | TRAGA | (B) | |
| 168 | I8-94139 963-0 | BOLT; BODY SIDE PANEL | 8 | 2204- | TRAGA | M6X16 W/LK&PL WASHER | ||
| 100 | I8-98258 038-A | PANEL ASM; BODY SIDE | 1 | 2204- | L | TRAGA | ||
| 210 | I8-98259 492-A | PANEL; DOOR STRIKER REINF | 1 | 2204- | R | TRAGA | ||
| 15 | I8-98259 480-A | PANEL CANT RAIL SIDE | 1 | 2204- | L | TRAGA | (A) | |
| 246 | I8-98268 404-A | PANEL RR PILLAR,INNER | 1 | 2204- | R | TRAGA | ||
| 649 | I8-98082 929-0 | NUT; POP | 2 | 2204- | R | TRAGA | (B) M5 POP NUT | |
| 455 | I8-98027 816-0 | PROTECTOR; STEP | 2 | 2204- | TRAGA | |||
| 007 | I8-98259 448-A | REINFORCEMENT; HINGE | 1 | 2204- | L | TRAGA | ||
| 210 | I8-98259 492-A | PANEL DOOR STRIKER REINF | 1 | 2204- | R | TRAGA | ||
| 15 | I8-98259 490-A | PANEL CANT RAIL SIDE | 1 | 2204- | R | TRAGA | (B) | |
| 344 | I8-98259 469-A | EXTENSION ASM; FRT PILLAR | 1 | 2204- | R | TRAGA | ||
| 015 | I8-98259 491-A | PANEL; CANT RAIL SIDE | 1 | 2204- | L | TRAGA | (B) | |
| 7 | I8-98259 447-A | REINFORCEMENT HINGE | 1 | 2204- | R | TRAGA | ||
| 003 | I8-98268 215-A | PANEL; CLOSING,FRT PILLAR | 1 | 2204- | R | TRAGA | ||
| 246 | I8-98268 405-A | PANEL RR PILLAR,INNER | 1 | 2204- | L | TRAGA |
