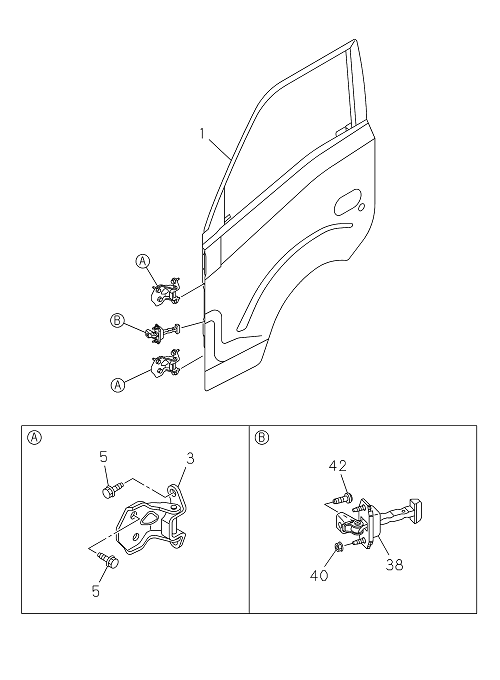

6-30 | FRONT DOOR AND HINGE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98259 133-A | DOOR ASM FRT,WO/TRIM | 1 | 2204- | TRAGA | |||
| 1 | I8-98259 132-A | DOOR ASM FRT,WO/TRIM | 1 | 2204- | TRAGA | |||
| 3 | I8-94155 314-2 | HINGE DOOR FRT | 2 | 2204- | TRAGA | |||
| 5 | I8-98049 756-0 | BOLT HINGE | 16 | 2204- | TRAGA | M8X20 FLANGE | ||
| 42 | I8-98166 694-0 | BOLT BRKT | 2 | 2204- | TRAGA | M8X23 | ||
| 3 | I8-94155 315-2 | HINGE DOOR FRT | 2 | 2204- | TRAGA | |||
| 40 | I0-91180 106-0 | NUT CHECKER | 4 | 2204- | TRAGA | M6 FLANGE | ||
| 38 | I8-98259 112-0 | CHECKER ASM DOOR | 2 | 2204- | TRAGA |
