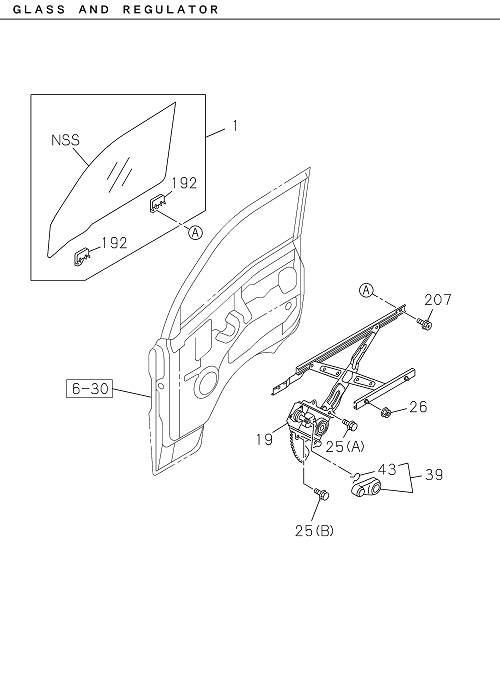

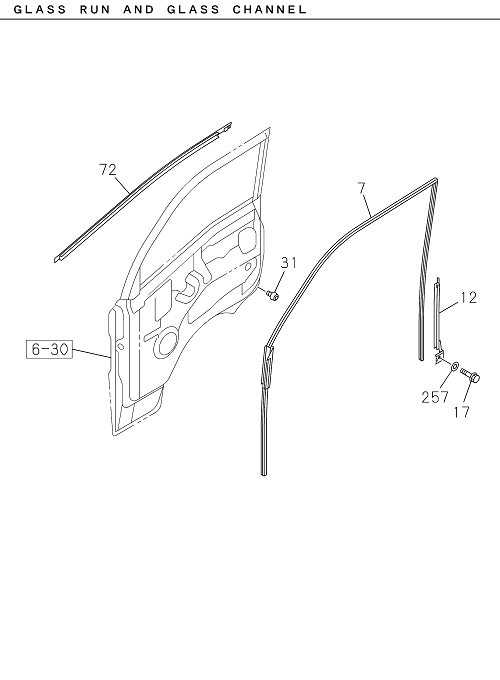

6-31 | FRONT DOOR GLASS AND REGULATOR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 72 | I8-98259 137-0 | SEAL WAIST,FRT DOOR | 1 | 2204- | TRAGA | |||
| 26 | I0-91180 106-0 | NUT FLANGE,WINDOW REG | 4 | 2204- | TRAGA | M6 FLANGE | ||
| 1 | I8-98259 096-A | GLASS FRT DOOR | 1 | 2204- | TRAGA | |||
| 257 | I9-09851 911-0 | WASHER G/RUN CHANNEL | 2 | 2204- | TRAGA | ID=6.5 OD=30 | ||
| 19 | I8-98385 505-A | REGULATOR WINDOW,FRT DOOR | 1 | 2204- | TRAGA | |||
| 207 | I8-98188 381-0 | SCREW DOOR GLASS | 4 | 2204- | TRAGA | BOLT M6X10 FLANGE | ||
| 192 | I8-98376 109-A | HOLDER DOOR GLASS | 4 | 2204- | TRAGA | |||
| 25 | I0-28050 610-0 | BOLT WINDOW REG | 6 | 2204- | TRAGA | (B) M6X10 FLANGE | ||
| 12 | I8-98259 113-2 | CHANNEL GLASS RUN,FRT | 1 | 2204- | TRAGA | |||
| 72 | I8-98259 138-0 | SEAL WAIST,FRT DOOR | 1 | 2204- | TRAGA | |||
| 25 | I0-28050 612-0 | BOLT WINDOW REG | 2 | 2204- | TRAGA | (A) M6X12 FLANGE | ||
| 31 | I8-98270 611-A | STOPPER RUBBER,DOOR INNER | 2 | 2204- | TRAGA | |||
| 17 | I0-28050 610-0 | SCREW RR CHANNEL | 2 | 2204- | TRAGA | BOLT M6X10 FLANGE | ||
| 12 | I8-98259 114-2 | CHANNEL GLASS RUN,FRT | 1 | 2204- | TRAGA | |||
| 7 | I8-98259 135-2 | GLASS RUN FRT DOOR | 1 | 2204- | TRAGA | |||
| 19 | I8-98385 506-A | REGULATOR WINDOW,FRT DOOR | 1 | 2204- | TRAGA | |||
| 7 | I8-98259 136-2 | GLASS RUN FRT DOOR | 1 | 2204- | TRAGA | |||
| 43 | I8-94220 591-0 | CLIP REG HANDLE,FRT DOOR | 2 | 2204- | TRAGA | |||
| 39 | I8-97525 046-A | HANDLE WINDOW REG,FRT DOOR | 2 | 2204- | TRAGA | GRAY | ||
| 1 | I8-98259 095-A | GLASS FRT DOOR | 1 | 2204- | TRAGA |
