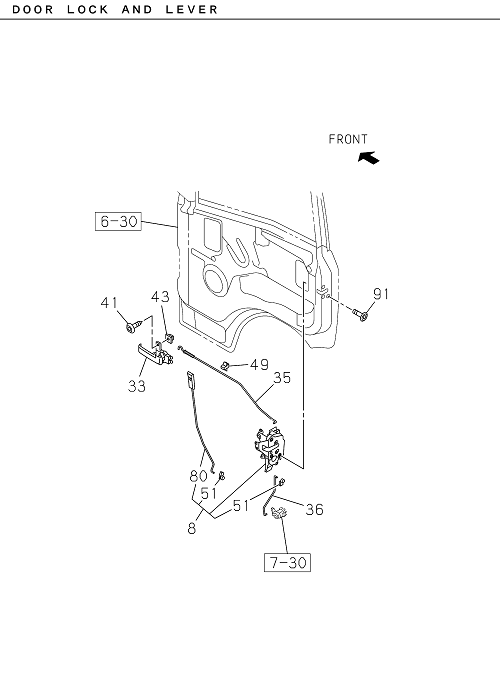

6-32 | FRONT DOOR LOCK AND HANDLE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 91 | I8-98004 342-0 | BOLT DOOR LOCK | 6 | 2204- | TRAGA | SCREW M6X14.5 | ||
| 56 | I8-97466 810-3 | ESCUTCHEON LOCK KNOB | 2 | 2204- | TRAGA | GRAY | ||
| 14 | I8-97221 702-1 | STRIKER FRT DOOR | 2 | 2204- | TRAGA | |||
| 33 | I8-97466 811-1 | LEVER ASM INSIDE,FRT DOOR | 1 | 2204- | TRAGA | BLACK | ||
| 139 | I8-97852 651-1 | HOLDER ROD,DOOR HANDLE | 1 | 2204- | TRAGA | |||
| 8 | I8-97466 814-0 | LOCK DOOR,FRT DOOR | 1 | 2204- | TRAGA | GRAY | ||
| 125 | I8-98271 104-A | BRACKET DOOR PULL | 2 | 2204- | TRAGA | |||
| 89 | I8-98064 276-1 | BOLT DOOR OUTSIDE HANDLE | 4 | 2204- | TRAGA | SCREW M6X8 HEXALOBULAR | ||
| 133 | I0-72380 516-0 | SCREW DOOR PULL STAY | 6 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 33 | I8-97466 812-1 | LEVER ASM INSIDE,FRT DOOR | 1 | 2204- | TRAGA | BLACK | ||
| 1 | I7-26502 230-A | HANDLE OUTSIDE,FRT DOOR | 1 | 2204- | TRAGA | |||
| 36 | I8-98259 119-A | LINK DOOR LOCK,OUTSIDE | 1 | 2204- | TRAGA | |||
| 41 | I0-72380 516-0 | SCREW INSIDE HANDLE | 6 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 139 | I8-97852 652-1 | HOLDER ROD,DOOR HANDLE | 1 | 2204- | TRAGA | |||
| 80 | I8-97472 258-0 | KNOB DOOR LOCK | 2 | 2204- | TRAGA | GRAY | ||
| 131 | I0-72380 516-0 | SCREW ESCUTCHEON,DOOR PULL | 4 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 8 | I8-97466 813-0 | LOCK DOOR,FRT DOOR | 1 | 2204- | TRAGA | GRAY | ||
| 51 | I8-98058 226-0 | SNAP FRT DOOR LOCK CONT ROD | 2 | 2204- | TRAGA | NATURAL | ||
| 28 | I8-97466 819-A | BEZEL INSIDE LEVER,FRT DOOR | 1 | 2204- | TRAGA | BLACK | ||
| 1 | I7-26503 230-A | HANDLE OUTSIDE,FRT DOOR | 1 | 2204- | TRAGA | |||
| 102 | I8-94279 078-A | GROMMET SCREW,ESCUTCHEON, DOOR PULL | 6 | 2204- | TRAGA | |||
| 51 | I8-98058 227-0 | SNAP FRT DOOR LOCK CONT ROD | 2 | 2204- | TRAGA | BLUE | ||
| 36 | I8-98259 118-A | LINK DOOR LOCK,OUTSIDE | 1 | 2204- | TRAGA | |||
| 18 | I8-98004 343-2 | SCREW DOOR STRIKER | 4 | 2204- | TRAGA | M8X20 CK-HEAD | ||
| 28 | I8-97466 818-A | BEZEL INSIDE LEVER,FRT DOOR | 1 | 2204- | TRAGA | BLACK | ||
| 43 | I8-94279 078-A | GROMMET SCREW,INSIDE LEVER, DOOR | 6 | 2204- | TRAGA | |||
| 35 | I8-98259 184-1 | LINK DOOR LOCK,INSIDE | 1 | 2204- | TRAGA | |||
| 49 | I8-94217 699-0 | CLAMP DOOR LOCK LINK ROD | 2 | 2204- | TRAGA | ID=3.8 WHITE | ||
| 35 | I8-98259 183-1 | LINK DOOR LOCK,INSIDE | 1 | 2204- | TRAGA |
