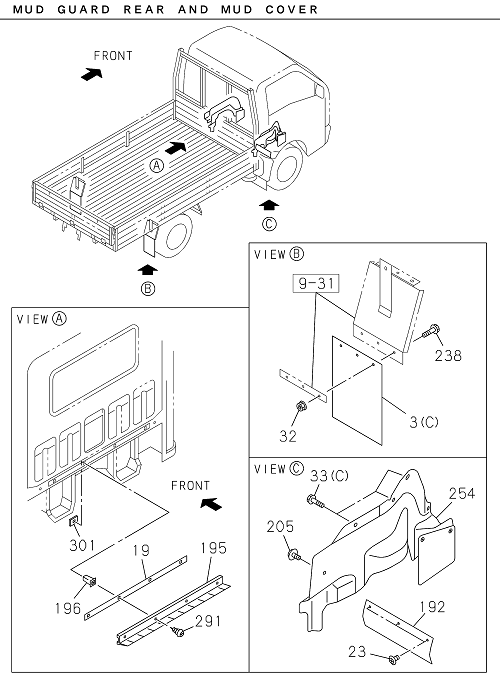

6-47 | MUD GUARD AND INSULATOR
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I8-98191 582-0 | SHEET; HEAT PROTECTOR,CAB BACK | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 003 | I8-98258 987-A | GUARD; MUD,RR | 1 | 2204- | R | TRAGA | (B) | |
| 3 | I8-98258 987-A | GUARD MUD,RR | 1 | 2204- | R | TRAGA | (B) | |
| 254 | I8-98269 582-A | COVER MUD,VALANCE | 1 | 2204- | L | TRAGA | ||
| 238 | I8-98098 459-0 | SCREW; MUD GUARD | 6 | 2204- | TRAGA | M6X16 FLANGE; TRAGA FLAT BED | ||
| 32 | I8-97065 431-0 | NUT MUD GUARD | 6 | 2204- | TRAGA | M6 FLANGE TRAGA FLAT BED | ||
| 291 | I0-72180 516-0 | SCREW; PROTECTOR | 4 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 5 | I8-98227 380-0 | NUT FLAP RUBBER | 6 | 2204- | TRAGA | M6 FLANGE | ||
| 195 | I8-97035 834-3 | PROTECTOR HEAT | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 33 | I8-98269 815-0 | BOLT MUD COVER | 8 | 2204- | TRAGA | (C) M6X16 FLANGE | ||
| 073 | I0-28650 825-0 | BOLT; MUD COVER BRKT | 4 | 2204- | TRAGA | (A) M8X25 FLANGE | ||
| 19 | I8-98191 582-0 | SHEET HEAT PROTECTOR,CAB BACK | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 238 | I8-98098 459-0 | SCREW MUD GUARD | 6 | 2204- | TRAGA | M6X16 FLANGE TRAGA FLAT BED | ||
| 033 | I8-98227 381-0 | BOLT; MUD COVER | 6 | 2204- | TRAGA | (B) M6X16 FLANGE | ||
| 105 | I7-05108 010-A | NUT; BRKT | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 196 | I8-97994 312-0 | CLIP; HEAT PROTECTOR | 4 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 205 | I8-94242 150-0 | FASTENER MUD COVER | 2 | 2204- | TRAGA | D=5.8 SCREW & GROMMET NYLON | ||
| 285 | I8-98258 983-A | BRACKET MUD COVER | 2 | 2204- | TRAGA | |||
| 195 | I8-97035 834-3 | PROTECTOR; HEAT | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 103 | I8-98309 190-A | BRACKET ASM RR MUD FLAP | 1 | 2204- | L | TRAGA | (B) | |
| 301 | I8-97994 313-0 | HOLDER HEAT PROTECTOR | 4 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 032 | I8-97065 431-0 | NUT; MUD GUARD | 6 | 2204- | TRAGA | M6 FLANGE; TRAGA FLAT BED | ||
| 005 | I8-98227 380-0 | NUT; FLAP RUBBER | 6 | 2204- | TRAGA | M6 FLANGE | ||
| 023 | I8-94242 150-0 | FASTENER; MUD COVER | 6 | 2204- | TRAGA | D=5.8 SCREW & GROMMET NYLON | ||
| 192 | I8-98258 244-A | SEAL; MUD COVER | 2 | 2204- | TRAGA | |||
| 291 | I0-72180 516-0 | SCREW PROTECTOR | 4 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 073 | I0-28651 025-0 | BOLT; MUD COVER BRKT | 4 | 2204- | TRAGA | (B) M10X25 FLANGE | ||
| 105 | I7-05108 010-A | NUT BRKT | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 192 | I8-98258 244-A | SEAL MUD COVER | 2 | 2204- | TRAGA | |||
| 3 | I8-98258 986-A | GUARD MUD,RR | 1 | 2204- | L | TRAGA | (A) | |
| 254 | I8-98269 581-A | COVER MUD,VALANCE | 1 | 2204- | R | TRAGA | ||
| 103 | I8-98258 981-A | BRACKET ASM RR MUD FLAP | 1 | 2204- | R | TRAGA | (A) | |
| 024 | I8-98258 989-A | PLATE; MUD COVER | 2 | 2204- | TRAGA | |||
| 033 | I8-98269 815-0 | BOLT; MUD COVER | 8 | 2204- | TRAGA | (C) M6X16 FLANGE | ||
| 196 | I8-97994 312-0 | CLIP HEAT PROTECTOR | 4 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 205 | I8-94242 150-0 | FASTENER; MUD COVER | 2 | 2204- | TRAGA | D=5.8 SCREW & GROMMET NYLON | ||
| 285 | I8-98258 983-A | BRACKET; MUD COVER | 2 | 2204- | TRAGA | |||
| 033 | I1-09030 093-0 | BOLT; MUD COVER | 8 | 2204- | TRAGA | (A) M8X25 W/LK&PL WASHER | ||
| 103 | I8-98309 190-A | BRACKET ASM; RR MUD FLAP | 1 | 2204- | L | TRAGA | (B) | |
| 254 | I8-98269 581-A | COVER; MUD,VALANCE | 1 | 2204- | R | TRAGA | ||
| 254 | I8-98269 582-A | COVER; MUD,VALANCE | 1 | 2204- | L | TRAGA | ||
| 73 | I0-28650 825-0 | BOLT MUD COVER BRKT | 4 | 2204- | TRAGA | (A) M8X25 FLANGE | ||
| 103 | I8-98258 981-A | BRACKET ASM; RR MUD FLAP | 1 | 2204- | R | TRAGA | (A) | |
| 33 | I8-98227 381-0 | BOLT MUD COVER | 6 | 2204- | TRAGA | (B) M6X16 FLANGE | ||
| 23 | I8-94242 150-0 | FASTENER MUD COVER | 6 | 2204- | TRAGA | D=5.8 SCREW & GROMMET NYLON | ||
| 003 | I8-98258 023-A | GUARD; MUD,RR | 2 | 2204- | TRAGA | (C) TRAGA FLAT BED | ||
| 301 | I8-97994 313-0 | HOLDER; HEAT PROTECTOR | 4 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 73 | I0-28651 025-0 | BOLT MUD COVER BRKT | 4 | 2204- | TRAGA | (B) M10X25 FLANGE | ||
| 219 | I8-98258 988-A | FLAP; MUD GUARD | 2 | 2204- | TRAGA | |||
| 219 | I8-98258 988-A | FLAP MUD GUARD | 2 | 2204- | TRAGA | |||
| 003 | I8-98258 986-A | GUARD; MUD,RR | 1 | 2204- | L | TRAGA | (A) | |
| 24 | I8-98258 989-A | PLATE MUD COVER | 2 | 2204- | TRAGA | |||
| 33 | I1-09030 093-0 | BOLT MUD COVER | 8 | 2204- | TRAGA | (A) M8X25 W/LK&PL WASHER | ||
| 3 | I8-98258 023-A | GUARD MUD,RR | 2 | 2204- | TRAGA | (C) TRAGA FLAT BED |
