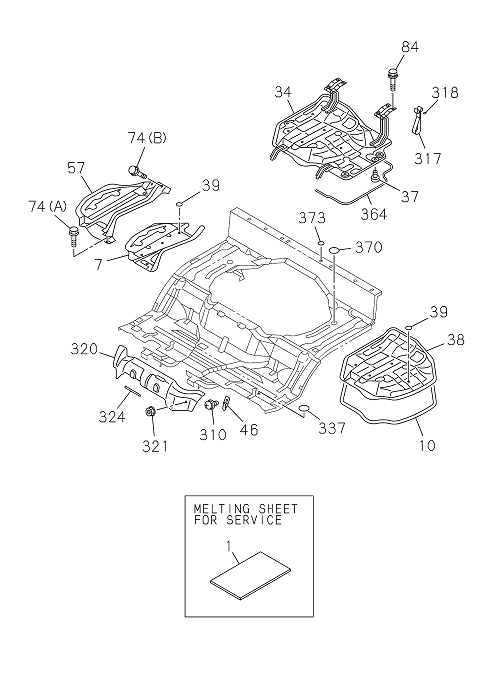

6-76 | FLOOR EQUIPMENT AND SEALING
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-94279 997-0 | CLIP INSULATOR,COVER | 5 | 2204- | TRAGA | OD=30 | ||
| 1 | I8-94262 093-0 | SHEET MELTING,FLOOR | AR | 2204- | TRAGA | NON ASBESTOS 1000X600 T=1.5 PARTS ONLY | ||
| 74 | I7-04508 025-A | BOLT SUPPORT COVER TO FLOOR | 4 | 2204- | TRAGA | (A) M8X20 FLANGE | ||
| 7 | I8-97853 543-3 | INSULATOR SUPPORT COVER | 1 | 2204- | TRAGA | |||
| 74 | I0-28650 825-0 | BOLT SUPPORT COVER TO FLOOR | 1 | 2204- | TRAGA | (B) M8X25 FLANGE | ||
| 370 | I8-98346 544-A | SEAL LOCATION HOLE | 2 | 2204- | TRAGA | OD=20 BLACK | ||
| 34 | I8-97850 673-1 | COVER ASM ENG,CAB FLOOR | 1 | 2204- | TRAGA | |||
| 84 | I7-04508 025-A | BOLT ENG COVER HINGE | 4 | 2204- | TRAGA | M8X20 FLANGE | ||
| 337 | I1-76798 029-0 | SEAL CLIP HOLE | 1 | 2204- | TRAGA | OD=25 BLACK | ||
| 46 | I8-97853 632-2 | HOOK ASM ENG COVER | 2 | 2204- | TRAGA | |||
| 38 | I8-97859 917-0 | INSULATOR ENG COVER | 1 | 2204- | TRAGA | |||
| 310 | I0-28650 616-0 | SCREW ENG COVER HOOK | 4 | 2204- | TRAGA | M6X16 FLANGE | ||
| 373 | I8-98346 431-A | COVER HOLE | 1 | 2204- | TRAGA | OD=25 BLACK | ||
| 39 | I8-94279 997-0 | CLIP INSULATOR,COVER | 7 | 2204- | TRAGA | OD=30 | ||
| 37 | I5-74917 001-A | RUBBER BUFFER,ENG COVER | 2 | 2204- | TRAGA | |||
| 320 | I8-97856 277-6 | INSULATOR FLOOR,FRT | 1 | 2204- | TRAGA | |||
| 364 | I8-97892 744-0 | FINISHER ENG COVER SIDE | 1 | 2204- | TRAGA | L=1100 | ||
| 317 | I8-97696 309-A | BAND ENGINE COVER | 1 | 2204- | TRAGA | |||
| 318 | I0-72380 516-0 | SCREW BAND | 2 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 10 | I8-97853 010-A | SEAL ENG COVER | 1 | 2204- | TRAGA | |||
| 324 | I8-97892 742-0 | FINISHER FLOOR PANEL | 1 | 2204- | TRAGA | L=140 | ||
| 321 | I8-94279 997-0 | CLIP INSULATOR,FLOOR | 3 | 2204- | TRAGA | OD=30 | ||
| 57 | I8-97866 687-1 | COVER ASM SUPPORT,CAB FLOOR | 1 | 2204- | TRAGA |
