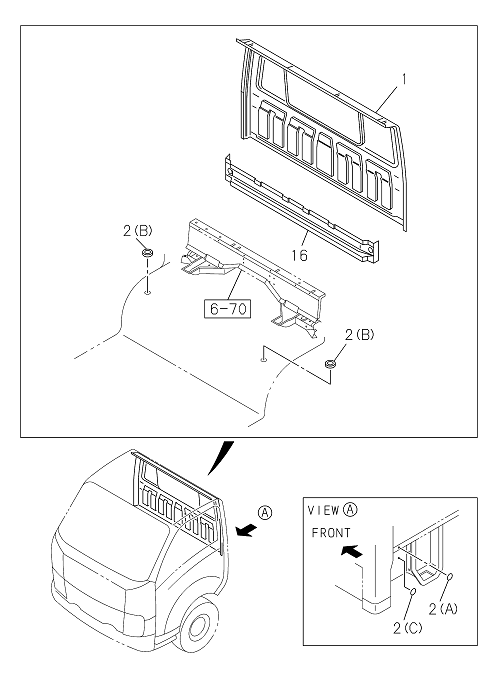

6-80 | BACK PANEL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98031 126-0 | GROMMET LOCATION HOLE,BACK PANEL | 2 | 2204- | TRAGA | (C) OD=32 BLACK | ||
| 1 | I8-98322 850-0 | PANEL BACK OUTER | 1 | 2204- | TRAGA | |||
| 16 | I8-98270 590-A | REINFORCEMENT BACK OUTER PNL | 1 | 2204- | TRAGA | |||
| 2 | I8-98346 431-A | GROMMET LOCATION HOLE,BACK PANEL | 4 | 2204- | TRAGA | (A) OD=25 BLACK | ||
| 2 | I8-97037 246-0 | GROMMET LOCATION HOLE,BACK PANEL | 2 | 2204- | TRAGA | (B) OD=15.0 |
