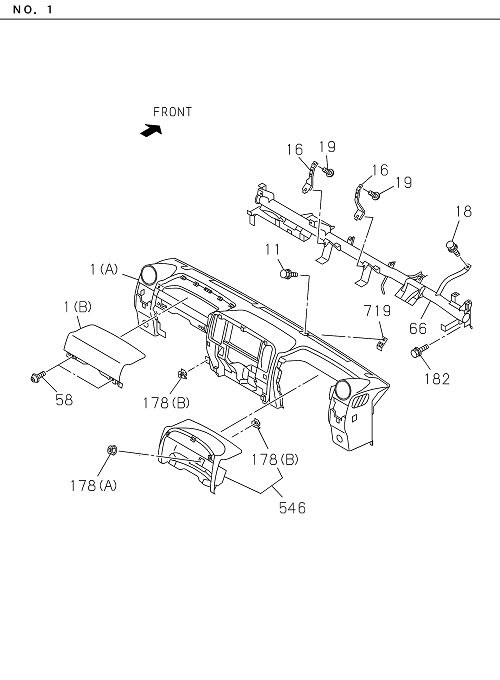

7-40 | INSTRUMENT PANEL AND BOX
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97466 852-A | PANEL INST | 1 | 2204- | TRAGA | (B) GRAY | ||
| 178 | I0-91180 106-0 | NUT INST PANEL | 3 | 2204- | TRAGA | (A) M6 FLANGE | ||
| 136 | I8-97581 651-2 | CLIP INST COVER | 3 | 2204- | TRAGA | (A) | ||
| 58 | I0-72180 516-0 | SCREW INST PANEL | 14 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 544 | I0-72180 516-0 | SCREW TRAY | 5 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 701 | I8-98258 550-A | TRAY INST | 1 | 2204- | TRAGA | |||
| 136 | I8-98021 271-0 | CLIP INST COVER | 1 | 2204- | TRAGA | (B) | ||
| 524 | I8-97466 863-A | STAND ASM CUP,INST | 2 | 2204- | TRAGA | GRAY | ||
| 18 | I7-04508 025-A | BOLT BRKT | 4 | 2204- | TRAGA | M8X20 FLANGE | ||
| 19 | I0-72180 516-0 | SCREW BRKT | 2 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 48 | I8-97853 750-1 | SPRING GLOVE BOX LID | 1 | 2204- | TRAGA | |||
| 1 | I8-97466 774-A | PANEL INST | 1 | 2204- | TRAGA | (A) GRAY | ||
| 69 | I8-98258 516-A | GRILLE SIDE,AIR OUTLET | 2 | 2204- | TRAGA | |||
| 70 | I8-98028 563-2 | GRILLE CENTER,AIR OUTLET | 1 | 2204- | TRAGA | |||
| 178 | I8-98037 629-0 | NUT INST PANEL | 13 | 2204- | TRAGA | (B) | ||
| 16 | I8-97696 172-A | BRACKET INST PNL | 1 | 2204- | TRAGA | |||
| 182 | I7-04508 025-A | BOLT BRKT,INST PANEL | 1 | 2204- | TRAGA | M8X20 FLANGE | ||
| 338 | I0-72180 516-0 | SCREW COVER | 2 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 603 | I8-98021 271-0 | CLIP COVER | 6 | 2204- | TRAGA | |||
| 50 | I8-98010 867-1 | STOPPER LID,GLOVE BOX,INST CLUSTER | 2 | 2204- | TRAGA | (B) | ||
| 662 | I8-97466 776-A | COVER LWR,INST PANEL | 1 | 2204- | TRAGA | (A) BLACK | ||
| 588 | I8-97466 864-A | LID BOX | 1 | 2204- | TRAGA | GRAY | ||
| 11 | I0-72180 516-0 | BOLT INST PNL | 3 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 719 | I8-97696 266-A | SPACER INST | 2 | 2204- | TRAGA | |||
| 11 | I8-94279 204-0 | BOLT INST PNL | 4 | 2204- | TRAGA | M6X25 | ||
| 16 | I8-97696 171-A | BRACKET INST PNL | 1 | 2204- | TRAGA | |||
| 50 | I8-97853 152-0 | STOPPER LID,GLOVE BOX,INST CLUSTER | 2 | 2204- | TRAGA | (A) | ||
| 546 | I8-97466 850-A | PANEL INST,SUB | 1 | 2204- | TRAGA | GRAY | ||
| 219 | I5-72547 059-1 | SHAFT GLOVE BOX LID | 1 | 2204- | TRAGA | |||
| 62 | I8-97466 865-1 | KNOB GLOVE BOX LID | 1 | 2204- | TRAGA | GRAY | ||
| 662 | I8-97466 862-A | COVER LWR,INST PANEL | 1 | 2204- | TRAGA | (B) GRAY | ||
| 564 | I8-98025 954-1 | COVER SW | 4 | 2204- | TRAGA | |||
| 170 | I8-98123 123-0 | COVER HOLE | 1 | 2204- | TRAGA | |||
| 66 | I8-97669 424-A | REINFORCEMENT INST PANEL | 1 | 2204- | TRAGA | |||
| 70 | I8-98028 561-2 | GRILLE CENTER,AIR OUTLET | 1 | 2204- | TRAGA | |||
| 682 | I8-98021 271-0 | CLIP | 4 | 2204- | TRAGA |
