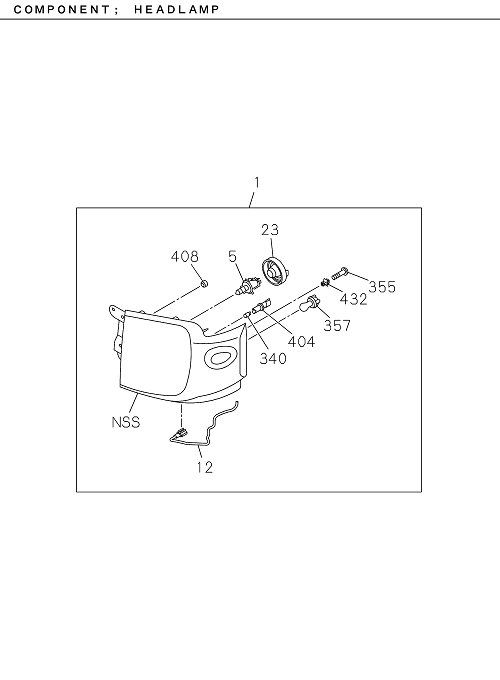

8-01 | LAMP FRONT AND FRONT SIDE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-97493 269-A | COVER BULB,HEADLAMP | 2 | 2204- | TRAGA | |||
| 12 | I8-97493 272-A | HARNESS HEADLAMP | 2 | 2204- | TRAGA | |||
| 404 | I8-97493 271-A | SOCKET POSITION LAMP | 2 | 2204- | TRAGA | |||
| 28 | I8-98018 440-0 | BOLT HEADLAMP | 4 | 2204- | TRAGA | (B) M6X25 W/LK&PL WASHER | ||
| 432 | I8-97493 274-A | FASTENER TURN SIGNAL,LAMP | 2 | 2204- | TRAGA | |||
| 408 | I8-97493 270-A | CAP BREATHER,HEADLAMP | 4 | 2204- | TRAGA | |||
| 357 | I8-97493 266-A | BULB TURN SIGNAL | 2 | 2204- | TRAGA | 12V 21W | ||
| 28 | I0-28650 616-0 | BOLT HEADLAMP | 2 | 2204- | TRAGA | (A) M6X16 FLANGE | ||
| 340 | I8-97493 268-A | BULB POSITION | 2 | 2204- | TRAGA | 12V 5W | ||
| 1 | I8-98259 249-A | LAMP ASM HEAD | 1 | 2204- | TRAGA | |||
| 1 | I8-98259 248-A | LAMP ASM HEAD | 1 | 2204- | TRAGA | |||
| 355 | I8-97493 273-A | SCREW TURN SIGNAL | 2 | 2204- | TRAGA | |||
| 5 | I8-97493 265-A | BULB HEADLAMP | 2 | 2204- | TRAGA | 12V 60/55W |
