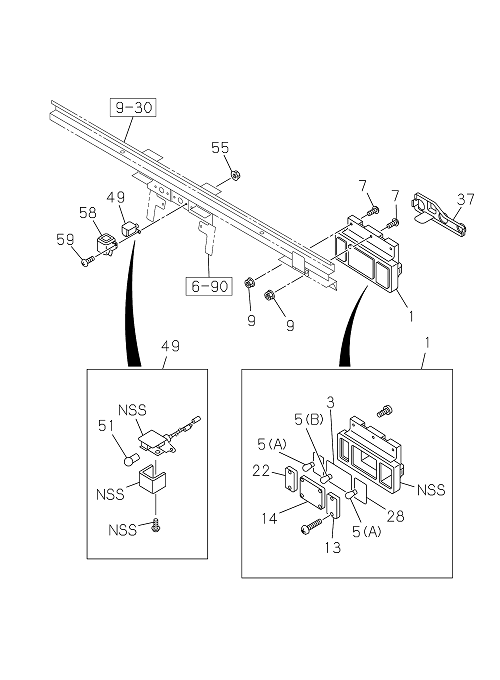

8-03 | LAMP REAR AND REAR SIDE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I8-97696 513-A | BULB RR COMB LAMP | 2 | 2204- | TRAGA | (B) 12V 21W | ||
| 59 | I9-93490 520-0 | SCREW TAP,LICENSE LAMP BODY | 2 | 2204- | TRAGA | M5X20 | ||
| 14 | I8-94178 624-A | LENS TAIL & STOP,RR COMB LAMP | 2 | 2204- | TRAGA | |||
| 5 | I8-97696 514-A | BULB RR COMB LAMP | 4 | 2204- | TRAGA | (A) 12V 21W | ||
| 1 | I8-97487 313-A | LAMP ASM RR COMB | 1 | 2204- | TRAGA | |||
| 3 | I8-97696 504-A | GASKET RR COMB LAMP | 2 | 2204- | TRAGA | |||
| 1 | I8-97487 312-A | LAMP ASM RR COMB | 1 | 2204- | TRAGA | |||
| 13 | I8-94174 638-A | LENS TURN SIGNAL | 2 | 2204- | TRAGA | |||
| 49 | I7-41410 211-A | LAMP LICENSE PLATE | 1 | 2204- | TRAGA | |||
| 58 | I7-41411 211-A | COVER LICENSE PLATE LAMP | 1 | 2204- | TRAGA | |||
| 7 | I8-94402 623-0 | SCREW RR COMB LAMP | 6 | 2204- | TRAGA | M6X20 | ||
| 37 | I8-97520 138-A | COVER RR COMB LAMP | 1 | 2204- | TRAGA | |||
| 9 | I7-55209 109-A | NUT LAMP,RR COMB | 4 | 2204- | TRAGA | M6 FLANGE | ||
| 51 | I8-97696 520-A | BULB LICENSE PLATE LAMP | 1 | 2204- | TRAGA | 12V 10W | ||
| 13 | I8-94174 639-A | LENS TURN SIGNAL | 2 | 2204- | TRAGA | |||
| 22 | I8-94257 512-A | LENS BACKUP,RR COMB LAMP | 2 | 2204- | TRAGA | |||
| 37 | I8-97520 137-A | COVER RR COMB LAMP | 1 | 2204- | TRAGA | |||
| 28 | I8-97696 506-A | GASKET TURN,LAMP | 2 | 2204- | TRAGA | |||
| 7 | I8-94402 623-0 | SCREW RR COMB LAMP | 4 | 2204- | TRAGA | M6X20 | ||
| 55 | I8-94153 039-0 | NUT LICENSE PLATE LAMP | 2 | 2204- | TRAGA | M5 FLANGE |
