8-10 | WIRING HARNESS AND FUSE
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 94 | I8-94422 639-A | DIODE FRAME HARNESS | AR | 2204- | TRAGA | BLACK 2P-1.5A | ||

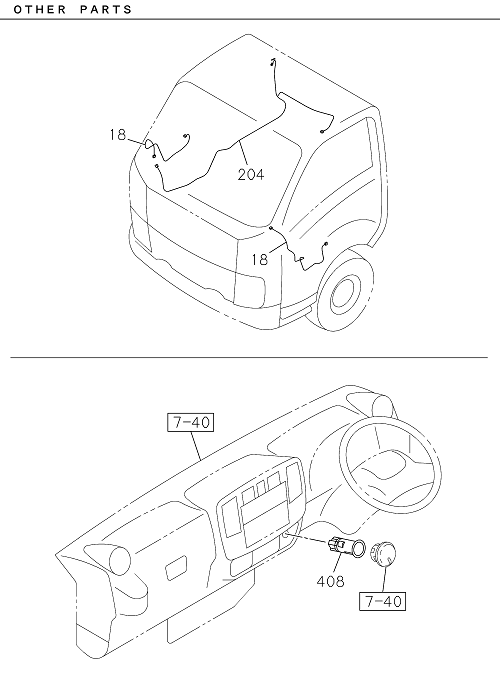

| 408 | I8-98123 115-0 | SOCKET ASM ACCESSORY | 1 | 2204- | TRAGA | |||
| 13 | I8-97696 898-A | HARNESS ENG | 1 | 2204- | TRAGA | |||
| 41 | I8-97103 388-A | PULLER FUSE | 1 | 2204- | TRAGA | |||
| 101 | I8-97543 509-A | BRACKET HARNESS CONNECTOR | 1 | 2204- | TRAGA | |||
| 174 | I8-97183 643-0 | FUSE SLOW BLOW | AR | 2204- | TRAGA | (B) 30A PINK | ||
| 27 | I8-97062 024-A | FUSE UNIT | AR | 2204- | TRAGA | 20A MINI YELLOW | ||
| 184 | I8-97377 741-0 | COVER RELAY & FUSE BOX | 1 | 2204- | TRAGA | |||
| 204 | I8-98353 006-A | HARNESS CABLE,FLOOR | 1 | 2204- | TRAGA | |||
| 5 | I8-97183 643-0 | FUSE FACIA HARNESS | AR | 2204- | TRAGA | 30A PINK | ||
| 27 | I8-97062 022-A | FUSE UNIT | AR | 2204- | TRAGA | 10A MINI RED | ||
| 453 | I8-97062 169-0 | PROTECTOR HARNESS | 1 | 2204- | TRAGA | |||
| 329 | I8-97516 541-A | CABLE ENG TO FRAME | 1 | 2204- | TRAGA | |||
| 35 | I8-98353 561-0 | BOX RELAY & FUSE | 1 | 2204- | TRAGA | |||
| 5 | I8-97062 023-A | FUSE FACIA HARNESS | AR | 2204- | TRAGA | 15A MINI BLUE | ||
| 161 | I0-28051 016-0 | BOLT GROUND,HARNESS | 1 | 2204- | TRAGA | M10X16 FLANGE | ||
| 27 | I8-97062 023-A | FUSE UNIT | AR | 2204- | TRAGA | 15A MINI BLUE | ||
| 18 | I8-98353 012-A | HARNESS DOOR | 1 | 2204- | TRAGA | |||
| 174 | I8-94388 305-1 | FUSE SLOW BLOW | AR | 2204- | TRAGA | (A) 80A BLACK | ||
| 29 | I8-97074 955-A | COVER FUSE BOX | 1 | 2204- | TRAGA | |||
| 174 | I8-97183 645-0 | FUSE SLOW BLOW | AR | 2204- | TRAGA | (B) 50A RED | ||
| 525 | I0-91180 110-0 | NUT CLIP | 1 | 2204- | TRAGA | (B) M10 FLANGE | ||
| 2 | I8-94422 639-A | DIODE CABLE HARNESS | AR | 2204- | TRAGA | BLACK 2P-1.5A | ||
| 28 | I0-72180 516-0 | SCREW FUSE BOX | 2 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 525 | I7-05108 010-A | NUT CLIP | 1 | 2204- | TRAGA | (A) M8 FLANGE | ||
| 5 | I8-97062 022-A | FUSE FACIA HARNESS | AR | 2204- | TRAGA | 10A MINI RED | ||
| 4 | I8-97187 921-A | BOX ASM FUSE,HARNESS | 1 | 2204- | TRAGA | |||
| 174 | I8-97183 644-0 | FUSE SLOW BLOW | AR | 2204- | TRAGA | (B) 40A GREEN | ||

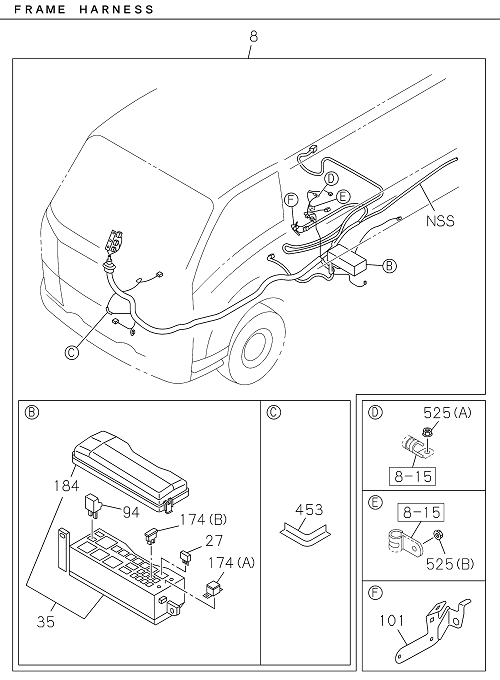

| 8 | I8-97696 806-A | HARNESS FRAME,FRT | 1 | 2204- | TRAGA | |||
| 174 | I8-97219 407-0 | FUSE SLOW BLOW | AR | 2204- | TRAGA | (B) 60A YELLOW | ||
| 18 | I8-98353 011-A | HARNESS DOOR | 1 | 2204- | TRAGA | |||

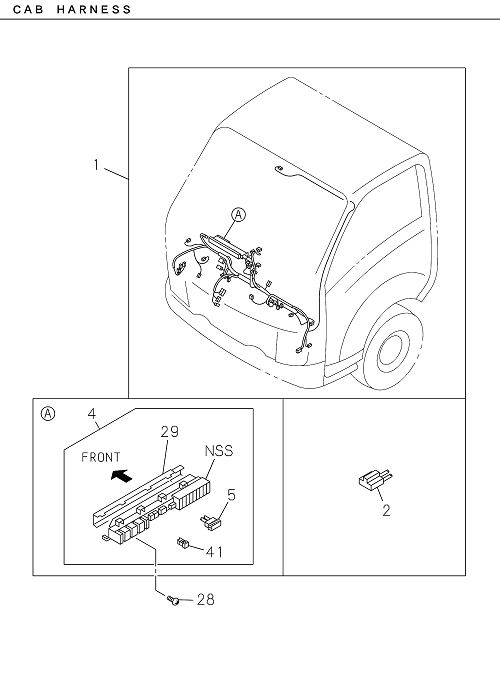

| 1 | I8-97666 135-A | HARNESS CAB | 1 | 2204- | TRAGA |
