8-15 | FIXING PARTS WIRING HARNESS
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

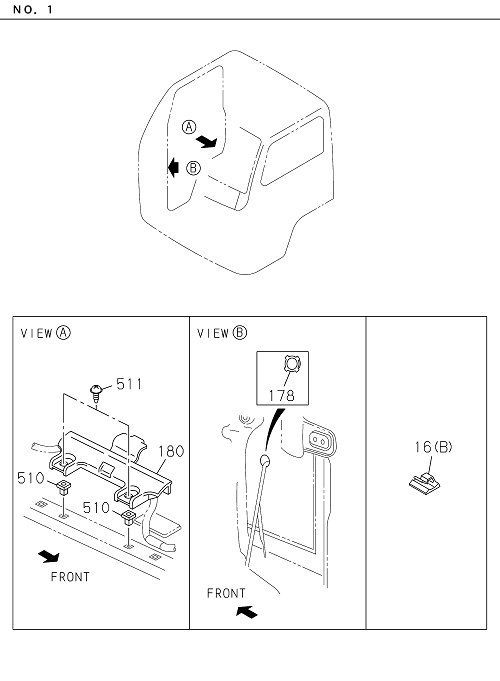

| 180 | I8-97856 130-4 | COVER HARNESS | 1 | 2204- | TRAGA | |||

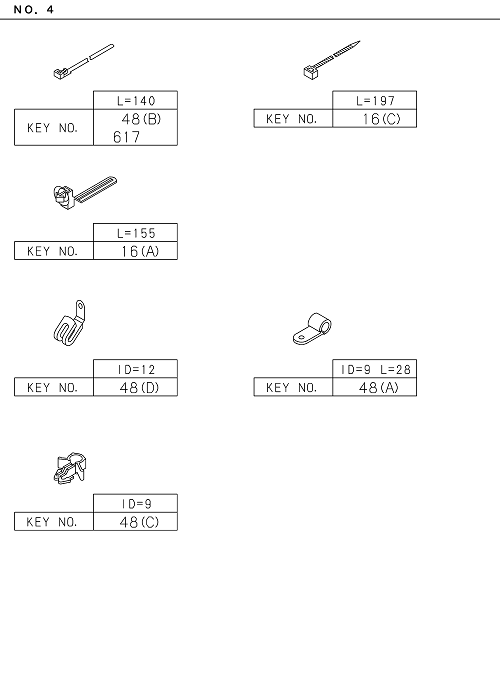

| 16 | I1-09987 214-0 | CLIP HARNESS | 2 | 2204- | TRAGA | (B) 1 SET=5 PIECE | ||
| 16 | I1-83574 032-0 | CLIP HARNESS | 1 | 2204- | TRAGA | (C) L=197 | ||
| 048 | I1-09700 468-1 | CLIP; FRAME HARNESS | 1 | 2204- | TRAGA | (A) ID=9 L=28 | ||
| 48 | I8-97063 874-0 | CLIP FRAME HARNESS | 1 | 2204- | TRAGA | (C) ID=9 | ||
| 016 | I1-09987 214-0 | CLIP; HARNESS | 2 | 2204- | TRAGA | (B) 1 SET=5 PIECE | ||
| 048 | I8-97063 874-0 | CLIP; FRAME HARNESS | 1 | 2204- | TRAGA | (C) ID=9 | ||

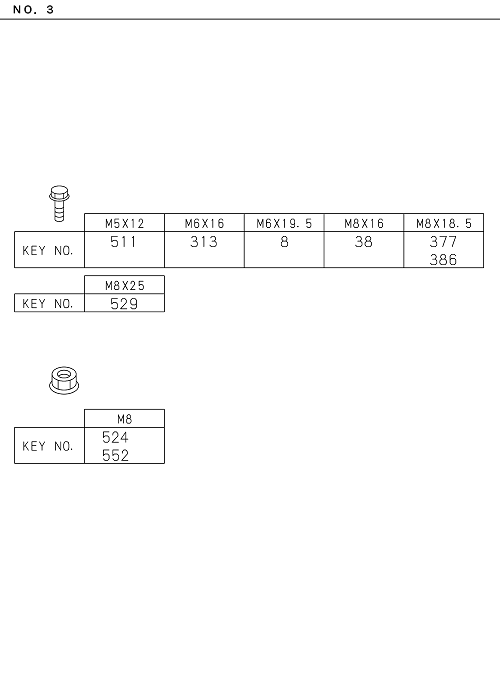

| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 2 | 2204- | TRAGA | M8X18.5 W/PL WASHER | ||
| 178 | I8-94279 735-0 | GROMMET; HARNESS | 2 | 2204- | TRAGA | ID=47 | ||
| 510 | I8-94463 268-A | GROMMET; SCREW | 4 | 2204- | TRAGA | |||
| 552 | I7-05108 010-A | NUT BRKT,HARNESS | 2 | 2204- | TRAGA | M8 FLANGE | ||

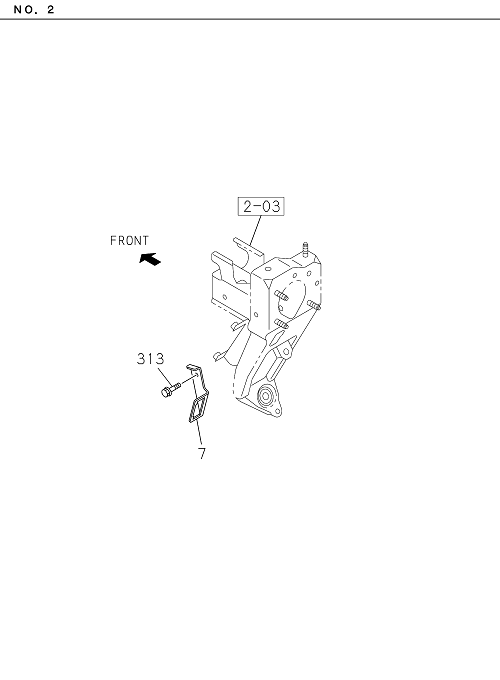

| 313 | I0-28450 616-0 | BOLT; BRKT | 1 | 2204- | TRAGA | M6X16 FLANGE | ||
| 48 | I8-97367 984-1 | CLIP FRAME HARNESS | 1 | 2204- | TRAGA | (D) ID=12 VINYL CHLORIDE | ||
| 38 | I0-28050 816-0 | BOLT CLIP,HARNESS | 7 | 2204- | TRAGA | M8X16 FLANGE | ||
| 529 | I0-28650 825-0 | BOLT RELAY BOX | 3 | 2204- | TRAGA | M8X25 FLANGE | ||
| 524 | I7-05108 010-A | NUT HARNESS | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 8 | I0-28650 620-0 | BOLT BRKT,CONNECTOR | 2 | 2204- | TRAGA | M6X20 FLANGE | ||
| 16 | I8-97173 307-0 | CLIP HARNESS | 2 | 2204- | TRAGA | (A) L=155 | ||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 1 | 2204- | TRAGA | (B) L=140 | ||
| 7 | I8-97673 319-A | BRACKET CONNECTOR | 1 | 2204- | TRAGA | |||
| 511 | I0-72180 512-0 | SCREW HARNESS COVER | 2 | 2204- | TRAGA | T25 M5X12 TAPPING HEXALOBULAR | ||
| 048 | I8-97367 984-1 | CLIP; FRAME HARNESS | 1 | 2204- | TRAGA | (D) ID=12 VINYL CHLORIDE | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 7 | 2204- | TRAGA | M8X16 FLANGE | ||
| 377 | I8-98141 255-0 | BOLT CAB EARTH | 2 | 2204- | TRAGA | M8X18.5 W/PL WASHER | ||
| 48 | I5-09707 031-1 | CLIP FRAME HARNESS | 1 | 2204- | TRAGA | (B) L=140 | ||
| 313 | I0-28450 616-0 | BOLT BRKT | 1 | 2204- | TRAGA | M6X16 FLANGE | ||
| 007 | I8-97673 319-A | BRACKET; CONNECTOR | 1 | 2204- | TRAGA | |||
| 529 | I0-28650 825-0 | BOLT; RELAY BOX | 3 | 2204- | TRAGA | M8X25 FLANGE | ||
| 510 | I8-94463 268-A | GROMMET SCREW | 4 | 2204- | TRAGA | |||
| 178 | I8-94279 735-0 | GROMMET HARNESS | 2 | 2204- | TRAGA | ID=47 | ||
| 386 | I8-98141 255-0 | BOLT GRAND HARNESS | 2 | 2204- | TRAGA | M8X18.5 W/PL WASHER | ||
| 180 | I8-97856 130-4 | COVER; HARNESS | 1 | 2204- | TRAGA | |||
| 008 | I0-28650 620-0 | BOLT; BRKT,CONNECTOR | 2 | 2204- | TRAGA | M6X20 FLANGE | ||
| 511 | I0-72180 512-0 | SCREW; HARNESS COVER | 2 | 2204- | TRAGA | T25 M5X12 TAPPING HEXALOBULAR | ||
| 524 | I7-05108 010-A | NUT; HARNESS | 1 | 2204- | TRAGA | M8 FLANGE | ||
| 617 | I5-09707 031-1 | STRAP BAND | 1 | 2204- | TRAGA | L=140 | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 2 | 2204- | TRAGA | (A) L=155 | ||
| 617 | I5-09707 031-1 | STRAP; BAND | 1 | 2204- | TRAGA | L=140 | ||
| 377 | I8-98141 255-0 | BOLT; CAB EARTH | 2 | 2204- | TRAGA | M8X18.5 W/PL WASHER | ||
| 48 | I1-09700 468-1 | CLIP FRAME HARNESS | 1 | 2204- | TRAGA | (A) ID=9 L=28 | ||
| 016 | I1-83574 032-0 | CLIP; HARNESS | 1 | 2204- | TRAGA | (C) L=197 | ||
| 552 | I7-05108 010-A | NUT; BRKT,HARNESS | 2 | 2204- | TRAGA | M8 FLANGE |
