8-25 | SWITCH AND RELAY INSTRUMENT PANEL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I0-38050 512-0 | SCREW COMB SW | 2 | 2204- | TRAGA | M5X12 | ||
| 527 | I6-97173 037-0 | RELAY TAIL | 1 | 2204- | TRAGA | (IADG) 12V | ||
| 257 | I8-94229 914-1 | COVER HOLE,SW | 1 | 2204- | TRAGA | |||
| 527 | I8-97173 037-1 | RELAY TAIL | 1 | 2204- | TRAGA | 12V | ||

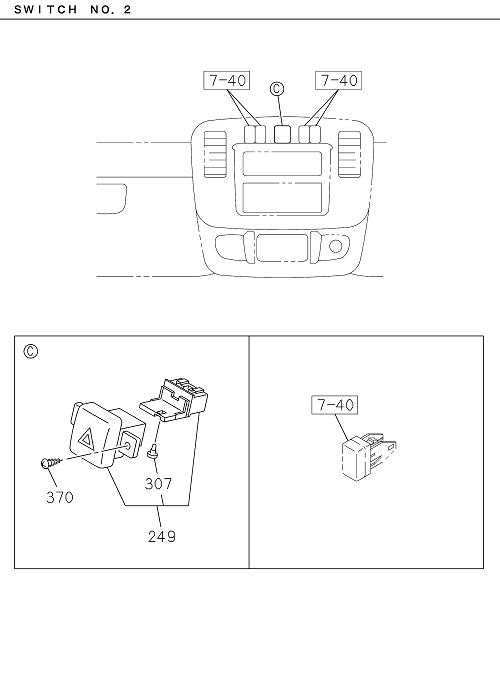

| 249 | I8-98259 433-0 | SWITCH HAZARD | 1 | 2204- | TRAGA | |||
| 482 | I0-38050 512-0 | BOLT BRKT | 3 | 2204- | TRAGA | M5X12 | ||

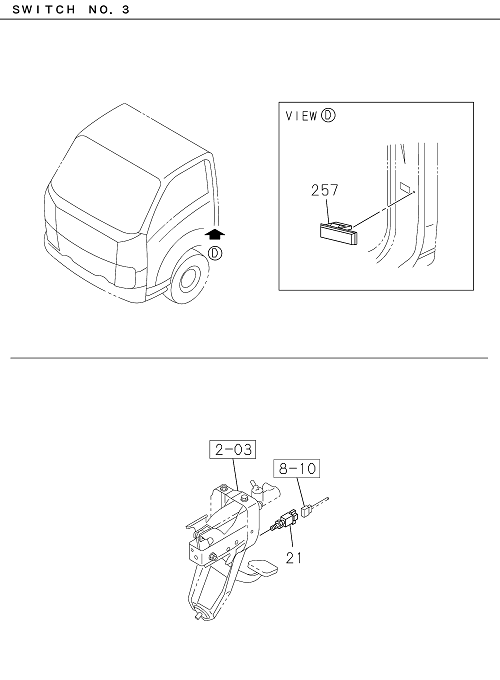

| 21 | I8-97260 603-0 | SWITCH CLU | 1 | 2204- | TRAGA | |||

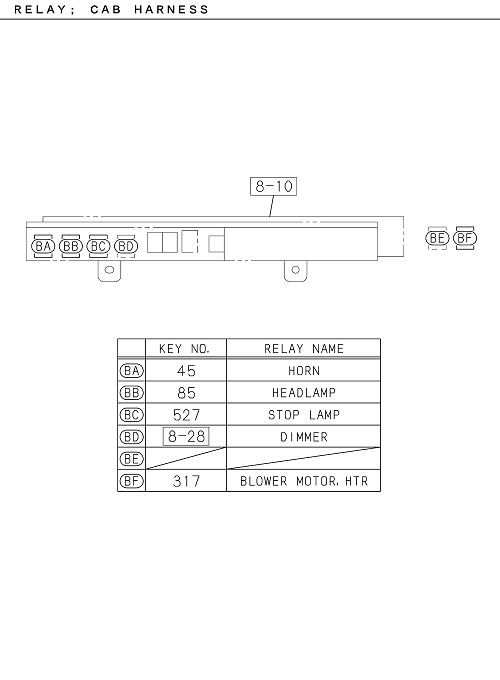

| 317 | I8-97060 926-1 | RELAY BLOWER MOTOR,HTR | 1 | 2204- | TRAGA | 12V 20A | ||
| 505 | I8-98258 824-A | BRACKET SW | 1 | 2204- | TRAGA | |||
| 45 | I8-97173 037-1 | RELAY HORN | 1 | 2204- | TRAGA | 12V | ||
| 370 | I8-98061 856-0 | BOLT SW | 2 | 2204- | TRAGA | M5X14 TAPPING HEXALOBULAR | ||

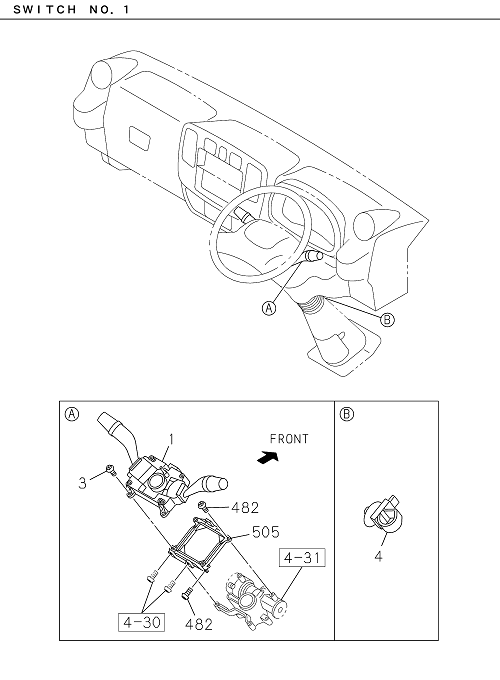

| 1 | I8-98007 705-2 | SWITCH COMB | 1 | 2204- | TRAGA | |||
| 4 | I8-97173 307-0 | CLIP COMB SW | 1 | 2204- | TRAGA | L=155 | ||
| 45 | I6-97173 037-0 | RELAY HORN | 1 | 2204- | TRAGA | (IADG) 12V | ||
| 307 | I8-97352 440-0 | BULB ASM SW | 1 | 2204- | TRAGA | |||
| 85 | I8-97173 037-1 | RELAY HEADLAMP | 1 | 2204- | TRAGA | 12V | ||
| 85 | I6-97173 037-0 | RELAY HEADLAMP | 1 | 2204- | TRAGA | (IADG) 12V |
